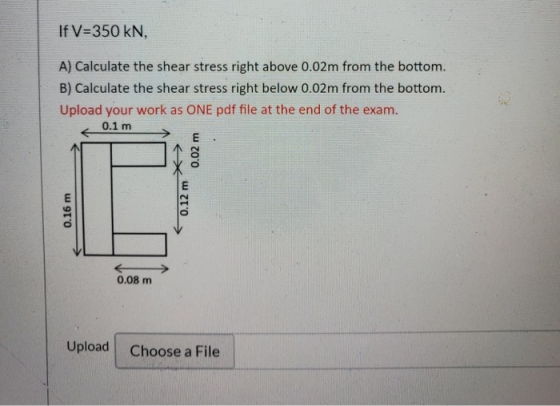

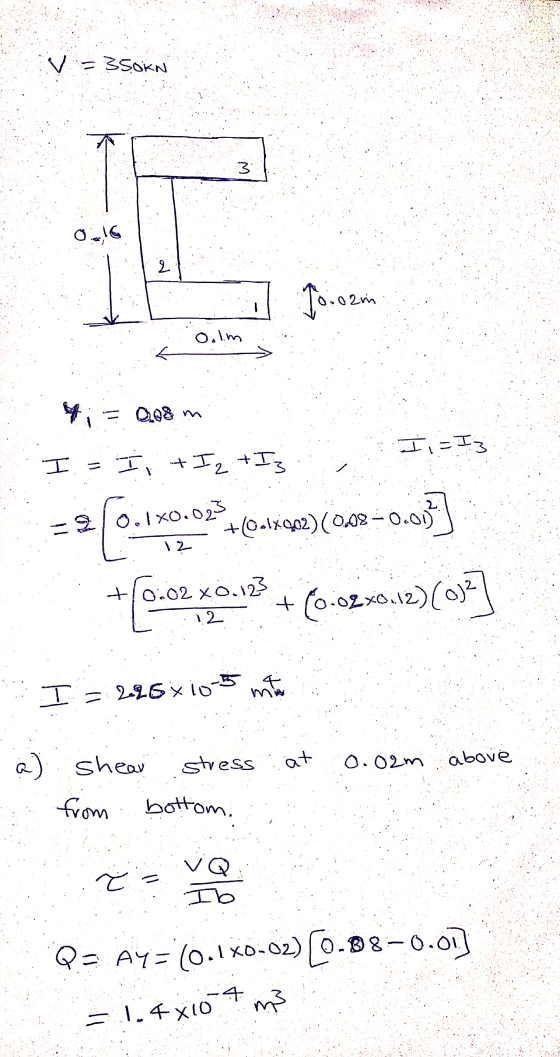

If V=350 KN, A) Calculate the shear stress right above 0.02m from the bottom. B) Calculate...
V = 118 KN A beam with the cross-section shown is carrying a vertical shear force...
V = 118 KN
A beam with the cross-section shown is carrying a vertical shear force of magnitude v. 15mm It has already been calculated that: the neutral plane is 29 mm above the bottom face, and the second moment of area is / = 8.121x107 m (you do not need to re-calculate these values), NP7 29mn 28m mm Isom a) Indicate on the drawing above, where the shear stress () in the beam will be the greatest? b) Calculate...
Calculate: The signpost is made of 350 steel. The bottom of the sign is to be...
Calculate: The signpost is made of 350 steel. The bottom of the sign is to be 4 m above ground level and the top is to be 6 m above ground. It is to be 3 m wide, from the side of the column. The forces acting on the column are as follows: The signs dead weight is 7.2KN 1.5m across the sign, Self-weight of the column, 1.7kPa wind load normal to sign and on column Calculate the following for...
1-Determine the % elongation, yield stress and ultimate tensile strength of the material tested above 2-Calculate...
1-Determine the % elongation, yield stress and ultimate tensile
strength of the material tested above
2-Calculate the elastic modulus of the material tested above
3-If a 200mm cylindrical rod of the material tested above, with
radius 20mm, was subjected to a tensile load of 200kN, what would
the length be?
4-An underground wastewater steel pipe with 2mm walls carries an
ammonia solution of 40 g/m3. The pipe is in contact with
groundwater (assume 0 g/m3 ammonia). Determine the
diffusion rate...
Question 6 15 pts Consider the element below. 50 MPa 10 MPa 20 A) Calculate the...
Question 6 15 pts Consider the element below. 50 MPa 10 MPa 20 A) Calculate the center and radius of Mohr's circle B) Draw Mohr's circle (label axes, specify units, and show the reference point indicating the given state of stress. C) In the circle, show the points that correspond to a state of stress when the element rotates 20deg clockwise (there is no need to calculate values, just show the points. D) Calculate the principal stresses E) Calculate the...
The following results were obtained from an undrained shear box test carried out on a set...
The following results were obtained from an undrained shear box test carried out on a set of undisturbed soil samples. 0.2 0.8 Normal Load (N) Strain (%) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 0 21 46 70 89 107 121 131 136 138 138 137 136 0.4 Shearing force (N) 0 33 72 110 139 164 180 192 201 210 217 224 230 234 237 236 0 45...
The following results were obtained from an undrained shear box test carried out on a set...
The following results were obtained from an undrained shear box test carried out on a set of undisturbed soil samples. 0.2 0.8 Normal Load (N) Strain (%) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 0 21 46 70 89 107 121 131 136 138 138 137 136 0.4 Shearing force (N) 0 33 72 110 139 164 180 192 201 210 217 224 230 234 237 236 0 45...
P8.023 GO Multipart Part 1 A channel shape is used to support the loads shown on the beam. The dimensions of the...
P8.023 GO Multipart Part 1 A channel shape is used to support the loads shown on the beam. The dimensions of the shape are also shown. Assume La-3 ft, Lac-9 ft, P-2000 lb, w 850 Ib/ft, b-14 in., d-10 in., t-0.625 in. Consider the entire 12-ft length of the beam and determine (a) the maximum tension bending stress at any location along the beam, and (b) the maximum compression bending stress at any location along the beam. 14 Break the...
Problem 3: Design Problem On Figure P3a, you have a Common Source (CS) n-channel MOSFET amplifier....
Problem 3: Design Problem On Figure P3a, you have a Common Source (CS) n-channel MOSFET amplifier. Notice the absence of a source resistor Rsig and load resistor R. If we know how the present amplifier (the one on Figure P3a) behaves without Rsig and RL, we can infer its behaviors if Rsig and R were to be added. design the amplifier circuit on Figure P3a, i.e., you have to find appropriate values for RGj You are to RG,, RD, and...
10. + 0/3 points | Previous Answers SerPSET9 12.P.021. My Notes + Ask Your Teacher John...
10. + 0/3 points | Previous Answers SerPSET9 12.P.021. My Notes + Ask Your Teacher John is pushing his daughter Rachel in a wheelbarrow when it is stopped by a brick 8.00 cm high (see the figure below). The handles make an angle of a = 20.0° with the ground. Due to the weight of Rachel and the wheelbarrow, a downward force of 405 N is exerted at the center of the wheel, which has a radius of 15.0 cm....
ADVANCE STUDY ASSIGNMENT: COULOMB'S LAW PURPOSE of tl of this exercise is to become familiar with...
ADVANCE STUDY ASSIGNMENT: COULOMB'S LAW PURPOSE of tl of this exercise is to become familiar with the force between electric point charges which is descrbed by Coulomb's law. In particular, we will investigate the force's inverse-square dependence on separation distance between charges. DISCUSSION A basic characteristic of electric charge is that charges exert forces on each other, like charges positive-positive and negative-negative) repel each other while opposite charges (positive- and constitute a Newton's third-law pair; that is, they are equal...
V = 118 KN
A beam with the cross-section shown is carrying a vertical shear force of magnitude v. 15mm It has already been calculated that: the neutral plane is 29 mm above the bottom face, and the second moment of area is / = 8.121x107 m (you do not need to re-calculate these values), NP7 29mn 28m mm Isom a) Indicate on the drawing above, where the shear stress () in the beam will be the greatest? b) Calculate...
Calculate: The signpost is made of 350 steel. The bottom of the sign is to be 4 m above ground level and the top is to be 6 m above ground. It is to be 3 m wide, from the side of the column. The forces acting on the column are as follows: The signs dead weight is 7.2KN 1.5m across the sign, Self-weight of the column, 1.7kPa wind load normal to sign and on column Calculate the following for...
1-Determine the % elongation, yield stress and ultimate tensile
strength of the material tested above
2-Calculate the elastic modulus of the material tested above
3-If a 200mm cylindrical rod of the material tested above, with
radius 20mm, was subjected to a tensile load of 200kN, what would
the length be?
4-An underground wastewater steel pipe with 2mm walls carries an
ammonia solution of 40 g/m3. The pipe is in contact with
groundwater (assume 0 g/m3 ammonia). Determine the
diffusion rate...
Question 6 15 pts Consider the element below. 50 MPa 10 MPa 20 A) Calculate the center and radius of Mohr's circle B) Draw Mohr's circle (label axes, specify units, and show the reference point indicating the given state of stress. C) In the circle, show the points that correspond to a state of stress when the element rotates 20deg clockwise (there is no need to calculate values, just show the points. D) Calculate the principal stresses E) Calculate the...
The following results were obtained from an undrained shear box test carried out on a set of undisturbed soil samples. 0.2 0.8 Normal Load (N) Strain (%) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 0 21 46 70 89 107 121 131 136 138 138 137 136 0.4 Shearing force (N) 0 33 72 110 139 164 180 192 201 210 217 224 230 234 237 236 0 45...
The following results were obtained from an undrained shear box test carried out on a set of undisturbed soil samples. 0.2 0.8 Normal Load (N) Strain (%) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 0 21 46 70 89 107 121 131 136 138 138 137 136 0.4 Shearing force (N) 0 33 72 110 139 164 180 192 201 210 217 224 230 234 237 236 0 45...
P8.023 GO Multipart Part 1 A channel shape is used to support the loads shown on the beam. The dimensions of the shape are also shown. Assume La-3 ft, Lac-9 ft, P-2000 lb, w 850 Ib/ft, b-14 in., d-10 in., t-0.625 in. Consider the entire 12-ft length of the beam and determine (a) the maximum tension bending stress at any location along the beam, and (b) the maximum compression bending stress at any location along the beam. 14 Break the...
Problem 3: Design Problem On Figure P3a, you have a Common Source (CS) n-channel MOSFET amplifier. Notice the absence of a source resistor Rsig and load resistor R. If we know how the present amplifier (the one on Figure P3a) behaves without Rsig and RL, we can infer its behaviors if Rsig and R were to be added. design the amplifier circuit on Figure P3a, i.e., you have to find appropriate values for RGj You are to RG,, RD, and...
10. + 0/3 points | Previous Answers SerPSET9 12.P.021. My Notes + Ask Your Teacher John is pushing his daughter Rachel in a wheelbarrow when it is stopped by a brick 8.00 cm high (see the figure below). The handles make an angle of a = 20.0° with the ground. Due to the weight of Rachel and the wheelbarrow, a downward force of 405 N is exerted at the center of the wheel, which has a radius of 15.0 cm....
ADVANCE STUDY ASSIGNMENT: COULOMB'S LAW PURPOSE of tl of this exercise is to become familiar with the force between electric point charges which is descrbed by Coulomb's law. In particular, we will investigate the force's inverse-square dependence on separation distance between charges. DISCUSSION A basic characteristic of electric charge is that charges exert forces on each other, like charges positive-positive and negative-negative) repel each other while opposite charges (positive- and constitute a Newton's third-law pair; that is, they are equal...
