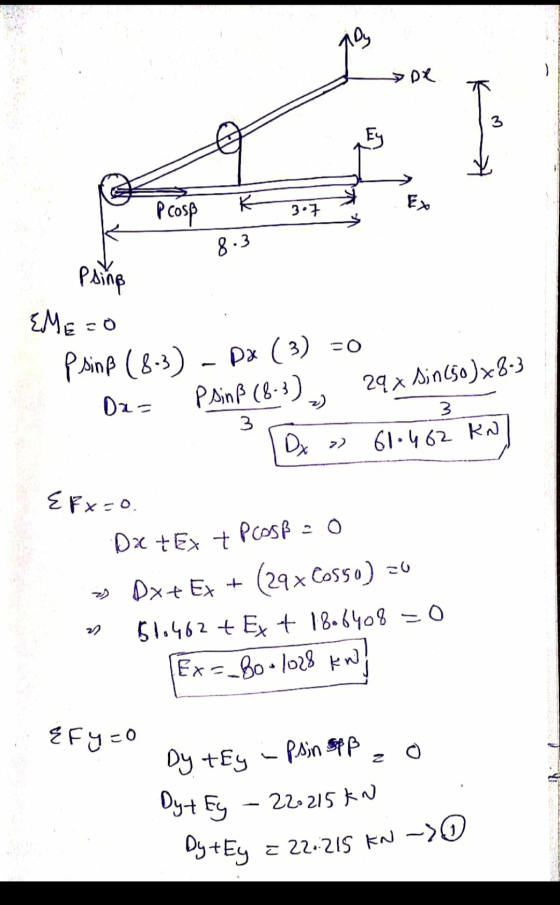

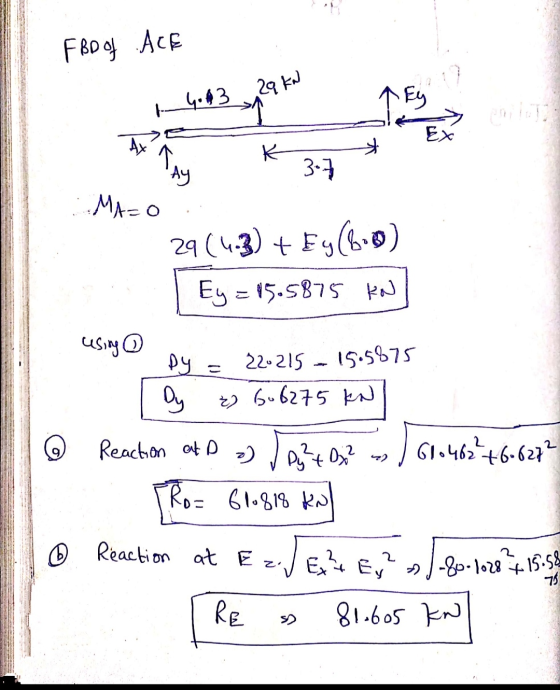

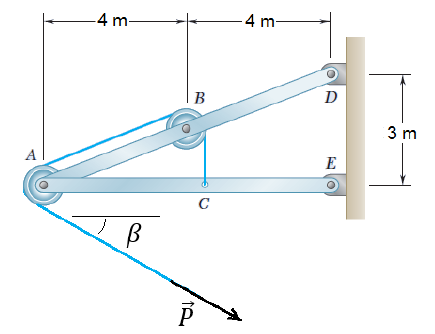

Knowing that each pulley has a radius of 0.3m,
Force
= 29kN
Angle= 50°
using torque method determine:
a) The reaction force
in D.
b) The reaction force
in E
Homework Answers
Add Answer to:
Knowing that each pulley has a radius of 0.3m,
Force
= 29kN
Angle= 50°
using torque...
Knowing that each pulley has a radius of 0.3m, Force = 29kN Angle= 50° using torque...
Knowing that each pulley has a radius of 0.3m,
Force
= 29kN
Angle= 50°
using torque method determine:
a) The reaction force
in D.
b) The reaction force
in E.
We were unable to transcribe this image-4 m -4 m B D 3 m E с B P We were unable to transcribe this imageE
(Solve 7.20) Knowing that the radius of each pulley is 200mm and neglecting friction, determine the...
(Solve 7.20) Knowing that the radius of each pulley is 200mm and
neglecting friction, determine the internal forces at point K of
the frame shown.
E m D -6.75 in. 12 in. Fig. P7.17 1.8 m 7.18 For the frame of Prob. 7.17, determine the magnitude and location of the maximum bending moment in member BC. A 7.19 Knowing that the radius of each pulley is 200 mm and neglecting friction, determine the internal forces at point J of the...
A pulley is set up in the following fashion on an incline surface. The incline surface...
A pulley is set up in the following fashion on an incline
surface. The incline surface has a static coefficient
s and kinetic
k. m2 moves downhill when the pulley is
free.
The pulley has a moment of inertia,
and a mass M.
a. Find angular acceleration
b. Find the tension.
c. Find the reaction forces at the pulley
We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageT M R...
A pulley is set up on an incline surface. The incline surface has a static coefficient...
A pulley is set up on an incline surface. The incline surface
has a static coefficient
s and kinetic
k. m2 moves downhill when the pulley is
free.
The pulley has a moment of inertia I =
and a mass M.
a. Find angular acceleration of the pulley.
b. Find the tension resulting from the two masses in the
string.
c. Find the reaction forces at the pulley
We were unable to transcribe this imageWe were unable to transcribe this...
(10%) Problem 9: When using a pencil eraser, you exert a downward force of 4.5 N at a distance of 2.3 cm fro...
(10%)
Problem 9: When using a pencil
eraser, you exert a downward force of 4.5 N at a distance
of 2.3 cm from the hardwood-eraser joint. The pencil has a
2.4 mm radius and is held at an angle of 19° to
the horizontal. The shear modulus of wood is 1.00 × 1010
N/m2 and the strain modulus is 1.50 × 1010
N/m2.
Randomized Variablesf = 4.5
N
d = 2.3 cm
r = 2.4 mm
θ = 19 °...
Suppose you exert a force of 180 N tangential to the outer edge of a 1.44-m...
Suppose you exert a force
of 180 N tangential to the outer edge of a 1.44-m radius 73.5-kg
grindstone (which is a solid disk).
Part (a) What is the torque
τ, in newton meters, you are exerting on the grindstone,
relative to the center of mass of the grindstone?
Part (b) What is the angular acceleration of the
grindstone α0, in radians per square second,
assuming negligible friction?
Part
(c) What is the angular acceleration of the grindstone
αf, in...
Create a Matlab code using ode45 function to solve the following two equations of a pendulum: m+M)x'' - ml'' cos + ml'' sin = F -x'' cos + l'' - g sin = 0 Force...
Create a Matlab code using ode45 function to solve the following two equations of a pendulum: m+M)x'' - ml'' cos + ml'' sin = F -x'' cos + l'' - g sin = 0 Force = 10N 5kg pendulum initial angle = 30 We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageWe...
A particle moves through an xyz coordinate system while a force acts on the particle. When...
A particle moves through an xyz coordinate system while a force
acts on the particle. When the particle has the position vector
r
= (2.00 m) - (3.00 m) + (2.00 m) , the force is F
= Fx + (7.00 N) - (6.00 N) , and the corresponding torque about the
origin is T
= (4.00 N·m) + (10.0 N·m) + (11.0 N·m) . Determine Fx.
We were unable to transcribe this imageWe were unable to transcribe this imageWe...
Calculate the torque (magnitude and direction) about point O due to the force F⃗ in each of...
Calculate the torque (magnitude and direction) about point O due
to the force F⃗ in each of the cases sketched in the
figure (Figure 1). In each case, the force F⃗ and the
rod both lie in the plane of the page, the rod has length 4.00 m,
and the force has magnitude 16.0 N .
We were unable to transcribe this imageConstants Part C Calculate the torque (magnitude and direction) about point O due to the force F in each of...
A charge configuration with two charges of opposite sign but the same magnitude, q, and a...
A charge configuration with two
charges of opposite sign but the same magnitude, q, and a
separation distance, d, is called an electric dipole. The
electric dipole moment, or EDM, is a vector, p,
with a magnitude p = qd and a direction from the
negative charge towards the positive charge. When such a dipole is
placed in a region of electric field, it will experience a torque
which depends upon the angle, θ, between the directions of the EDM,...
Knowing that each pulley has a radius of 0.3m,
Force
= 29kN
Angle= 50°
using torque method determine:
a) The reaction force
in D.
b) The reaction force
in E.
We were unable to transcribe this image-4 m -4 m B D 3 m E с B P We were unable to transcribe this imageE
(Solve 7.20) Knowing that the radius of each pulley is 200mm and
neglecting friction, determine the internal forces at point K of
the frame shown.
E m D -6.75 in. 12 in. Fig. P7.17 1.8 m 7.18 For the frame of Prob. 7.17, determine the magnitude and location of the maximum bending moment in member BC. A 7.19 Knowing that the radius of each pulley is 200 mm and neglecting friction, determine the internal forces at point J of the...
A pulley is set up in the following fashion on an incline
surface. The incline surface has a static coefficient
s and kinetic
k. m2 moves downhill when the pulley is
free.
The pulley has a moment of inertia,
and a mass M.
a. Find angular acceleration
b. Find the tension.
c. Find the reaction forces at the pulley
We were unable to transcribe this imageWe were unable to transcribe this imageWe were unable to transcribe this imageT M R...
A pulley is set up on an incline surface. The incline surface
has a static coefficient
s and kinetic
k. m2 moves downhill when the pulley is
free.
The pulley has a moment of inertia I =
and a mass M.
a. Find angular acceleration of the pulley.
b. Find the tension resulting from the two masses in the
string.
c. Find the reaction forces at the pulley
We were unable to transcribe this imageWe were unable to transcribe this...
(10%)
Problem 9: When using a pencil
eraser, you exert a downward force of 4.5 N at a distance
of 2.3 cm from the hardwood-eraser joint. The pencil has a
2.4 mm radius and is held at an angle of 19° to
the horizontal. The shear modulus of wood is 1.00 × 1010
N/m2 and the strain modulus is 1.50 × 1010
N/m2.
Randomized Variablesf = 4.5
N
d = 2.3 cm
r = 2.4 mm
θ = 19 °...
Suppose you exert a force
of 180 N tangential to the outer edge of a 1.44-m radius 73.5-kg
grindstone (which is a solid disk).
Part (a) What is the torque
τ, in newton meters, you are exerting on the grindstone,
relative to the center of mass of the grindstone?
Part (b) What is the angular acceleration of the
grindstone α0, in radians per square second,
assuming negligible friction?
Part
(c) What is the angular acceleration of the grindstone
αf, in...
A particle moves through an xyz coordinate system while a force
acts on the particle. When the particle has the position vector
r
= (2.00 m) - (3.00 m) + (2.00 m) , the force is F
= Fx + (7.00 N) - (6.00 N) , and the corresponding torque about the
origin is T
= (4.00 N·m) + (10.0 N·m) + (11.0 N·m) . Determine Fx.
We were unable to transcribe this imageWe were unable to transcribe this imageWe...
Calculate the torque (magnitude and direction) about point O due
to the force F⃗ in each of the cases sketched in the
figure (Figure 1). In each case, the force F⃗ and the
rod both lie in the plane of the page, the rod has length 4.00 m,
and the force has magnitude 16.0 N .
We were unable to transcribe this imageConstants Part C Calculate the torque (magnitude and direction) about point O due to the force F in each of...
A charge configuration with two
charges of opposite sign but the same magnitude, q, and a
separation distance, d, is called an electric dipole. The
electric dipole moment, or EDM, is a vector, p,
with a magnitude p = qd and a direction from the
negative charge towards the positive charge. When such a dipole is
placed in a region of electric field, it will experience a torque
which depends upon the angle, θ, between the directions of the EDM,...
