Şekilde gösterilen krank-biyel mekanizmasında piston ile silindir arasındaki sürtünme ihmal edilmiştir. Verilen krank pozisyonunda statik dengede olabilmesi için gerekli M12 torkunu bulunuz. (O2A = 75 mm, AB = 350 mm, P=0.9 kN)

Dear student,
Inorder to find M12, we need to apply condition of equillibrium for
each joints.

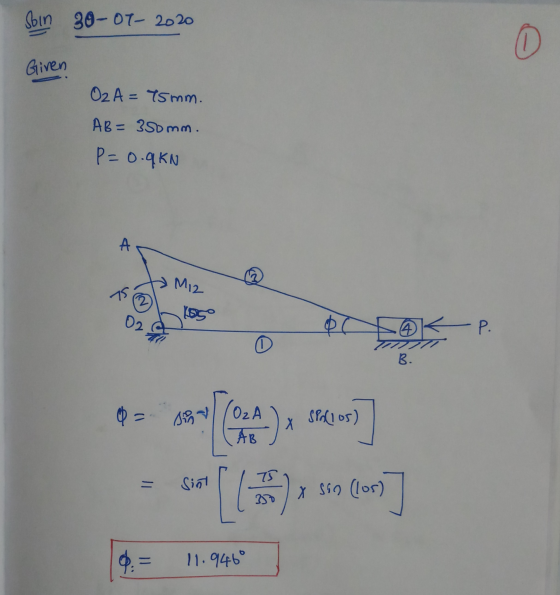

Before this we should calculate angle
, using trignomentric relations.

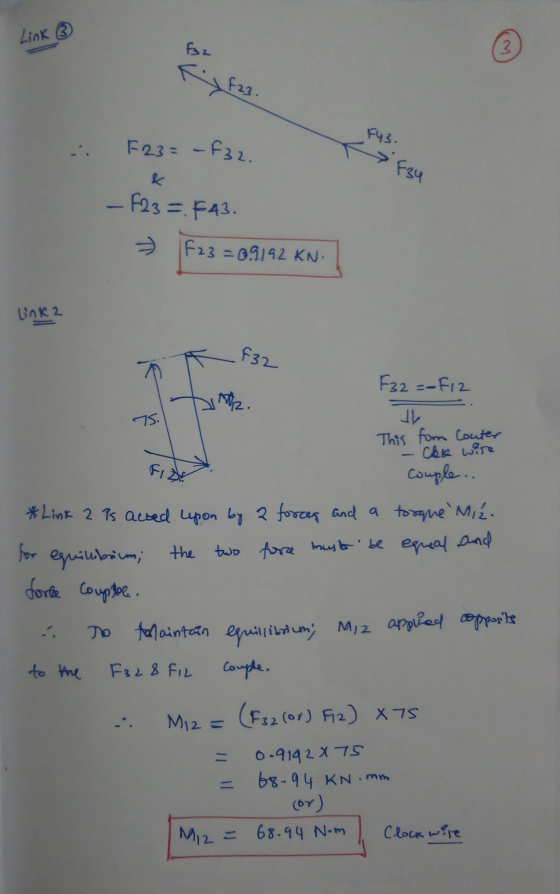

Numerical solved below,



Please do comment, if any questions. Rate answer & Thank you.
Şekilde gösterilen krank-biyel mekanizmasında piston ile silindir arasındaki sürtünme ihmal edilmiştir. Verilen krank pozisyonunda statik dengede...
The only limb shown in Figure 2
a) Draw the free body diagram. (25p)
b) Find dynamic balance equations.
QUESTION 1 In the crank-connecting rod mechanism shown in Figure 1,
friction between the piston and the cylinder is neglected. Find the
M12 torque required for the static balance = to be at the given
crank position. (O2A = 75 mm, AB = 350 mm, P-0.9 kN)
SORU 2 Şekil 2 'de gösterilen tek uzvun a) Serbest cisim diyagramını çiziniz. (25P)...
In the crank-connecting rod mechanism shown in the figure, the
friction between the piston and the cylinder is neglected. Find the
M 12 torque required to be in static equilibrium at the given crank
position. (O2A = 75 mm, AB = 350 mm, P = 0.9 kN)
A M12 1050 P B
