For the cam mechanism the following its true,
LOW DWELL in 45°
Elevation of 5 mm in 135°
HIGH DWELL in 45°
Fall of 5 mm en 135°
If the Base radius is
34mm , how much is L2 in mm if
=209 degrees
Homework Answers

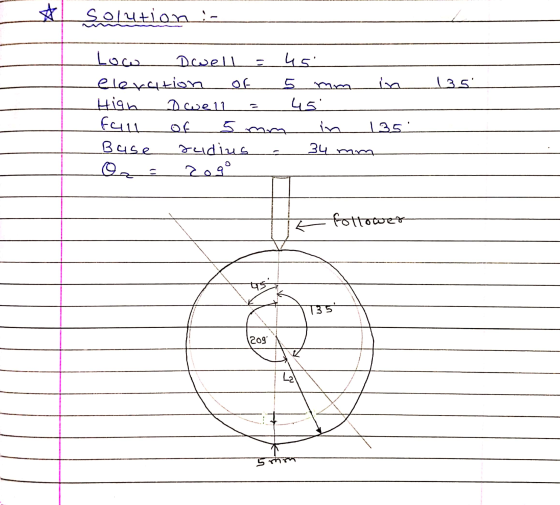

Solution :

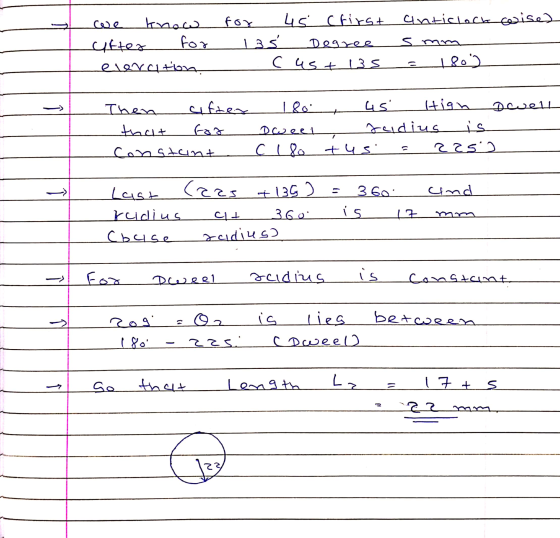

L2 = 22 mm
Thanks
Plz UPVOTE
Add Answer to:
For the cam mechanism
the following its true,
LOW DWELL
in 45°
Elevation of
...
For the cam mechanism the following its true, LOW DWELL in 45° Elevation of ...
For the cam mechanism the following its true,
LOW DWELL in 45°
Elevation of 5 mm in 135°
HIGH DWELL in 45°
Fall of 5 mm en 135°
If the Base radius is 34mm , how much is L2 in mm if
=209 degress

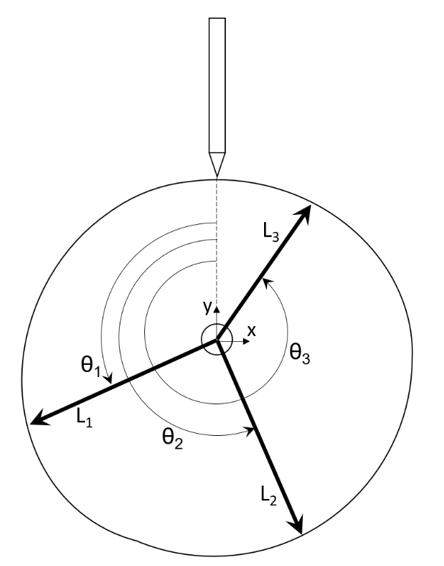

Ꮎ2 L₃ х 03 01 41 02 L
For the cam mechanism the following is true LOW DWELL in 45° Elevation 3 mm...
For the cam mechanism
the following is true
LOW DWELL in 45°
Elevation 3 mm in 135°
HIGH DWELL in
45°
Fall 3 mm in 135°
if the base radius is
16mm what is the coordinate RX1 in mm of the cam if
= 71 degrees, use all decimals, the follower is the knife edge
type.
Ꮎ1 L₃ х 03 01 41 02 L
For the cam mechanism the following is true LOW DWELL in 45° Elevation 3 mm...
For the cam mechanism the following is true
LOW DWELL in 45°
Elevation 3 mm in 135°
HIGH DWELL in
45°
Fall 3 mm in 135°
if the base radius is 16mm what is the coordinate RX1 in mm of
the cam if
= 71 degrees, use all decimals, the follower is the knife edge
type.
For the cam-follower type mechanism in the figure, the movement program is as follows: LOW DWELL...
For the cam-follower type mechanism in the figure, the
movement program is as follows:
LOW DWELL (Rest or Stop) for 45 °
Elevation 5mm at 135 °
HIGH DWELL (rest or stop) for 45 °
Drop or drop 5mm by 135 °
If the base radius is 21 mm, how much is L2 in mm if θ2 = 221
degrees?
Para el mecanismo del tipo leva-seguidor en la figura, el programa de movimiento es como sigue: • LOW DWELL (Descanso...
For the cam-follower type mechanism in the figure, the movement program is as follows: LOW DWELL...
For the cam-follower type mechanism in the figure, the movement program is as follows:
LOW DWELL (Rest or Stop) for 45 °
Elevation 4mm at 135 °
HIGH DWELL (Rest or stop) for 45 °
Drop or drop 4mm at 135 °
If the base radius is 27 mm, how much is L2 in mm if θ2 = 201 degrees?
وا YA Х 03 ON O2 L2
For the cam-follower mechanism in the figure, the cycloidal movement program is shown below: LOW DWELL...
For the cam-follower mechanism in the figure, the cycloidal movement program is shown below:
LOW DWELL (Rest or Stop) for 45 °
3 mm rise at 135 °
HIGH DWELL (Rest or stop) for 45 °
Drop or drop 3mm at 135 °
If the base radius is 21 mm, what is the coordinate RX1 in mm of the cam profile if θ1 = 153 degrees? Use as many decimal places as you can. The follower is of the wedge...
Para el mecanismo leva-seguidor en la figura, el programa de movimiento cicloidal se muestra a continuacion:...
Para el mecanismo leva-seguidor en la figura, el programa de movimiento cicloidal se muestra a continuacion: • LOW DWELL (Descanso o detención) durante 45° • Elevación 2 mm en 135° • HIGH DWELL (Descanso o detencion) durante 45° • Caida o descenso 2 mm en 135° Si el radio base es 24 mm, cual es la coordenada RX1 en mm del perfil de la leva si 01=126 grados? Usa la mayor cantidad de decimales que puedas. El seguidores del tipo...
For the cam mechanism the following its true,
LOW DWELL in 45°
Elevation of 5 mm in 135°
HIGH DWELL in 45°
Fall of 5 mm en 135°
If the Base radius is 34mm , how much is L2 in mm if
=209 degress
Ꮎ2 L₃ х 03 01 41 02 L
For the cam mechanism
the following is true
LOW DWELL in 45°
Elevation 3 mm in 135°
HIGH DWELL in
45°
Fall 3 mm in 135°
if the base radius is
16mm what is the coordinate RX1 in mm of the cam if
= 71 degrees, use all decimals, the follower is the knife edge
type.
Ꮎ1 L₃ х 03 01 41 02 L
For the cam mechanism the following is true
LOW DWELL in 45°
Elevation 3 mm in 135°
HIGH DWELL in
45°
Fall 3 mm in 135°
if the base radius is 16mm what is the coordinate RX1 in mm of
the cam if
= 71 degrees, use all decimals, the follower is the knife edge
type.
For the cam-follower type mechanism in the figure, the
movement program is as follows:
LOW DWELL (Rest or Stop) for 45 °
Elevation 5mm at 135 °
HIGH DWELL (rest or stop) for 45 °
Drop or drop 5mm by 135 °
If the base radius is 21 mm, how much is L2 in mm if θ2 = 221
degrees?
Para el mecanismo del tipo leva-seguidor en la figura, el programa de movimiento es como sigue: • LOW DWELL (Descanso...
For the cam-follower type mechanism in the figure, the movement program is as follows:
LOW DWELL (Rest or Stop) for 45 °
Elevation 4mm at 135 °
HIGH DWELL (Rest or stop) for 45 °
Drop or drop 4mm at 135 °
If the base radius is 27 mm, how much is L2 in mm if θ2 = 201 degrees?
وا YA Х 03 ON O2 L2
For the cam-follower mechanism in the figure, the cycloidal movement program is shown below:
LOW DWELL (Rest or Stop) for 45 °
3 mm rise at 135 °
HIGH DWELL (Rest or stop) for 45 °
Drop or drop 3mm at 135 °
If the base radius is 21 mm, what is the coordinate RX1 in mm of the cam profile if θ1 = 153 degrees? Use as many decimal places as you can. The follower is of the wedge...
Para el mecanismo leva-seguidor en la figura, el programa de movimiento cicloidal se muestra a continuacion: • LOW DWELL (Descanso o detención) durante 45° • Elevación 2 mm en 135° • HIGH DWELL (Descanso o detencion) durante 45° • Caida o descenso 2 mm en 135° Si el radio base es 24 mm, cual es la coordenada RX1 en mm del perfil de la leva si 01=126 grados? Usa la mayor cantidad de decimales que puedas. El seguidores del tipo...
