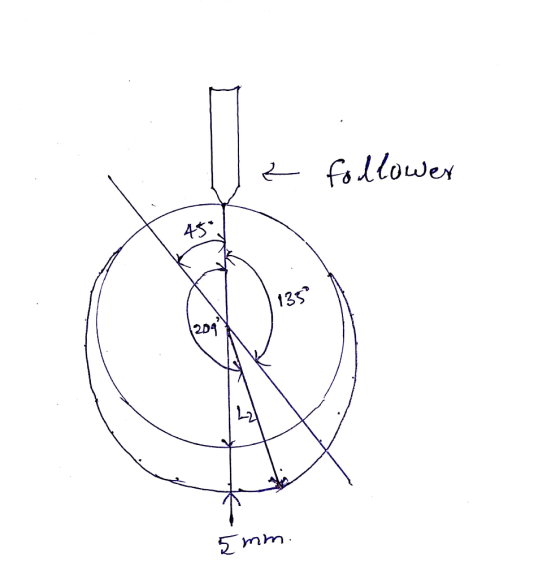

For the cam mechanism the following its true,
LOW DWELL in 45°
Elevation of 5 mm in 135°
HIGH DWELL in 45°
Fall of 5 mm en 135°
If the Base radius is 34mm , how much is L2 in mm if
=209 degress

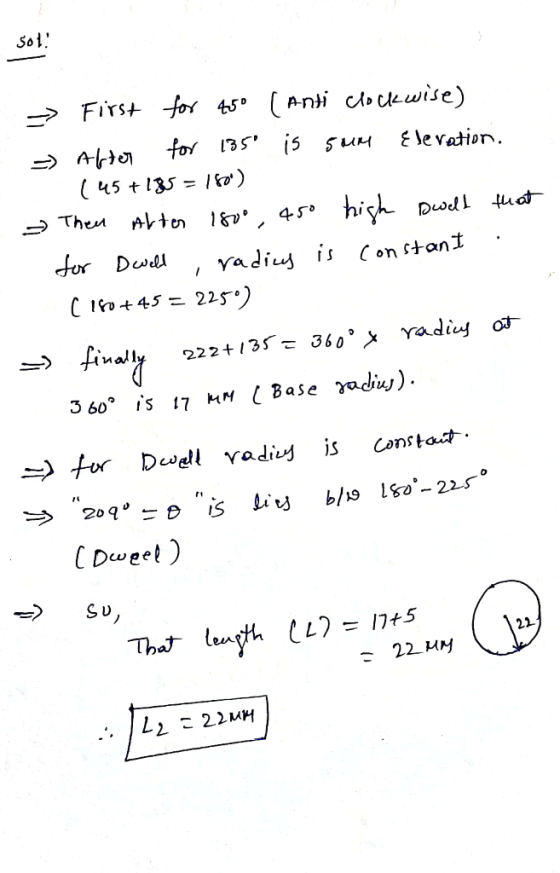

Homework Answers
Add Answer to:
For the cam mechanism the following its true,
LOW DWELL in 45°
Elevation of ...
For the cam mechanism the following its true, LOW DWELL in 45° Elevation of ...
For the cam mechanism
the following its true,
LOW DWELL
in 45°
Elevation of
5 mm in 135°
HIGH DWELL in
45°
Fall of 5
mm en 135°
If the Base radius is
34mm , how much is L2 in mm if
=209 degrees

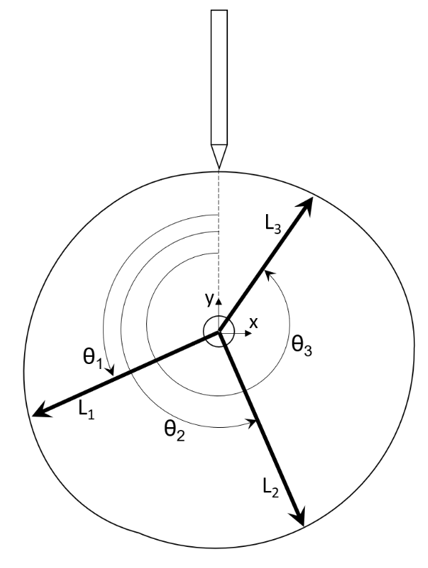

Ꮎ2 L3 х 03 0 L1 02 L2
