Please answer quickly. I will upvote. Thank you! 50 lb/ft 200 lb-ft A B- (6) For...

Question

Question

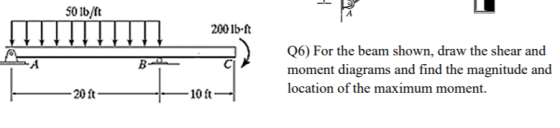

50 lb/ft 200 lb-ft A B- (6) For the beam shown, draw the shear and moment diagrams and find the magnitude and location of the

Please answer quickly. I will upvote. Thank you!

engineering Mechanical-Engineering

Answer 1

Answer #1

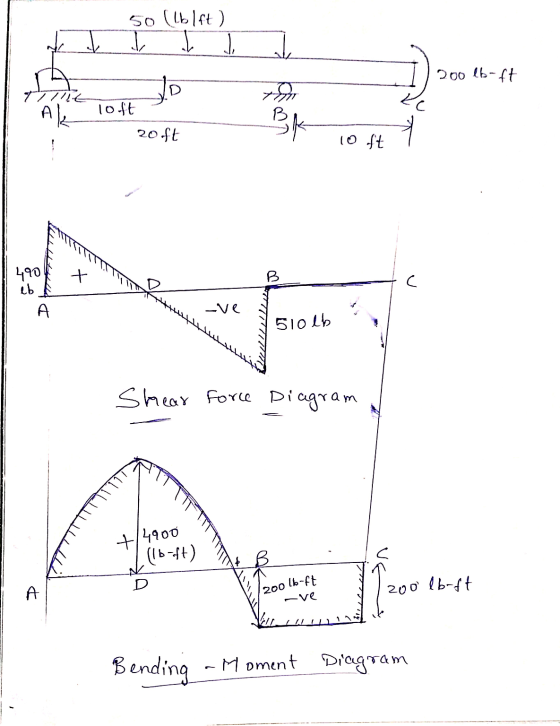

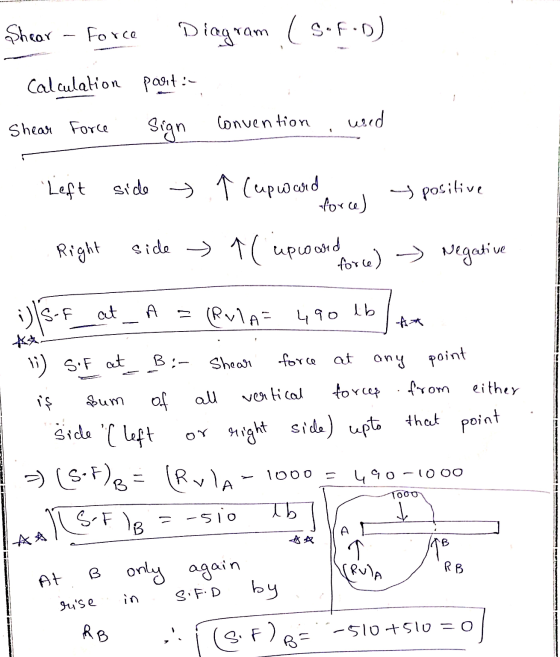

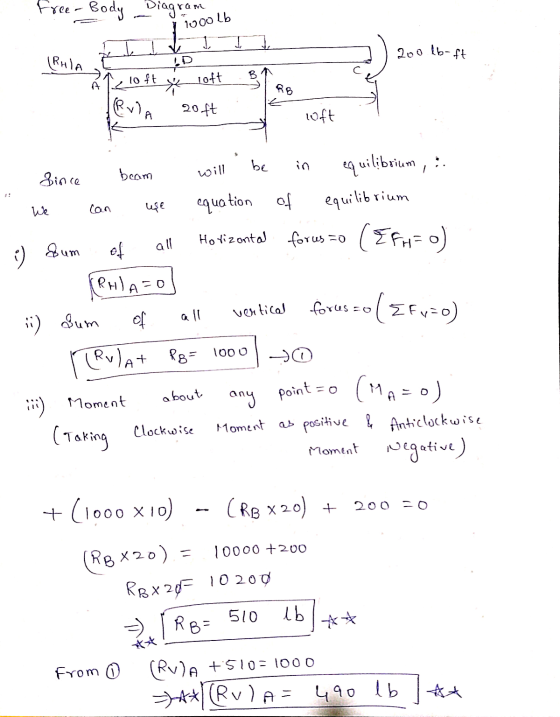

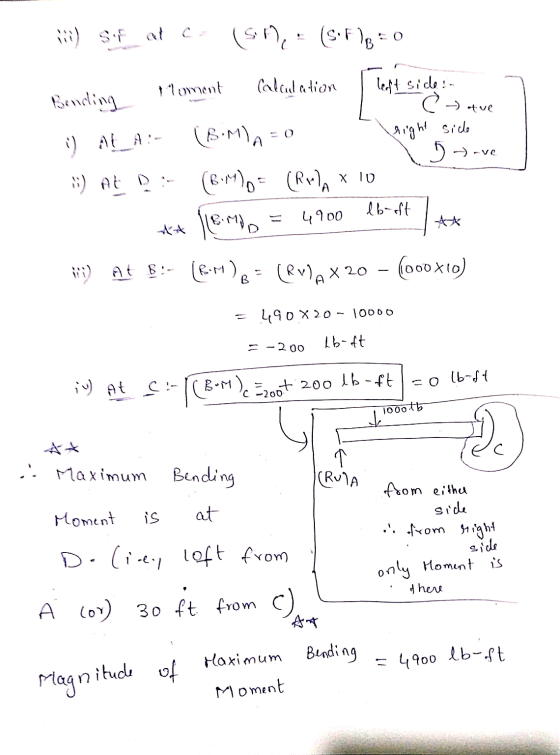

Ans)The first thing to do for any problem related to Shear Force and Bending Moment diagram is to find out the Reaction Forces.

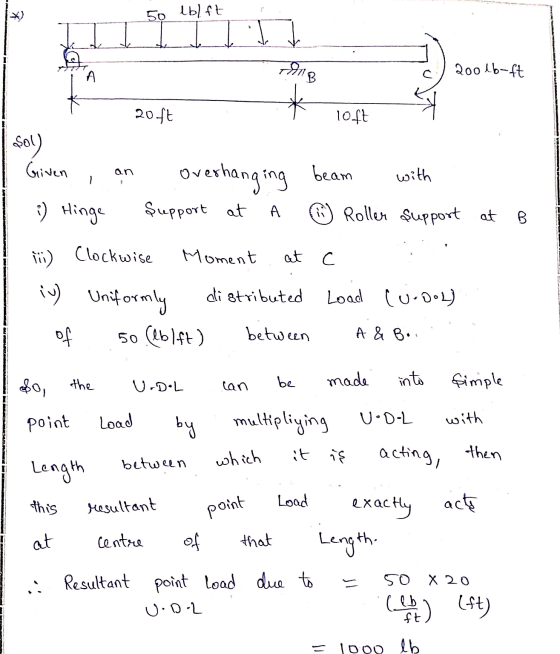

So we have a

1)Hinge support at A due to which a horizontal and vertical reaction force is developed.

2)Roller support at B due to which vertical reaction force is developed.

Answer 2
