Green light (2 = 552 nm) strikes a single slit at normal incidence. Part A What...

Question

Question

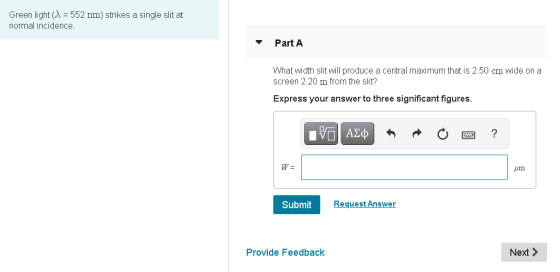

Green light (2 = 552 nm) strikes a single slit at normal incidence. Part A What width slit will produce a central maximum tha

science physics

Answer 1

Answer #1

tano = w 2D La 2.5 2 X 2.2 Q: 29.6 - ma asino a sin 29.6:1 x 552 a 117. unm do please like a= 1.uzum m

Answer 2

Similar Homework Help Questions

Item 3.11 Green light (λ = 566 nm) strikes a single slit at normal incidence. Part...

Item 3.11 Green light (λ = 566 nm) strikes a single slit at normal incidence. Part A What width slit will produce a central maximum that is 3.00 cm wide on a screen 2.00 m from the slit? Express your answer to three significant figures. (Unit for answer is μm ) (Find W)
Green light (λ = 551 nm ) strikes a single slit at normal incidence. What width slit will produce...

Green light (λ = 551 nm ) strikes a single slit at normal incidence. What width slit will produce a central maximum that is 2.50 cm wide on a screen 1.80 m from the slit?
Green light (? = 546 nm ) strikes a single slit at normal incidence. What width...

Green light (? = 546 nm ) strikes a single slit at normal incidence. What width slit will produce a central maximum that is 2.30 cm wide on a screen 1.80 m from the slit?

A single slit 1.2 mm wide is illuminated by 420-nm light. Part A What is the...

A single slit 1.2 mm wide is illuminated by 420-nm light. Part A What is the width of the central maximum (in cm ) in the diffraction pattern on a screen 7.0 m away? Express your answer using two significant figures.
Light that has a wavelength of 530 nm is incident on a single slit that is...

Light that has a wavelength of 530 nm is incident on a single slit that is 25.0 um wide. 1) Determine the angular location of the first dark fringe that is formed on a screen behind the slit. (Express your answer to three significant figures.) Submit 2) Determine the angular location of the second dark fringe that is formed on a screen behind the slit. (Express your answer to three significant figures.) Submit 3) Determine the angular location of the...
When blue light (1 = 500 nm) is incident on a single slit, the central bright...

When blue light (1 = 500 nm) is incident on a single slit, the central bright spot has a width of 8.37 cm. 1) If the screen is 3.15 m distant from the slit, calculate the slit width. (Express your answer to three significant figures.) lum Submit

A 0.56-mm-wide slit is illuminated by light of wavelength 640 nm . Part A What is...

A 0.56-mm-wide slit is illuminated by light of wavelength 640 nm . Part A What is the width (in mm) of the central maximum on a screen 2.0 m behind the slit? Express your answer using two significant figures.
Monochromatic light strikes a diffraction grating at normal incidence before illuminating a screen 2.50 m away....

Monochromatic light strikes a diffraction grating at normal incidence before illuminating a screen 2.50 m away. Part A If the first-order maxima are separated by 1.53 m on the screen, what is the distance between the two second-order maxima? Express your answer to three significant figures. ΑΣΦ ? y2 = 3.36 m Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining
Light of wavelength 740 nm passes through a slit 1.0 μm wide and a single-slit diffraction...

Light of wavelength 740 nm passes through a slit 1.0 μm wide and a single-slit diffraction pattern is formed vertically on a screen 28 cm away. PART A Determine the light intensity I 14 cm above the central maximum, expressed as a fraction of the central maximum's intensity I0. Constants Periodic Table Part A Light of wavelength 740 nm passes through a slit 1.0 μm wide and a single-slit ditfraction pattern is formed vertical ly on a screen 28 cm...

A 0.42-mm-wide slit is illuminated by light of wavelength 540 nm . What is the width...

A 0.42-mm-wide slit is illuminated by light of wavelength 540 nm . What is the width (in mm) of the central maximum on a screen 1.6 m behind the slit? Express your answer using two significant figures. w = ( )mm
