Green light (λ = 551 nm ) strikes a single slit at normal incidence. What width slit will produce...

Question

Question

Green light (λ = 551 nm ) strikes a single slit at normal incidence.

What width slit will produce a central maximum that is 2.50 cm wide on a screen 1.80 m from the slit?

science physics

Answer 1

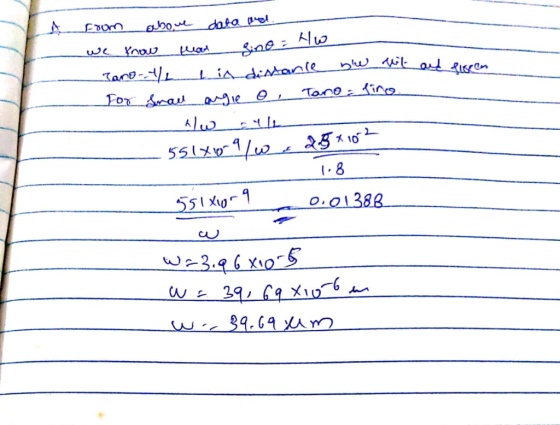

Answer #1

Answer 2
