Problem 2 Design a BCD counter that uses four(4) T flip-flops using the given table format...
Problem 2 Design a BCD counter that uses four(4) T flip-flops using the given table format...

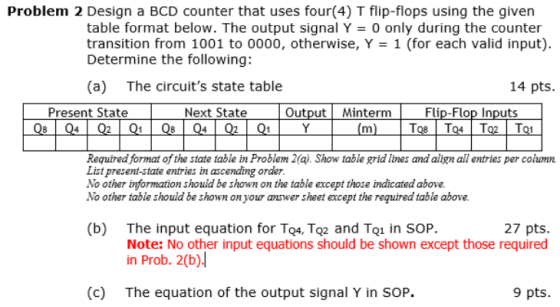

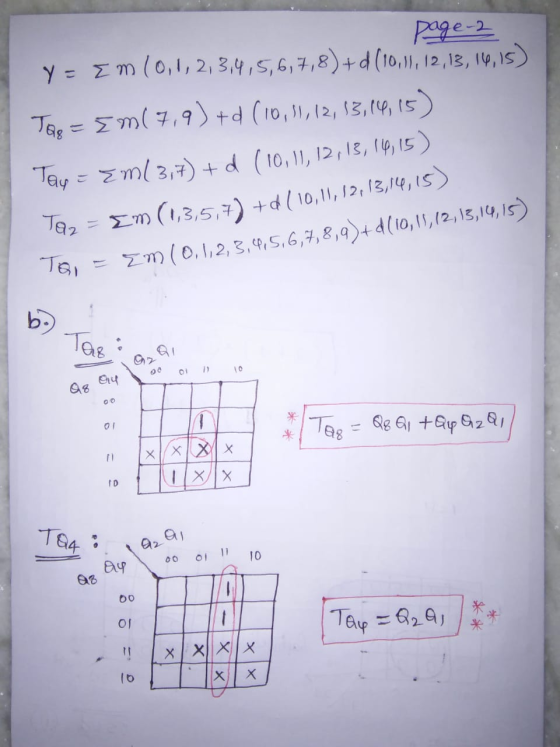

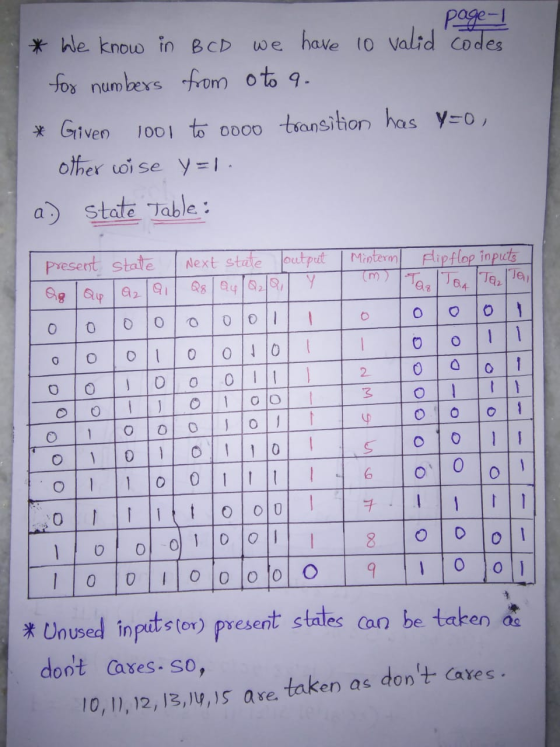

Problem 2 Design a BCD counter that uses four(4) T flip-flops using the given table format below. The output signal Y = 0 only during the counter transition from 1001 to 0000, otherwise, Y = 1 (for each valid input). Determine the following: (a) The circuit's state table Present State Next State Output Minterm Flip-Flop Inputs Q4 Q1 Q4 Q1 Y (m) TQ8 T04 TQ2 T01 14 pts. Required format of the state table in Problem 2(a). Show table grid...
Design a BCD counter that uses four(4) T flip-flops using the given table format below. The...
Design a BCD counter that uses four(4) T flip-flops using the given table format below. The output signal Y = 0 only during the counter transition from 1001 to 0000, otherwise, Y = 1 (for each valid input). Determine the following: (a) The circuit's state table Present State Next State Output Minterm Flip-Flop Inputs Q. Q4 Q1 Q: Q4 Q2 Q1 Y (m) T24 T02 TQ1 T08 Required format of the state table in Problem 2(a). Show table grid lines...
Design a BCD counter with four T flip-flops. - The state table should have the present...
Design a BCD counter with four T flip-flops. - The state table should have the present state, next state, output, minterm, and flip-flop inputs. The output signal Y = 0 only during the counter transition from 1001 to 0000, otherwise, Y = 1 (for each valid input). - The input equation for TQ4, TQ2 and TQ1 in SOP. - The equation of the output signal Y in SOP.
Problem 1. Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating...
Problem 1. Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. Show clearly the following: (a) The circuit's state table with the present-state entries in ascending order. Present State (t) Next State (t+1) Flip-flop Inputs C B А m C B А Sc Rc SB RB SA RA 14 pts. Required format of the state table in Problem 1(a). Show table grid lines and align...
Problem 1. Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating...
Problem 1. Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. Show clearly the following: (a) The circuit's state table with the present-state entries in ascending order. 14 pts. Present State (t) Next State (t+1) Flip-flop Inputs с в А m C B A Sc Rc RE RA SB SA Required format of the state table in Problem 1(a). Show table grid lines and align...
Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting...
Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. Show clearly the following: (a) The circuit's state table with the present-state entries in ascending order. Present State (t) Next State (t+1) Flip-flop Inputs с B A m с B A Sc Rc SB RE SA RA Required format of the state table in Problem 1(a). Show table grid lines and align all entries per column....
Using S-R flip-flops, design a 3-bit counter (C,B,A) with the repeating binary counting sequence: 1, 3,...
Using S-R flip-flops, design a 3-bit counter (C,B,A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. - Show the circuit's state table with the present-state entries in ascending order, which should have the present state (t), next state (t+1), and flip-flop inputs. - Find the flip-flop input equations for RC, RB, and RA in Product of Sums form.
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gat...
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gate(s). Sketch the input and output waveforms of this counter (7 Marks) (b) The binary up/down counter for a cargo lift controller in a 7-storey building has an up-down (UID) control input and a buzzer output (B). The buzzer will sound B 1) when the lift is at level 1 or...
Please design a 4 bit synchrous counter (0-9 count) using t flip flops. Counter should reset...
Please design a 4 bit synchrous counter (0-9 count) using t flip flops. Counter should reset to 0 after 9. Kindly provide all steps including state table. I will be thankful to you.
Design a three-bit counter using D flip-flops that has the following characteristics: When the value of...
Design a three-bit counter using D flip-flops that has the following characteristics: When the value of an input x is 0, the counter counts "down" in standard order. When the value of x is 1, the counter counts "up" in standard order a. First, complete the state table shown below Present State Next State Excitation 0 0 0 0 0 0 1 0 0 0 0 0 0 b. Next, derive the logic equations using the Karnaugh maps shown below...
Problem 2 Design a BCD counter that uses four(4) T flip-flops using the given table format below. The output signal Y = 0 only during the counter transition from 1001 to 0000, otherwise, Y = 1 (for each valid input). Determine the following: (a) The circuit's state table Present State Next State Output Minterm Flip-Flop Inputs Q4 Q1 Q4 Q1 Y (m) TQ8 T04 TQ2 T01 14 pts. Required format of the state table in Problem 2(a). Show table grid...
Design a BCD counter that uses four(4) T flip-flops using the given table format below. The output signal Y = 0 only during the counter transition from 1001 to 0000, otherwise, Y = 1 (for each valid input). Determine the following: (a) The circuit's state table Present State Next State Output Minterm Flip-Flop Inputs Q. Q4 Q1 Q: Q4 Q2 Q1 Y (m) T24 T02 TQ1 T08 Required format of the state table in Problem 2(a). Show table grid lines...
Problem 1. Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. Show clearly the following: (a) The circuit's state table with the present-state entries in ascending order. Present State (t) Next State (t+1) Flip-flop Inputs C B А m C B А Sc Rc SB RB SA RA 14 pts. Required format of the state table in Problem 1(a). Show table grid lines and align...
Problem 1. Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. Show clearly the following: (a) The circuit's state table with the present-state entries in ascending order. 14 pts. Present State (t) Next State (t+1) Flip-flop Inputs с в А m C B A Sc Rc RE RA SB SA Required format of the state table in Problem 1(a). Show table grid lines and align...
Use S-R flip-flops to design a 3-bit counter (C, B, A) with the repeating binary counting sequence: 1, 3, 2, 6, 7, 5, 4. Show clearly the following: (a) The circuit's state table with the present-state entries in ascending order. Present State (t) Next State (t+1) Flip-flop Inputs с B A m с B A Sc Rc SB RE SA RA Required format of the state table in Problem 1(a). Show table grid lines and align all entries per column....
(a) Design an asynchronous Binary Coded Decimal (BCD) count-up counter using JK flip-flops. Draw the counter circuit clearly showing the configuration of the JK flip-flops and the necessary logic gate(s). Sketch the input and output waveforms of this counter (7 Marks) (b) The binary up/down counter for a cargo lift controller in a 7-storey building has an up-down (UID) control input and a buzzer output (B). The buzzer will sound B 1) when the lift is at level 1 or...
Design a three-bit counter using D flip-flops that has the following characteristics: When the value of an input x is 0, the counter counts "down" in standard order. When the value of x is 1, the counter counts "up" in standard order a. First, complete the state table shown below Present State Next State Excitation 0 0 0 0 0 0 1 0 0 0 0 0 0 b. Next, derive the logic equations using the Karnaugh maps shown below...
