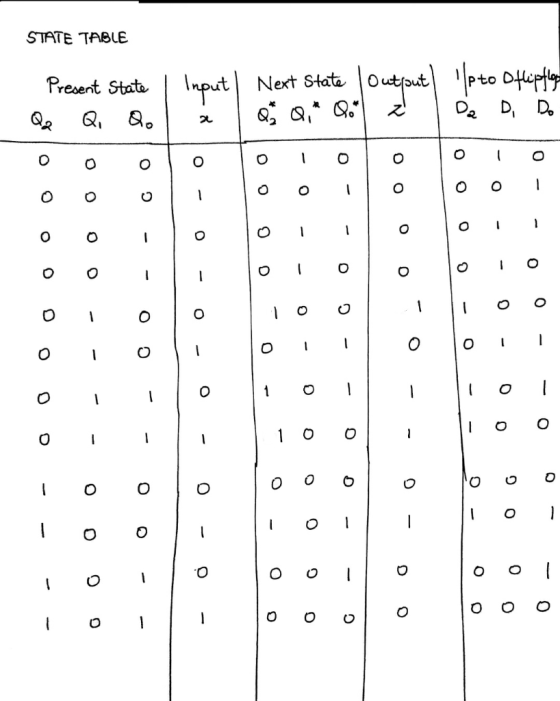

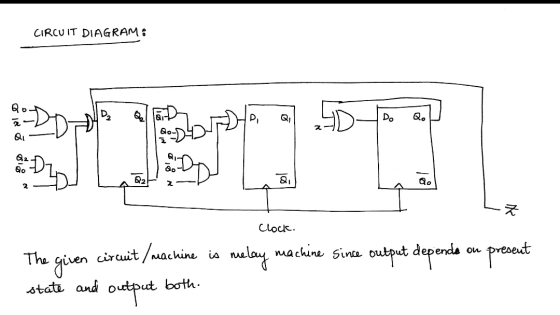

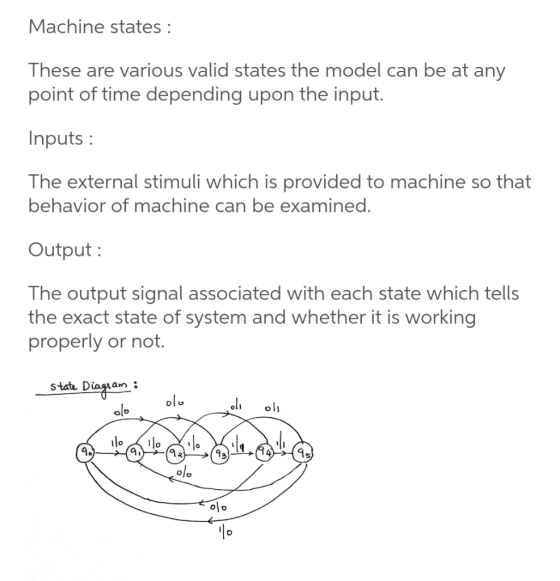

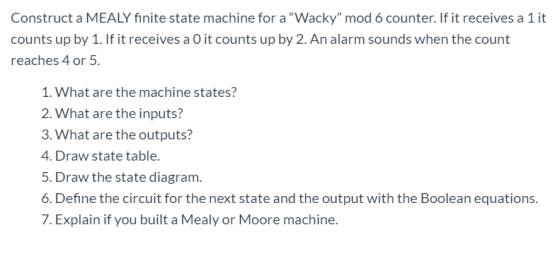

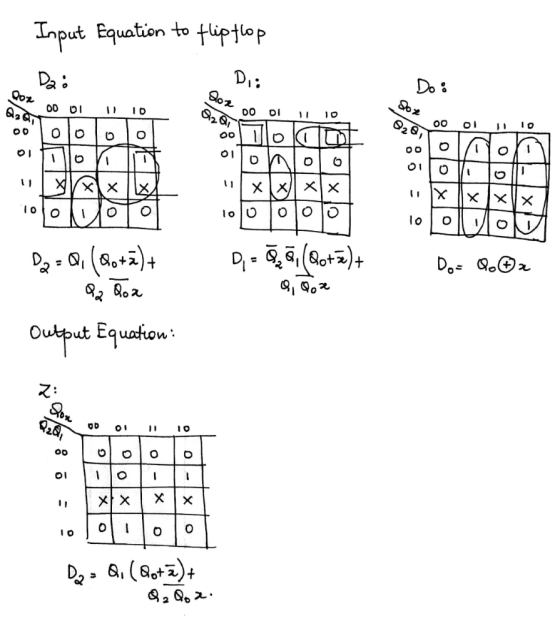

Construct a MEALY finite state machine for...
Consider a finite state machine (FSM) that recognizes the pattern "101" or “010”, which means when...
Consider a finite state machine (FSM) that recognizes the pattern "101" or “010”, which means when the FSM receives “101” or “010” as inputs in successive bits, it should output 1. Otherwise, the output should be 0. Input: 101010001010101101 Output: 001111000111111001 Draw diagrams for Mealy machine and Moore machine for the FSM
What are the differences between a Moore finite-state machine (FSM) and a Mealy FSM?
What are the differences between a Moore finite-state machine (FSM) and a Mealy FSM?
Question 9 [7 Marks] A state table for a finite state machine (FSM) is given below....
Question 9 [7 Marks] A state table for a finite state machine (FSM) is given below. Output Next State w=0 w=1 Curr state 1 [6 marks[a) Using the state-minimization procedure, determine which of the 7 states in the FSM are equivalent to other states? Show your work for full marks (continue on next page if needed). [1 mark] b) Is this a Mealy or a Moore FSM?
Design a 3-bit counter that has only one input, w. It counts down 7, 6,5,... 0, 7,.. whenever w-0...
all please
Design a 3-bit counter that has only one input, w. It counts down 7, 6,5,... 0, 7,.. whenever w-0, and counts up 0,1,2...7,0... when w 1 The output z-1, when the state of the counter is a prime number. Otherwise, z-0 1. List Inputs, Outputs and the count sequence. (5pts) 2. Draw the finite State machine for the counter. (10pts) 3. Draw the state transition table <extra columns for the flip flops values> (20pts) armed resource/content/1/case%20study.template.docx 4. Design...
Design and Draw the Circuit Schematic for the FSM if it were a Mealy Machine. Your...
Design and Draw the Circuit Schematic for the FSM if it were a Mealy Machine. Your answer must show all the below items in the order. Combined State transition table and Output Table Combined State transition table and Output Table with encodings Boolean expressions for Next State Logic Boolean expressions for Output Logic FSM Circuit Schematic with Inputs, Next State Logic, State Register, Output logic and Outputs The FSM State transition diagram for Mealy Machine is 1/1 Reset 1/0 1/0...
Consider a finite state machine with a control input called mode. When mode = 0, the...
Consider a finite state machine with a control input called mode. When mode = 0, the machine operates as a mod-3 down counter, where the outputs are the count values. When mode = 1, the machine's output progresses through 1133 number (1 digit per clock cycle). Complete each of the steps which follow. (a) Draw the state diagram for this machine. (b) Write RTL Verilog code which implements this design. Submit your printed source code by the due date and...
Design the following finite state machine (FSM). It has two 1-bit inputs (in1 and in2) and...
Design the following finite state machine (FSM). It has two 1-bit inputs (in1 and in2) and two 1-bit outputs (out1 and out2). The first output (out1) bit should be equal to one if, on both of the last two cycles, in1 and in2 were EQUAL to each other; otherwise, out1 should equal zero. The second output (out2) should be equal to 1 if, on the last cycle, in1 and in2 were NOT EQUAL to each other; otherwise, out2 should equal...
IF YOU DON'T KNOW THE ANSWER %100 DO NOT RESPOND. A) Make a MOORE Finite State...
IF YOU DON'T KNOW THE ANSWER %100 DO NOT RESPOND. A) Make a MOORE Finite State Machine, which searches for the following input: "0011”. You will give the state diagram and the state table. IF YOU DON'T KNOW THE ANSWER %100 DO NOT RESPOND. B) Draw the digital circuit for the MEALY Finite State Machine below. Use D-Flip-Flops. 0/0 - 0/0 Reset 0/1
3. Finite State Machine. Using a ROM based finite state machine (FSM), design a bi-directional repetitive...
3. Finite State Machine. Using a ROM based finite state machine (FSM), design a bi-directional repetitive 3-bit modulo-6 (0,1,2,3,4,5) counter (see Table 3). The design has one input named Dir and three outputs named B2, B1 and BO. The outputs (B2, B1 and BO) are dependent upon being in the present state only. After each clock pulse, when Dir is at logic "O', the outputs (B2, B1, BO) step through the count sequence in following order:- 0,1,2,3,4,5. After each clock...
Given the following Mealy finite state machine (FSM): Reset State State Encoding A/O B/O SO S1...
Given the following Mealy finite state machine (FSM): Reset State State Encoding A/O B/O SO S1 S2 001 Bio AB/1 AIO Ā+BO a. Suppose one hot encoding is used to encode the states as given in ad- jacent table. Complete the state transition table and output table. (10 pts) b. Write Boolean equations for the next state and the output logic units. (10 pts) c. Sketch a schematic of the FSM. (10 pts)
Question 9 [7 Marks] A state table for a finite state machine (FSM) is given below. Output Next State w=0 w=1 Curr state 1 [6 marks[a) Using the state-minimization procedure, determine which of the 7 states in the FSM are equivalent to other states? Show your work for full marks (continue on next page if needed). [1 mark] b) Is this a Mealy or a Moore FSM?
all please
Design a 3-bit counter that has only one input, w. It counts down 7, 6,5,... 0, 7,.. whenever w-0, and counts up 0,1,2...7,0... when w 1 The output z-1, when the state of the counter is a prime number. Otherwise, z-0 1. List Inputs, Outputs and the count sequence. (5pts) 2. Draw the finite State machine for the counter. (10pts) 3. Draw the state transition table <extra columns for the flip flops values> (20pts) armed resource/content/1/case%20study.template.docx 4. Design...
Design and Draw the Circuit Schematic for the FSM if it were a Mealy Machine. Your answer must show all the below items in the order. Combined State transition table and Output Table Combined State transition table and Output Table with encodings Boolean expressions for Next State Logic Boolean expressions for Output Logic FSM Circuit Schematic with Inputs, Next State Logic, State Register, Output logic and Outputs The FSM State transition diagram for Mealy Machine is 1/1 Reset 1/0 1/0...
IF YOU DON'T KNOW THE ANSWER %100 DO NOT RESPOND. A) Make a MOORE Finite State Machine, which searches for the following input: "0011”. You will give the state diagram and the state table. IF YOU DON'T KNOW THE ANSWER %100 DO NOT RESPOND. B) Draw the digital circuit for the MEALY Finite State Machine below. Use D-Flip-Flops. 0/0 - 0/0 Reset 0/1
3. Finite State Machine. Using a ROM based finite state machine (FSM), design a bi-directional repetitive 3-bit modulo-6 (0,1,2,3,4,5) counter (see Table 3). The design has one input named Dir and three outputs named B2, B1 and BO. The outputs (B2, B1 and BO) are dependent upon being in the present state only. After each clock pulse, when Dir is at logic "O', the outputs (B2, B1, BO) step through the count sequence in following order:- 0,1,2,3,4,5. After each clock...
Given the following Mealy finite state machine (FSM): Reset State State Encoding A/O B/O SO S1 S2 001 Bio AB/1 AIO Ā+BO a. Suppose one hot encoding is used to encode the states as given in ad- jacent table. Complete the state transition table and output table. (10 pts) b. Write Boolean equations for the next state and the output logic units. (10 pts) c. Sketch a schematic of the FSM. (10 pts)
