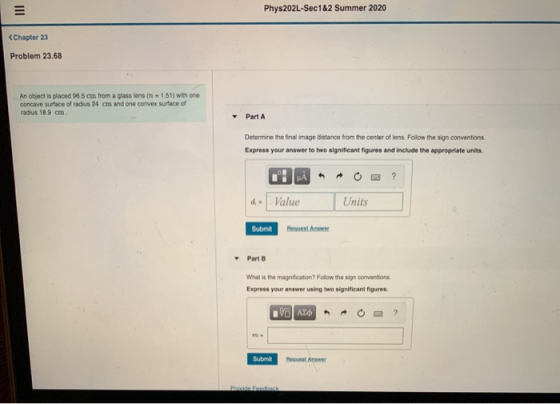

III Phys202L-Sec1&2 Summer 2020 <Chapter 23 Problem 23.68 An object is placed 95.5 cm from a...
Problem 23.10 Part A A small candle is 31 cm from a concave mirror having a...
Problem 23.10 Part A A small candle is 31 cm from a concave mirror having a radius of curvature of 22 cm What is the focal length of the mirror? Follow the sign conventions Express your answer to two significant figures and include the appropriate units. Value Units Submit My Answers Give Up Part B Where will the image of the candie be located? Follow the sign conventions Express your answer to two significant figures and include the appropriate units....
An object is placed 96.5 cm from a glass lens (n = 1.51) with one concave...

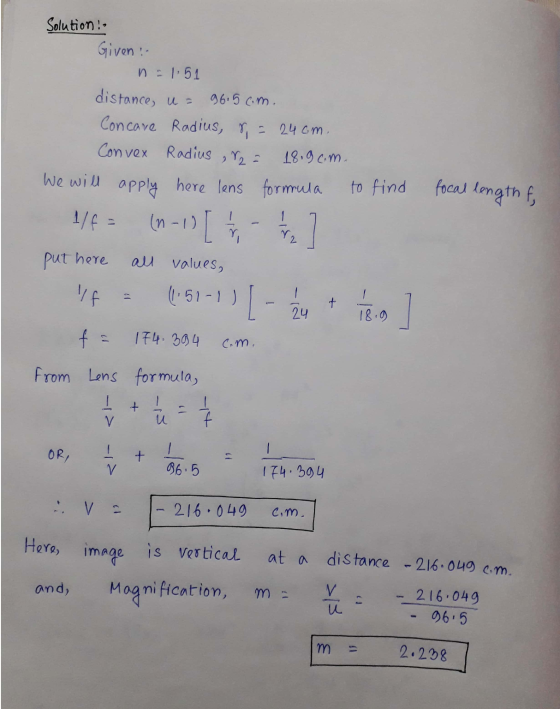

An object is placed 96.5 cm from a glass lens (n = 1.51) with one concave surface of radius 23.5 cm and one convex surface of radius 18.5 cm . A) Determine the final image distance from the center of lens. Follow the sign conventions. B) What is the magnification? Follow the sign conventions.
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm...
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm apart. An object is placed 35.0 cm in front of one lens. Where will the final image formed by the second lens be located? Determine the image distance from the second lens. Follow the sign conventions. Express your answer to three significant figures and include the appropriate units dp-Value Units Submit Request Answer Part B What is the total magnification? Follow the sign conv...
An object is placed 30 cm from a certain mirror. The image is half the size...
An object is placed 30 cm from a certain mirror. The image is half the size of the object, inverted, and real. How far is the image from the mirror? Follow the sign conventions. Express your answer using two significant figures. What is the radius of curvature of the mirror? Follow the sign conventions. Express your answer using two significant figures.
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0...
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0 cm , are placed 25.0 cm apart. An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. OD Å ? di2 = 1 cm Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining...
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal...
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal length 11.5 cm , are placed 25.0 cm apart An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. d2 13 cm ubmit Previous Answers Correct Part B Determine the magnification of the final image formed....
Alighted candle is placed 36 cm in front of a converging lens of focal length 12...
Alighted candle is placed 36 cm in front of a converging lens of focal length 12 cm, which in turn is 58 cm in front of another converging lens of focal length 17 cm (Figure 11 Part A Calculate the image distance of the final image relative the second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. ? de = 32 m Submit Previous Answers Best Answer X Incorrect; Try Again;...
PHYSICS 1444-001 Summer 2020 Ragheed <Chapter 26 DC Circuits Problem 26.16 < 2 of 8 >...
PHYSICS 1444-001 Summer 2020 Ragheed <Chapter 26 DC Circuits Problem 26.16 < 2 of 8 > Constants Periodic Table Part A Determine the equivalent resistance of the circuit shown in the figure. (Figure 1) Express your answer to three significant figures and include the appropriate units. Á c ? R= Value Units Submit Request Answer Figure 15 1 of 1 > Part B Determine the voltage across 820 82 resistor Express your answer to two significant figures and include the...
Cumulative Problem 10 A thin, diverging lens having a focal length of magnitude 45.0 cm has...
Cumulative Problem 10 A thin, diverging lens having a focal length of magnitude 45.0 cm has the same principal axis as a concave mirror with a radius of 60.0 cm. The center of the mirror is 20.0 cm from the lens, with the lens in front of the mirror. An object is placed 23.0 cm in front of the lens. 1) Where is the final image due to the lens-mirror combination? Enter the image distance with respect to the mirror....
A small insect is placed 5.50 cm from a 6.00-cm-focal-length lens. a) Calculate the position of...
A small insect is placed 5.50 cm from a 6.00-cm-focal-length lens. a) Calculate the position of the image. Follow the sign conventions. Express your answer using two significant figures and include appropriate units. b) Calculate the angular magnification. Express your answer using two significant figures.
Problem 23.10 Part A A small candle is 31 cm from a concave mirror having a radius of curvature of 22 cm What is the focal length of the mirror? Follow the sign conventions Express your answer to two significant figures and include the appropriate units. Value Units Submit My Answers Give Up Part B Where will the image of the candie be located? Follow the sign conventions Express your answer to two significant figures and include the appropriate units....
Problem 23.59 12 of 15 Part A Constants Two 21.7-cm-focal-length converging lenses ar placed 16.5 cm apart. An object is placed 35.0 cm in front of one lens. Where will the final image formed by the second lens be located? Determine the image distance from the second lens. Follow the sign conventions. Express your answer to three significant figures and include the appropriate units dp-Value Units Submit Request Answer Part B What is the total magnification? Follow the sign conv...
An object is placed 30 cm from a certain mirror. The image is half the size of the object, inverted, and real. How far is the image from the mirror? Follow the sign conventions. Express your answer using two significant figures. What is the radius of curvature of the mirror? Follow the sign conventions. Express your answer using two significant figures.
Two lenses, one converging with focal length 20.0 cm and one diverging with focal length 10.0 cm , are placed 25.0 cm apart. An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. OD Å ? di2 = 1 cm Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining...
Problem 23.61 Two lenses, one converging with focal length 20.5 cm and one diverging with focal length 11.5 cm , are placed 25.0 cm apart An object is placed 60.0 cm in front of the converging lens. Part A Find the final image distance from second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. d2 13 cm ubmit Previous Answers Correct Part B Determine the magnification of the final image formed....
Alighted candle is placed 36 cm in front of a converging lens of focal length 12 cm, which in turn is 58 cm in front of another converging lens of focal length 17 cm (Figure 11 Part A Calculate the image distance of the final image relative the second lens. Follow the sign conventions. Express your answer to two significant figures and include the appropriate units. ? de = 32 m Submit Previous Answers Best Answer X Incorrect; Try Again;...
PHYSICS 1444-001 Summer 2020 Ragheed <Chapter 26 DC Circuits Problem 26.16 < 2 of 8 > Constants Periodic Table Part A Determine the equivalent resistance of the circuit shown in the figure. (Figure 1) Express your answer to three significant figures and include the appropriate units. Á c ? R= Value Units Submit Request Answer Figure 15 1 of 1 > Part B Determine the voltage across 820 82 resistor Express your answer to two significant figures and include the...
Cumulative Problem 10 A thin, diverging lens having a focal length of magnitude 45.0 cm has the same principal axis as a concave mirror with a radius of 60.0 cm. The center of the mirror is 20.0 cm from the lens, with the lens in front of the mirror. An object is placed 23.0 cm in front of the lens. 1) Where is the final image due to the lens-mirror combination? Enter the image distance with respect to the mirror....
