An object is placed 96.5 cm from a glass lens (n = 1.51) with one concave...

An object is placed 96.5 cm from a glass lens (n = 1.51) with one concave surface of radius 23.5 cm and one convex surface of radius 18.5 cm .

A) Determine the final image distance from the center of lens. Follow the sign conventions.

B) What is the magnification? Follow the sign conventions.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

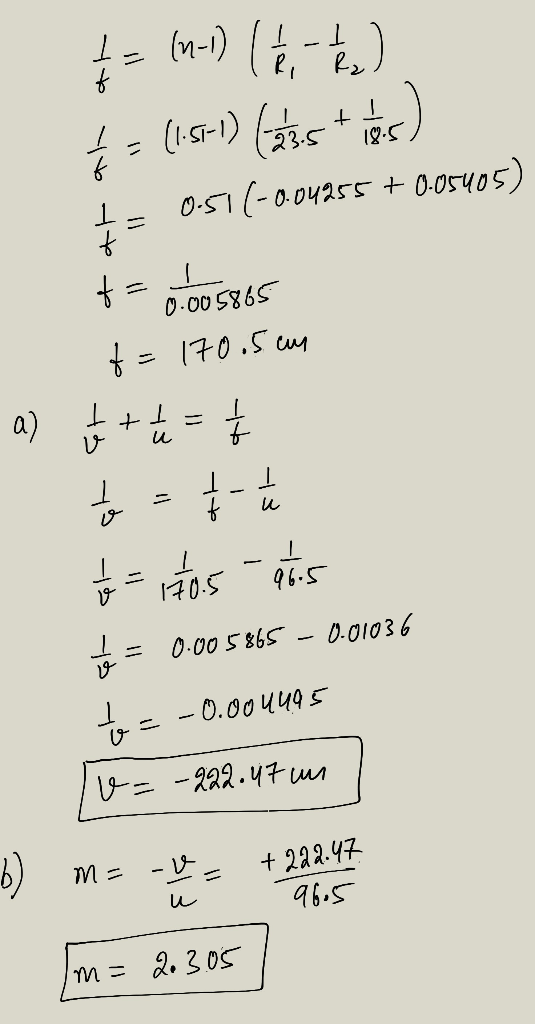

Answer #1

0 0
