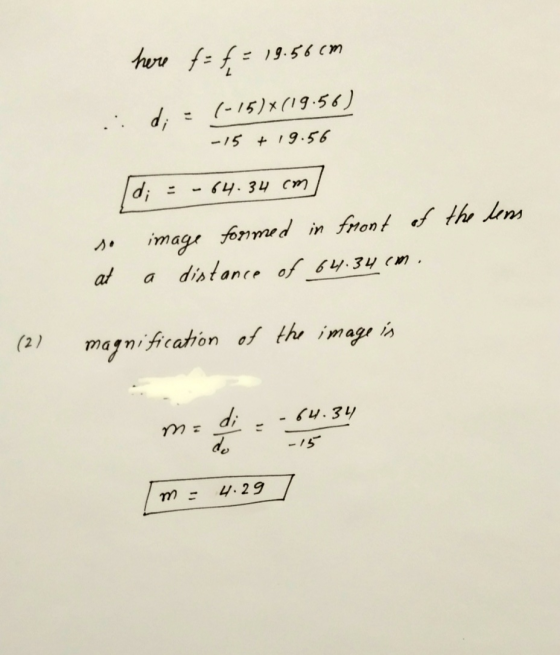

![here f= f = 19.56cm .: d; = (-15)*(19.56) -15 +19.56 (d; : -54.34 cm] so image formed in front of the lens at a distance of 6](http://img.homeworklib.com/questions/f335b500-6fcc-11ea-be89-a5636f3eec24.png?x-oss-process=image/resize,w_560)
Add Answer to:

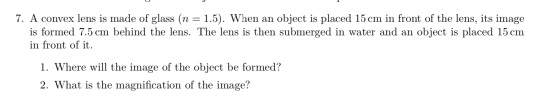

7. A convex lens is made of glass (n = 1.5). When an object is placed...
8. An object is placed 1 m in front of a convex lens with an 80...
8. An object is placed 1 m in front of a convex lens with an 80 cm focal length. A convex mirror is then placed 1 m behind the lens. The radius of curvature of the mirror is 50 cm. 1. Where is the final image of the object (the image formed by light that has passed through the lens twice), with respect to the lens? 2. What is the total magnification of the final image? 3. Is the image...
QUESTION 7 An object placed 35 cm in front of a convex lens projects a real...
QUESTION 7 An object placed 35 cm in front of a convex lens projects a real image 55 cm behind the lens. What is the magnification of the lens? Enter only the number portion of your answer. Watch your signs! (9) An object 21 cm to the left of a convex lens. The object is 1.0 m in height. What is the height of its image if the lens has a magnification of -2.0? (10) An object 21 cm to...
An object placed 20 cm in front of a lens results in an image being formed...
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
QUESTION 6 An object is placed 12 cm in front of a convex, spherical reflecting surface....
QUESTION 6 An object is placed 12 cm in front of a convex, spherical reflecting surface. The image of this object appears 7 cm behind the convex, spherical reflecting surface. Calculate the radius of curvature of the surface. o 33.6 cm 0 -8.84 cm 0 -33.6 cm o 8.84 cm QUESTION 7 You have a thin, double-convex lens made of glass and you want to use it to magnify an object without inverting it (you want magnification > 1). In...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y'- 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y’ = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y' = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
2. An object is placed 26.0 cm in front of convex lens of focal length 45.0...
2. An object is placed 26.0 cm in front of convex lens of focal length 45.0 cm. What is the magnification of the image?
7. When an object is placed at 37 cm to the left of a lens, an...
7. When an object is placed at 37 cm to the left of a lens, an image is formed 15 cm to the right of the lens. What is the focal length of the lens and the magnification? Draw a ray diagram of 4points
An object is placed 96.5 cm from a glass lens (n = 1.51) with one concave...
An object is placed 96.5 cm from a glass lens (n = 1.51) with one concave surface of radius 23.5 cm and one convex surface of radius 18.5 cm . A) Determine the final image distance from the center of lens. Follow the sign conventions. B) What is the magnification? Follow the sign conventions.
8. An object is placed 1 m in front of a convex lens with an 80 cm focal length. A convex mirror is then placed 1 m behind the lens. The radius of curvature of the mirror is 50 cm. 1. Where is the final image of the object (the image formed by light that has passed through the lens twice), with respect to the lens? 2. What is the total magnification of the final image? 3. Is the image...
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
QUESTION 6 An object is placed 12 cm in front of a convex, spherical reflecting surface. The image of this object appears 7 cm behind the convex, spherical reflecting surface. Calculate the radius of curvature of the surface. o 33.6 cm 0 -8.84 cm 0 -33.6 cm o 8.84 cm QUESTION 7 You have a thin, double-convex lens made of glass and you want to use it to magnify an object without inverting it (you want magnification > 1). In...
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y'- 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y’ = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
A 4.0 cm tall object is placed 8 cm in front of a double-convex lens (n = 1.52). The height of the image is y' = 7.0 cm. Based on this information find: a) The magnification, m. b) The image distance, s'. c) The focal length of this lens, f.
2. An object is placed 26.0 cm in front of convex lens of focal length 45.0 cm. What is the magnification of the image?
7. When an object is placed at 37 cm to the left of a lens, an image is formed 15 cm to the right of the lens. What is the focal length of the lens and the magnification? Draw a ray diagram of 4points
