A 6 mm high object is placed 10 cm to the left of a diverging lens...

Question

Question

A 6 mm high object is placed 10 cm to the left of a diverging lens with focal length -15 cm.

1. The image distance will be:

Between 0 and 15 cm

Greater than 15 cm

Between 0 and -15 cm

Less than -15 cm

2. The magnitude of the image height will be:

Between 3 and 6 mm

Greater than 9 mm

Between 6 and 9 mm

Less than 3 mm

science physics

Answer 1

Answer #1

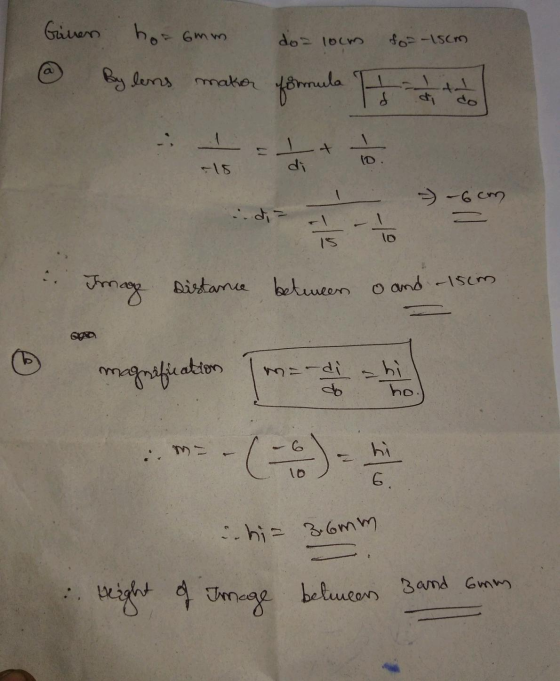

Given hos 6mm do locm fo-isom By lens maken formula 1 do els di - - 6cm = is lo Image distance between 0 and -15cm GO magnifi

Answer 2
