Homework Answers
Answer 1

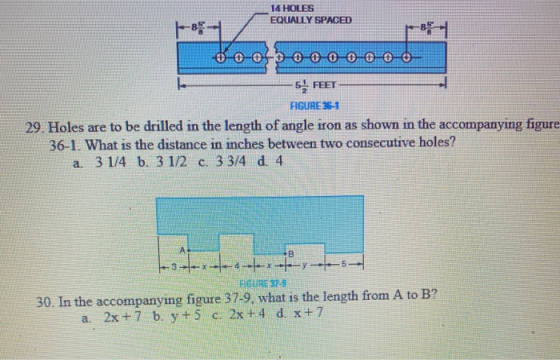

The equation will be
2×8.625 + 13d = 5.5×12
d = 3.75 or 3 3/4 option C.
ANSWER 2.
C option
2x + 4
PLEASE DO POST COMMENTS IF YOU HAVE ANY DOUBT. PRESS THUMBS UP IF YOU LIKE THE ANSWER AND THE EFFORT.
THANKS
