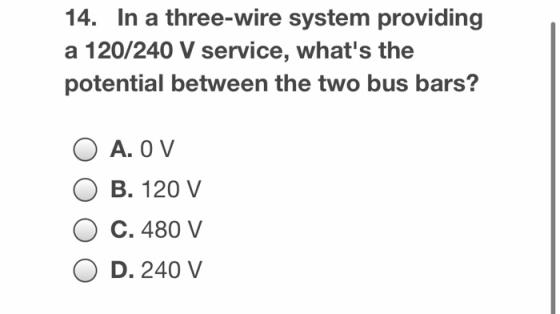

14. In a three-wire system providing a 120/240 V service, what's the potential between the two...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

The answer to this question depends upon the system used.

If we use a 3 ph , 3 wire system, then voltage between the phase is also the voltage between the busbars.

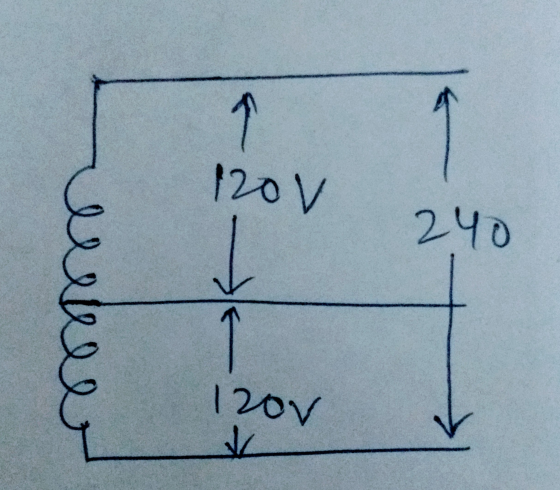

But here the voltage level is given so it seems like the given below figure.

Here the volavol between the lines is 240. So Voltage between the busbars is also 240
