PROBLEM 52 points): Show whether the system of forces acting on the plate can be replaced...

Question

Question

PROBLEM 52 points): Show whether the system of forces acting on the plate can be replaced by an equivalent resultant force on

engineering Civil-Engineering

Answer 1

Answer #1

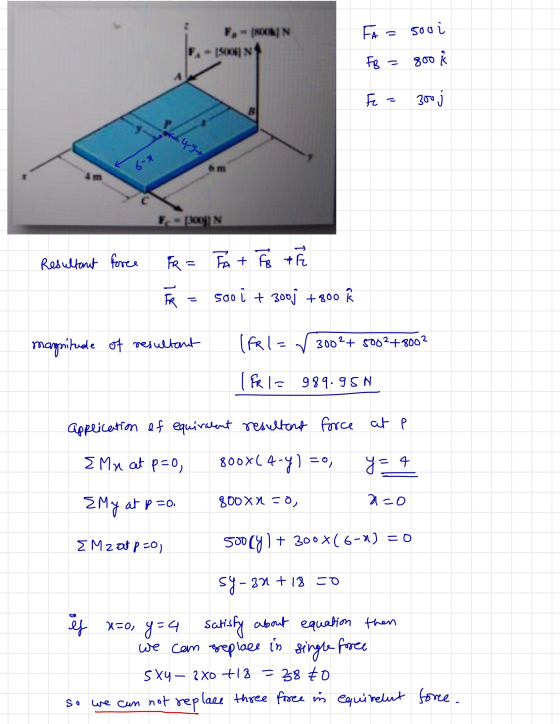

FA = sooi F-CAIN SON FB 800 = Fe 300 j 4-4- 6-n F = 1200N Resultant force FR = A + FB t FR soo i + 300j +800 K magnitude of r

Answer 2

Similar Homework Help Questions

Problem 2 (10 points) Replace the forces acting on the beam cross section by an equivalent...

Problem 2 (10 points) Replace the forces acting on the beam cross section by an equivalent resultant force and specify where the resultant's line of action intersects the x-axis measured from O. Show your work clearly including the equation(s) that you use. Give your equivalent resultant force in terms of magnitude and direction measured counterclockwise from the +x-axis. Use 705 lb, 855 lb, 755 lb, 225 lb instead of 600 lb, 850 lb, 750 lb, 200 lb. Let a 5...
Problem 4- Addition of a System of 3D Forces (20 pts) There are four forces acting...

Problem 4- Addition of a System of 3D Forces (20 pts) There are four forces acting at point E. Each force has magnitude of 50 kN. Express each force as a Cartesian vector, and calculate the resultant force. FEC FEA FED FEB D 12 m 6 m 4 m 6 m Problem 4- Addition of a System of 3D Forces (20 pts) There are four forces acting at point E. Each force has magnitude of 50 kN. Express each force...
Problem B Replace the five forces acting on the bar in the figure below with an...

Problem B Replace the five forces acting on the bar in the figure below with an equivalent force-couple system acting at the origin of the indicated coordinate system. All forces are in lbs. F 5701b os shown F4 360ib os shown

Replace the force and couple moment system acting on the beam by an equivalent resultant force and specify its location from point A located at the centerline of the heam.

Replace the force and couple moment system acting on the beam by an equivalent resultant force and specify its location from point A located at the centerline of the heam.
Question 3 Forces F1, F2, F3, and F4 and the moment of a couple Mc are...

Question 3 Forces F1, F2, F3, and F4 and the moment of a couple Mc are acting on a 3D rigid body as shown in Fig. 3. Convert this force and moment system into a single resultant force passing through Point F and an equivalent turning moment. Calculate both the resultant force at F and the corresponding turning moment as vectors. Further, reduce the force and moment system at F into a wrench resultant and calculate the turning moment of...
Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.

Problem 3: Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.

Given: The plate is subjected to the couples and forces shown (P = 0 N). The...

Given: The plate is subjected to the couples and forces shown (P = 0 N). The couple @ F is 42 N.m CCw and the couple @H is 40 N m CCW Find: The plate is to be held in place by one rivet that can resist a force but not a couple. Determine the location of the rivet hole along the line that passes through FG relative to the top of the plate (ED) such that the plate would...
please show all work clearly Problem 1 10 lb y F L ВІ M 45 lb...

please show all work clearly Problem 1 10 lb y F L ВІ M 45 lb M = 194 lb.in F = 36 lb a = 53 deg L = 12 in d = 7.2 in Replace the shown forces and couples by an equivalent force couple system at point C. Specify the magnitude and the direction of the resultant force measured clockwise from the negative x axis. Answer:
Statics Problem Problem #5 In the Diagram below, there are 2 forces acting on the pipe....

Statics Problem Problem #5 In the Diagram below, there are 2 forces acting on the pipe. a) Moment at Point O, (10 pts) b) Moment about the line OA (Section between the origin and 1" pipe joint)(10 pts) c) Moment about the line AO (5 pts) F2 1-10i +25j + 20k) Ib 2 ft 0 1.5 ft 2ft 2 f Problem #6( The Beam in the Figure below is subjected to 3 forces. Determine by any method of choice: a)...

The loading system on a plate consists of 3 forces (600 N, 800 N, & 200...

The loading system on a plate consists of 3 forces (600 N, 800 N, & 200 N) and a couple moment (100 N.m) as shown in the diagram below. Replace them by a wrench. Specify the magnitude of the force (FR) and the couple moment (MR) for the wrench and the x and z coordinates for the point where the wrench intersects the x-z plane. 100 Nm MR = 2 m 4 m 200 N 2 m 600 N 800...
