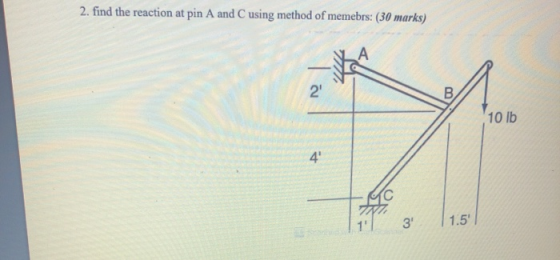

2. find the reaction at pin A and C using method of memebrs: (30 marks) 2'...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

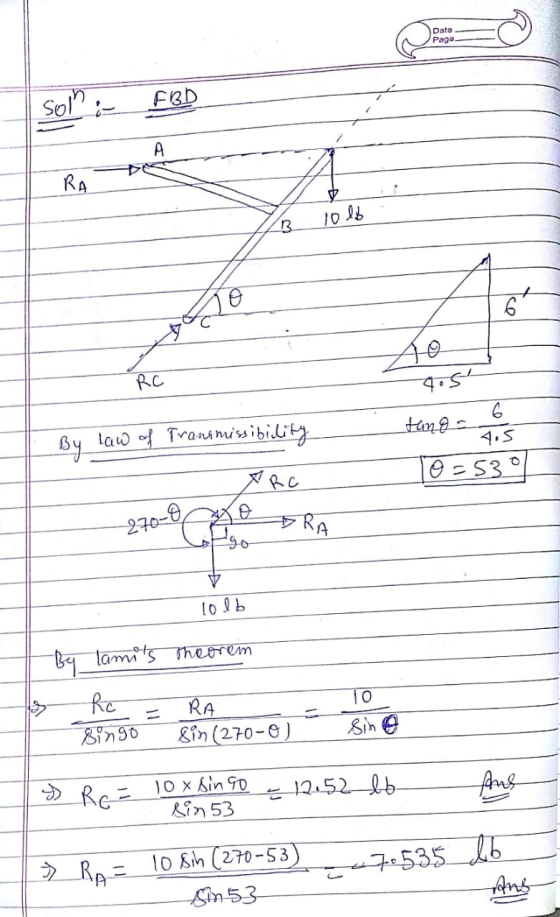

Dato Pago solna FBD А RA 10 lb B lo 6 RC 4.51 tuno - 6 4.5 By law of Transmissibility 0-530 ARC 270-0 ARA go 10lb by lamis t

Answer 2

Similar Homework Help Questions

2. find the reaction at pin A and C using method of memebrs: (30 marks) 2...

2. find the reaction at pin A and C using method of memebrs: (30 marks) 2 В. 10 lb 4' AC 3 1.5 C Scanned scanner
find the reaction at pin A and C using method of members: 2. find the reaction...

find the reaction at pin A and C using method of members: 2. find the reaction at pin A and C using method of memebrs: (30 marks) -- 2 B 10 lb 4' 77 CS Scanned Win Care 1' 3' 1.5'
Determine the reaction forces at pin B, pin C, and pin D. Draw the free body...

Determine the reaction forces at pin B, pin C, and pin D. Draw the free body diagrams for bar 2. AC and bar CE. Make sure all forces are pointing in the correct direction. 250 N 2 m В 2 m E A 1.5 m1.5 m 1.5 m-1.5 m-

نقطتان (2) Determine (a) the horizontal component of reaction at the pin at A Solb 21...

نقطتان (2) Determine (a) the horizontal component of reaction at the pin at A Solb 21 lb O 35 N 20 lb 15 lb 25 lb O تقطتان (2) b) the vertical component of) reaction at the pin at A 100 lb O 98 lb 111 lb O -90 lb -120 lb O نقطة واحدة c)the reaction of the roller at B on) .the lever 63 lb O 75 lb 68 lb 55 lb O 50 lb O
2. (40 points) For the loaded determinate truss with pin reaction at support E and roller...

2. (40 points) For the loaded determinate truss with pin reaction at support E and roller reaction at support A: (30 pts) fine the forces in members , DC, DG, and HG using the method of sections through section aa. Indicate whether these forces are in compression (C) or tension (T). (10 pts) list any zero-force members that you can determine. 30 k 30k 30k 15 k 12 ft 4 at 16 ft = 64 ft -
Instead of diameter at pin C, calculate diameter at pin B 4mt 1. 3 m Find...

Instead of diameter at pin C, calculate diameter at pin B 4mt 1. 3 m Find - Diameter a - Stress at bar 1&2 at pinc C 2 m 0 В. Pinat B roller at A Safety factor=3

2.[1251 Determine the support reaction at the roller B using the Force Method. The support at A i...

please I need someone to do it clearly. 2.[1251 Determine the support reaction at the roller B using the Force Method. The support at A is a roller and C is a pin. 500 lb 120 lb/ft 12ft 5 ft 5 ft- a. 130) Write the compatibility condition. Include sketches of the primary structure and redundant condition with the flexibility coefficient. Chose B, as the redundant force b. 160] Solve for ABy using virtual work 130] Draw the shear and...
SII Sin OB 5. For the frame shown, the magnitude of the reaction at pin C...

SII Sin OB 5. For the frame shown, the magnitude of the reaction at pin C is closest to: a) 19.5 lb. b) 23.0 lb. c) 26.5 lb. d) 30.0 lb. e) 33.5 lb. f) 37.0 lb. Sin.- Sin.--
Find reactions using virtual work method and draw BMD & SFD. Pin support at A, Roller...

Find reactions using virtual work method and draw BMD & SFD. Pin support at A, Roller supports at B & C. Point loads are located in the middle of each member. Units are in Newtons and Meters.

FIND THE PIN REACTION FORCES AT A, B, & C. 4 350LB 4' B 500LB 3'...

FIND THE PIN REACTION FORCES AT A, B, & C. 4 350LB 4' B 500LB 3' 3 4' 3'
