Add Answer to:

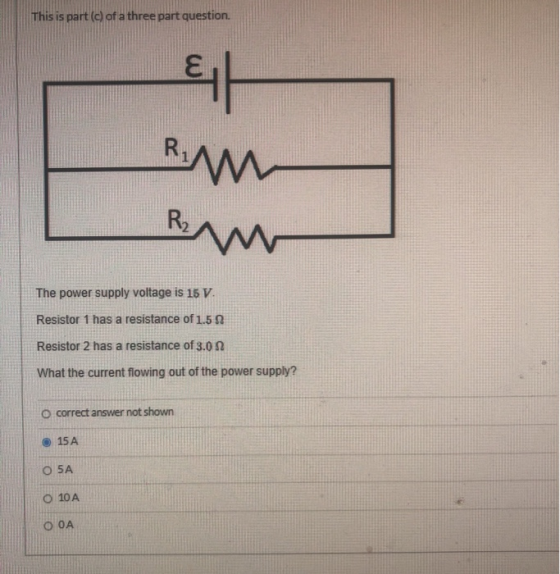

This is part (c) of a three part question. Eit RM w R2 The power supply...

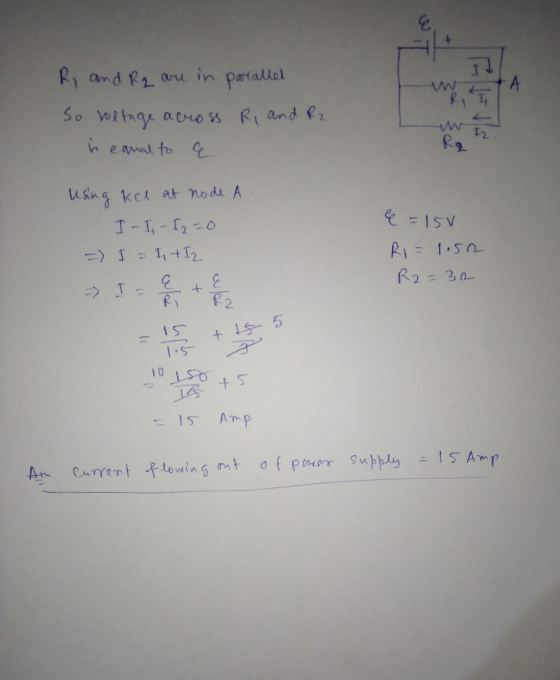

& w R R2 Each resistor has a resistance of 2.5 Ohms. The power supply voltage...
& w R R2 Each resistor has a resistance of 2.5 Ohms. The power supply voltage is 12 V. If the wire connected to the negative terminal of the power supply has a voltage of ov, then what is the voltage of the wire which is connecting the two resistors (the middle wire)? O 6V 4.8V O 30 V O correct answer not shown O 12V
A circuit consists of two resistors connected in series with a power supply, as shown in...
A circuit consists of two resistors connected in series with a power supply, as shown in the figure. The resistance of Ri is greater than the resistance of R2 Which resistor has the greater current flowing through it? O The current through each resistor is the same. Which resistor has the greatest voltage difference across it? The voltage across each resistor is the same.
A circuit consists of two resistors connected in series with a power supply, as shown in...
A circuit consists of two resistors connected in series with a
power supply, as shown in the figure. The resistance of ?1 is less
than the resistance of ?2.
A series circuit with two resistors R subscript 1 and R
subscript 2. R subscript 1 is connected to the positive terminal of
the power supply, and is the first resistor in the circuit.
Which resistor has the greater current flowing through
it?
?2
?1
The current through each resistor is...
A light bulb and a resistor are connected in series to a variable power supply. A...
A light bulb and a resistor are connected in series to a variable power supply. A student first connects a voltmeter and an ammeter to measure the current through and the voltage across the bulb, as shown in the left circuit below. The student varies the power supply voltage and records the readings on the meters. Power Supply Power Supply The student then places the voltmeter across the resistor as shown in the right circuit above, and repeats the experiment....
1.) A circuit consists of a power supply and two resistors R1 and R2 connected in...
1.) A circuit consists of a power supply and two resistors R1 and R2 connected in parallel.An Ammeter is placed to measure the current out of the power supply.The power supply provides 10.6 Volts, the Ammeter shows 19.9 mA, and the resistance of first resistor is R1 = 3.0 kOhm. Deduce the current through the 2nd resistor. The answer may be given in A or in mA. 2.) A circuit consists of a power supply and two resistors R1 and...
what is the the current flowing out of the power supply? an he power supply (E):...
what is the the current flowing out of the power supply?
an he power supply (E): 15V Resistor 1 has a resistance of 2.5 ohms Resistor 2 has a resistance of 4 ohms
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vd). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Ve=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA V. R2 R3 O 0.75 W O 1.25 W 0 2.67 w 4.2 w O 5.5 W The circuit shown in the figure...
An ac power supply produces a maximum voltage delta V_max = 100 V. This power supply...
An ac power supply produces a maximum voltage delta V_max = 100 V. This power supply is connected to a 24.0-ohm resistor, and the current and resistor voltage are measured with an ideal ac ammeter and voltmeter as shown in the sketch below: What does each meter read? An ideal ammeter has zero resistance and an ideal voltmeter has infinite resistance. (70.7 V;2.95 A)
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC +H R1 VA t: SA VB R2 R3 0.75 W 1.25 W 2.67 W 4.2 W O 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three...
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R32 VC +A R1 VA SA VB R2 R3 1.25 W 2.0 W 5.0 W 6.25 W 8.13 W
& w R R2 Each resistor has a resistance of 2.5 Ohms. The power supply voltage is 12 V. If the wire connected to the negative terminal of the power supply has a voltage of ov, then what is the voltage of the wire which is connecting the two resistors (the middle wire)? O 6V 4.8V O 30 V O correct answer not shown O 12V
A circuit consists of two resistors connected in series with a power supply, as shown in the figure. The resistance of Ri is greater than the resistance of R2 Which resistor has the greater current flowing through it? O The current through each resistor is the same. Which resistor has the greatest voltage difference across it? The voltage across each resistor is the same.
A circuit consists of two resistors connected in series with a
power supply, as shown in the figure. The resistance of ?1 is less
than the resistance of ?2.
A series circuit with two resistors R subscript 1 and R
subscript 2. R subscript 1 is connected to the positive terminal of
the power supply, and is the first resistor in the circuit.
Which resistor has the greater current flowing through
it?
?2
?1
The current through each resistor is...
A light bulb and a resistor are connected in series to a variable power supply. A student first connects a voltmeter and an ammeter to measure the current through and the voltage across the bulb, as shown in the left circuit below. The student varies the power supply voltage and records the readings on the meters. Power Supply Power Supply The student then places the voltmeter across the resistor as shown in the right circuit above, and repeats the experiment....
what is the the current flowing out of the power supply?
an he power supply (E): 15V Resistor 1 has a resistance of 2.5 ohms Resistor 2 has a resistance of 4 ohms
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vd). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Ve=20 V. When the circuit is connected, what will be the power dissipated by R3? Vc R1 VA V. R2 R3 O 0.75 W O 1.25 W 0 2.67 w 4.2 w O 5.5 W The circuit shown in the figure...
An ac power supply produces a maximum voltage delta V_max = 100 V. This power supply is connected to a 24.0-ohm resistor, and the current and resistor voltage are measured with an ideal ac ammeter and voltmeter as shown in the sketch below: What does each meter read? An ideal ammeter has zero resistance and an ideal voltmeter has infinite resistance. (70.7 V;2.95 A)
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=8 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R3? VC +H R1 VA t: SA VB R2 R3 0.75 W 1.25 W 2.67 W 4.2 W O 5.5 W
The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The resistor values are: R1=2 Ohms, R2=R3=4 Ohms, and the battery voltages are VA=25 V, V8=15 V, and Vc=20 V. When the circuit is connected, what will be the power dissipated by R32 VC +A R1 VA SA VB R2 R3 1.25 W 2.0 W 5.0 W 6.25 W 8.13 W
