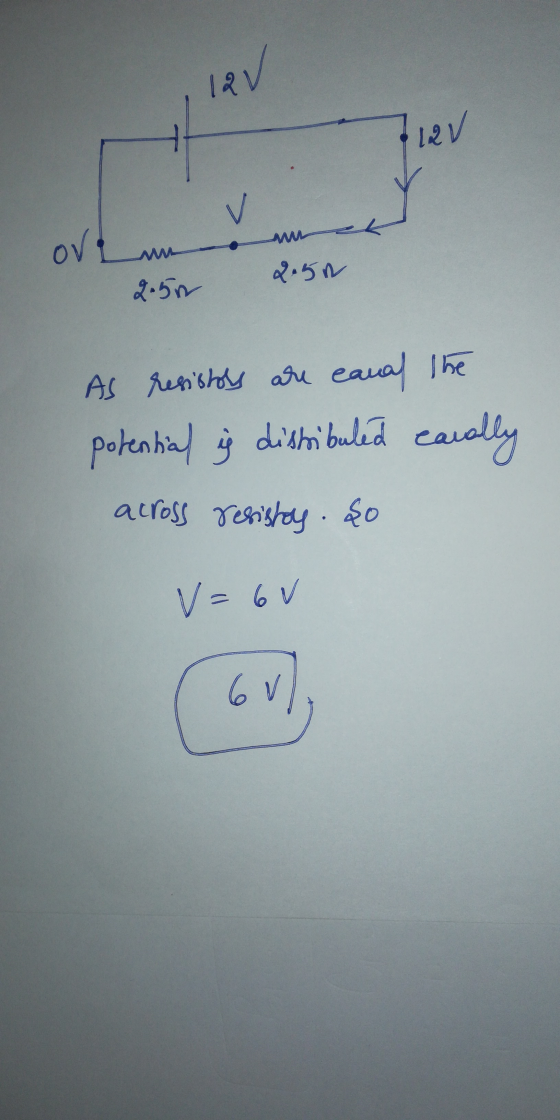

& w R R2 Each resistor has a resistance of 2.5 Ohms. The power supply voltage...

Question

Question

science physics

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Resistor 1= 3.5 ohms Resistor 2 = 3.5 ohms Power Supply = 12 V if the...

Resistor 1= 3.5 ohms Resistor 2 = 3.5 ohms Power Supply = 12 V if the wire connected to the negative terminal of the power supply has a voltage of 0, then what is tje voltage of the wire which is connecte to the two resistors (the middle wire)? لی) - | R. وط
power supply (E): 15V Resistor 1 has a resistance of 2.5 ohms Resistor 2 has a...

power supply (E): 15V Resistor 1 has a resistance of 2.5 ohms Resistor 2 has a resistance of 4 ohms What is the current flowing through the Resistor 2? Bin ma
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V...

QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V = 15 Volts. What is the current I through the resistor? Express your answer in mA. QUESTION 2 5 points Save Answer Three resistors are connected in series: R1 10k Ohms, R2 = 17k Ohms, R3 = 32k Ohms. A DC voltage source ( Volts) is connected across the three resistors. Determine the current I in mA. 7 QUESTION 3 5 points Save Answer...

This is part (c) of a three part question. Eit RM w R2 The power supply...

This is part (c) of a three part question. Eit RM w R2 The power supply voltage is 15 V. Resistor 1 has a resistance of 1.5 Resistor 2 has a resistance of 3.0 22 What the current flowing out of the power supply? O correct answer not shown 15 A O SA O 10 A OOA
A resistor R is connected across a 120 V supply. A voltmeter of 10,000 ohms resistance...

A resistor R is connected across a 120 V supply. A voltmeter of 10,000 ohms resistance is connected between the center of the resistor and one side of the supply and reads 40 V. What is the value of the resistance R?
A circuit consists of two resistors connected in series with a power supply, as shown in...

A circuit consists of two resistors connected in series with a power supply, as shown in the figure. The resistance of ?1 is less than the resistance of ?2. A series circuit with two resistors R subscript 1 and R subscript 2. R subscript 1 is connected to the positive terminal of the power supply, and is the first resistor in the circuit. Which resistor has the greater current flowing through it? ?2 ?1 The current through each resistor is...

The resistor R in the figure below dissipates 19 W of power. Determine the value of...

The resistor R in the figure below dissipates 19 W of power. Determine the value of R. (Assume ΔV = 93 V.) R = Ω (larger value) R = Ω (smaller value) A circuit begins at a battery labeled ΔV. Following the wire leaving upwards from the positive terminal, the wire passes through a resistor labeled 5.0 Ω. Then, the wire goes right before it splits into two vertical wires, creating two parallel branches. The left wire has a resistor...
A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which...

A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which describes the voltage is v(t) = 20 sin (0.314159) t the amplitude of the current is =
A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which...

A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which describes the voltage is v(t) = 5 sin (0.1) t The period T is ___s

The circuit shown in the figure below contains three resistors (R1, R2, and R) and three...

The circuit shown in the figure below contains three resistors (R1, R2, and R) and three batteries and V. The resistor values are: Ry-2 Ohms, Ry-Ry 4 Ohms, and the battery voltages are VA-25V, V -15V, and Vc-20 V. When the circuit is connected, what will be the power dissipated by Ry? VC R VA V. R2 R O 1.25 W O 2.0w O 5.0 W O 6.25 W O 8.13 W L
