A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which...

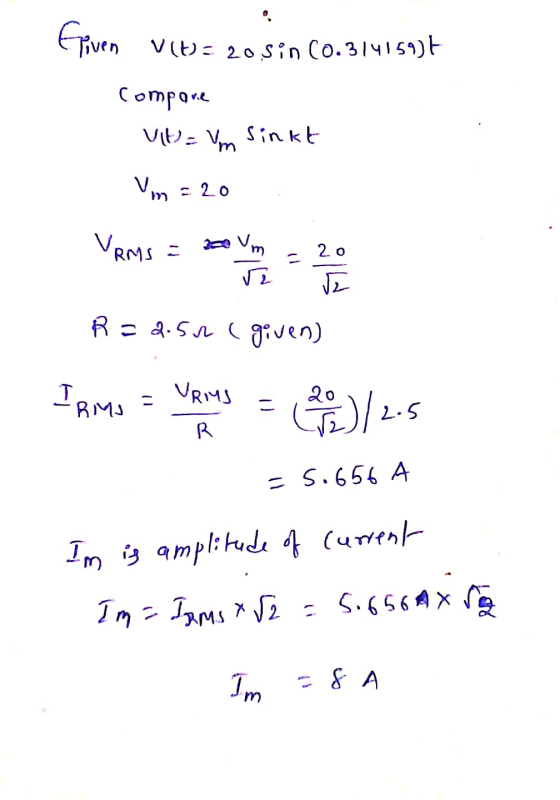

A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which describes the voltage is v(t) = 20 sin (0.314159) t
the amplitude of the current is =
Homework Answers
Add Answer to:
A sinusoidal voltage source was connected to a load with
resistance R=2.5 ohms The equation which...
A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which...
A sinusoidal voltage source was connected to a load with resistance R=2.5 ohms The equation which describes the voltage is v(t) = 5 sin (0.1) t The period T is ___s
A sinusoidal ac voltage source with a peak voltage of 28.3 V is connected across a...
A sinusoidal ac voltage source with a peak voltage of 28.3 V is connected across a pure resistive load. Choose the best answer for the dc voltage resulting in the same average power dissipated in the load? A) 28.3V B) 56.6 V C) 20 V D) 10 V
& w R R2 Each resistor has a resistance of 2.5 Ohms. The power supply voltage...
& w R R2 Each resistor has a resistance of 2.5 Ohms. The power supply voltage is 12 V. If the wire connected to the negative terminal of the power supply has a voltage of ov, then what is the voltage of the wire which is connecting the two resistors (the middle wire)? O 6V 4.8V O 30 V O correct answer not shown O 12V
A sinusoidal AC voltage source (with voltage amplitude Vo is connected to a resistor of resistance...
A
sinusoidal AC voltage source (with voltage amplitude Vo is
connected to a resistor of resistance R. Which table column
represents valid relationships for the circuit
Explain your reasoning
w History Bookmarks People Window Help 100% za- G search, Textbook Sc w19p ys out33 ×) d» Lakehead University x e 2) Ressors n par, x 1 G current througame × | 5 para- × )Assignment Score: 400 凵Resources Question 7 of 7> 茍 珀 V2R R 2R 2 R Which...
A battery of internal resistance 0.5 ohms is connected to a load of resistance 4 ohms....
A battery of internal resistance 0.5 ohms is connected to a load of resistance 4 ohms. If the battery has an EMF of 6.0 volts, what is the terminal voltage when it is under load?
681) Given a sinusoidal voltage source in series with R,L, and C. The sinusoidal frequency is...
681) Given a sinusoidal voltage source in series with R,L, and C. The sinusoidal frequency is 400 Hz. R=7 Ohms, L=4 milliHenry, C=100 microFarad, V=60sin(wt) volts. Determine the phasor current, phasor voltages across the capacitor, resistor, and inductor
2. (30 points) A voltage source v, with Thevenin resistance Rs = 5k 2 is connected...
2. (30 points) A voltage source v, with Thevenin resistance Rs = 5k 2 is connected to a two-stage amplifier. A trans-conductance stage is connected to the source and have an input resistance Ril = 10k 12, a short-circuit trans-conductance gain Gmi = 50m A/V and an output resistance R1 = 50k 12. The second trans-resistance stage is connected to the first stage and to the load RL = 7k 12, and have an input resistance Ri2 = 25k 12,...
1. (50 Points) angle phase voltage source supplies an RL load connected in parallel configuration throu...
1. (50 Points) angle phase voltage source supplies an RL load connected in parallel configuration throu given below: Load: R 500 and X j50 Ω. The voltage across the load is 20 kV. wire impedance : 2.5 +j20 Ω. Answer the following questions: (a) Represent the circuit in phasor domain. (b) Calculate the phasor current through the wire. (c) Calculate the voltage across the source. (d) Calculate the phasor current through the load resistance. (e) Calculate the complex power supplied...
A balanced delta connected load has a per phase impedance of 12+j21 ohms. The load is...
A balanced delta connected load has a per phase
impedance of 12+j21 ohms. The load is supplied power from a source
with line to line voltage of 480 V through a distribution line. The
line impedance is 2 + j4.5 ohms. What is the current magnitude in
the distribution line?
of the below questions. A balanced A connected load has a per-phase impedance of 12+,21 22. The load is supplied power from a source with line-to-line voltage of 480 V...
1. A resistor R and capacitor care connected in series with an AC voltage source with...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
& w R R2 Each resistor has a resistance of 2.5 Ohms. The power supply voltage is 12 V. If the wire connected to the negative terminal of the power supply has a voltage of ov, then what is the voltage of the wire which is connecting the two resistors (the middle wire)? O 6V 4.8V O 30 V O correct answer not shown O 12V
A
sinusoidal AC voltage source (with voltage amplitude Vo is
connected to a resistor of resistance R. Which table column
represents valid relationships for the circuit
Explain your reasoning
w History Bookmarks People Window Help 100% za- G search, Textbook Sc w19p ys out33 ×) d» Lakehead University x e 2) Ressors n par, x 1 G current througame × | 5 para- × )Assignment Score: 400 凵Resources Question 7 of 7> 茍 珀 V2R R 2R 2 R Which...
2. (30 points) A voltage source v, with Thevenin resistance Rs = 5k 2 is connected to a two-stage amplifier. A trans-conductance stage is connected to the source and have an input resistance Ril = 10k 12, a short-circuit trans-conductance gain Gmi = 50m A/V and an output resistance R1 = 50k 12. The second trans-resistance stage is connected to the first stage and to the load RL = 7k 12, and have an input resistance Ri2 = 25k 12,...
1. (50 Points) angle phase voltage source supplies an RL load connected in parallel configuration throu given below: Load: R 500 and X j50 Ω. The voltage across the load is 20 kV. wire impedance : 2.5 +j20 Ω. Answer the following questions: (a) Represent the circuit in phasor domain. (b) Calculate the phasor current through the wire. (c) Calculate the voltage across the source. (d) Calculate the phasor current through the load resistance. (e) Calculate the complex power supplied...
A balanced delta connected load has a per phase
impedance of 12+j21 ohms. The load is supplied power from a source
with line to line voltage of 480 V through a distribution line. The
line impedance is 2 + j4.5 ohms. What is the current magnitude in
the distribution line?
of the below questions. A balanced A connected load has a per-phase impedance of 12+,21 22. The load is supplied power from a source with line-to-line voltage of 480 V...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
