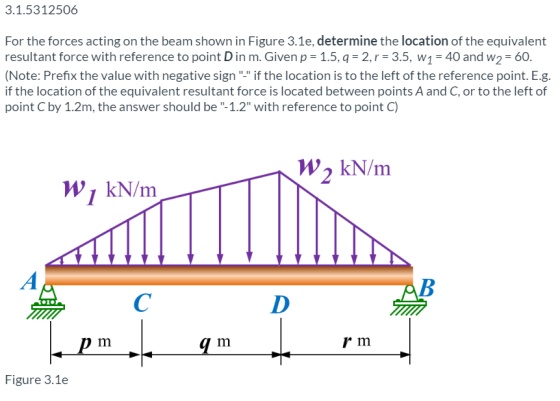

3.1.5312506 For the forces acting on the beam shown in Figure 3.1e, determine the location of...
3.1.0639365 For the forces acting on the beam shown in Figure 3.1g, determine the location of...

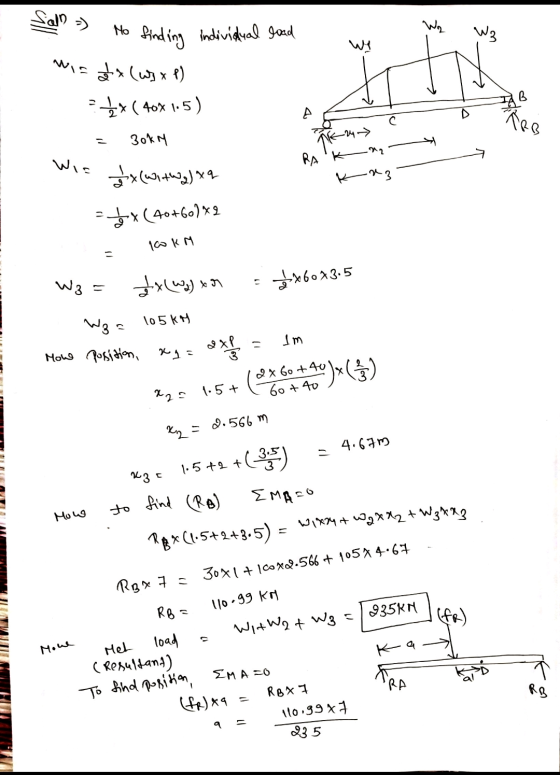

3.1.0639365 For the forces acting on the beam shown in Figure 3.1g, determine the location of the equivalent resultant force with reference to point A in m. Given / = 1.8, w1 = 15, w2 = 8, P1 = 8 and P2 = 16. (Note: Prefix the value with negative sign "-"if the location is to the left of the reference point. E.g. if the location of the equivalent resultant is located between points A and B, or to the...
For the left figure below, replace the distributed loads by an equivalent resultant force and a couple moment acting at point A.
For the left figure below, replace the distributed loads by an equivalent resultant force and a couple moment acting at point A. (See the right figure below.) Let a = 3.50 m, w1 = 5.90 kN/m, and w2 = 5.00 kN/m Calculate the resultant force, FR, and the couple moment, MR,A Don't forget to include the appropriate signs (consistent with the right figure) with your numerical answers.
eplace the loading by an equivalent resultant force and couple moment acting at point O. Suppose...
eplace the loading by an equivalent resultant force and couple moment acting at point O. Suppose that w1 = 8.5 kN/m and w2 = 4.5 kN/m
3.28 The resultant of the three forces is the force R = -220j kN acting through...
3.28 The resultant of the three forces is the force R = -220j kN acting through point B. Determine P, P2, and Pz. 2 m P2 Figure P3.28
The forces F1={−6i+4j−2k}kN and F2={5i−5j−2k}kN act on the endof the beam. Replace these forces by...
The forces F1={−6i+4j−2k}kN and F2={5i−5j−2k}kN act on the end
of the beam. Replace these forces by an equivalent force and couple
moment acting at point O.Determine the equivalent resultant couple moment about point O.
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK Given the beam and the external loading shown below, if L12m, w1700 N/m and w2 1,280 N/m, calculate: the magnitude and location of the equivalent resul...
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK Given the beam and the external loading shown below, if L12m, w1700 N/m and w2 1,280 N/m, calculate: the magnitude and location of the equivalent resultant force (a single equivalent force, for the whole loading block, NOT two equivalent forces from dividing into rectangular and triangular stress blocks). the reactions at the beam supports. W2 Units Resultant force FrNumber tolerance 1 N, magnitude only) Uni Location Xbar Number (tolerance 0.1 m, measured from...
Thanks For the left figure below, replace the distributed loads by an equivalent resultant force and...
Thanks
For the left figure below, replace the distributed loads by an equivalent resultant force and a couple moment acting at point A. (See the right figure below.) Let a = 3.05m, w1 = 5.95kN/m, and w2 = 4.60kN/m . Calculate the resultant force's magnitude FR, and the couple moment, MR,A Express your answers numerically in kilonewtons and kilonewton-meters to three significant figures separated by a comma.
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D....
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D. la) Replace the distributed loads in Figure 1 by an equivalent resultant force and locate its location with respect to A. {2 + 3 marks 1b) Calculate the reactions at supports A and D. {2 marks 1c) Calculate the shear force and bending moment at point C. {4 marks) 15 kN/m 6 kN/m D B q 3.0 m 3.0 m 3.0 m Figure 1
Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.
Problem 3: Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.
I want solving process 4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear...
I want solving process
4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear force V and bending moment M at a cross section just to the right of the 3.5 kN load acting on the simple beam AB shown in the figure. 3.5 kN 7 kN A B 0.75 m -1 .25 m 1.0 m 3.0 m PROBLEM 4.3-1
4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear force V and bending moment M...
3.1.0639365 For the forces acting on the beam shown in Figure 3.1g, determine the location of the equivalent resultant force with reference to point A in m. Given / = 1.8, w1 = 15, w2 = 8, P1 = 8 and P2 = 16. (Note: Prefix the value with negative sign "-"if the location is to the left of the reference point. E.g. if the location of the equivalent resultant is located between points A and B, or to the...
3.28 The resultant of the three forces is the force R = -220j kN acting through point B. Determine P, P2, and Pz. 2 m P2 Figure P3.28
The forces F1={−6i+4j−2k}kN and F2={5i−5j−2k}kN act on the end
of the beam. Replace these forces by an equivalent force and couple
moment acting at point O.Determine the equivalent resultant couple moment about point O.
THIS ASSIGNMENT CONTRIBUTES TO YOUR COURSE MARK Given the beam and the external loading shown below, if L12m, w1700 N/m and w2 1,280 N/m, calculate: the magnitude and location of the equivalent resultant force (a single equivalent force, for the whole loading block, NOT two equivalent forces from dividing into rectangular and triangular stress blocks). the reactions at the beam supports. W2 Units Resultant force FrNumber tolerance 1 N, magnitude only) Uni Location Xbar Number (tolerance 0.1 m, measured from...
Thanks
For the left figure below, replace the distributed loads by an equivalent resultant force and a couple moment acting at point A. (See the right figure below.) Let a = 3.05m, w1 = 5.95kN/m, and w2 = 4.60kN/m . Calculate the resultant force's magnitude FR, and the couple moment, MR,A Express your answers numerically in kilonewtons and kilonewton-meters to three significant figures separated by a comma.
The simply supported beam shown in Figure 1 is pin-supported at A and roller-supported at D. la) Replace the distributed loads in Figure 1 by an equivalent resultant force and locate its location with respect to A. {2 + 3 marks 1b) Calculate the reactions at supports A and D. {2 marks 1c) Calculate the shear force and bending moment at point C. {4 marks) 15 kN/m 6 kN/m D B q 3.0 m 3.0 m 3.0 m Figure 1
I want solving process
4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear force V and bending moment M at a cross section just to the right of the 3.5 kN load acting on the simple beam AB shown in the figure. 3.5 kN 7 kN A B 0.75 m -1 .25 m 1.0 m 3.0 m PROBLEM 4.3-1
4.3 Shear Forces and Bending Moments Introductory Problems 4.3-1) Calculate the shear force V and bending moment M...
