The ideal air passing through an insulated turbine goes from 1000K and 1500kPa to a pressure...

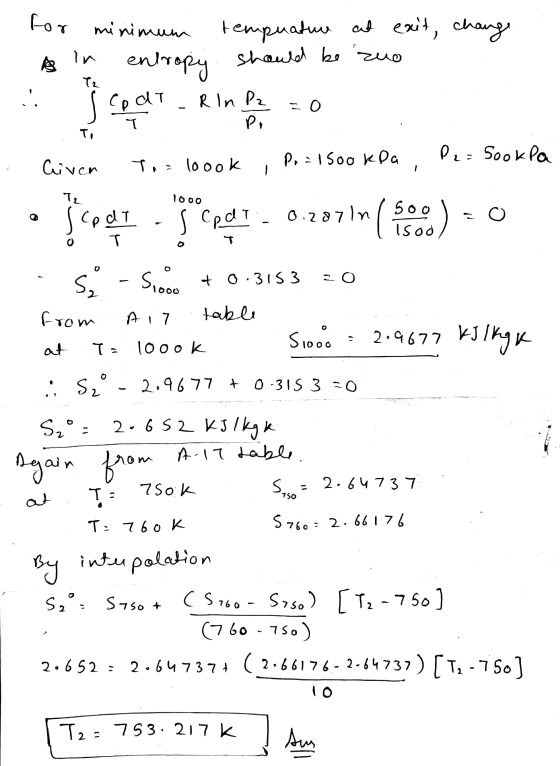

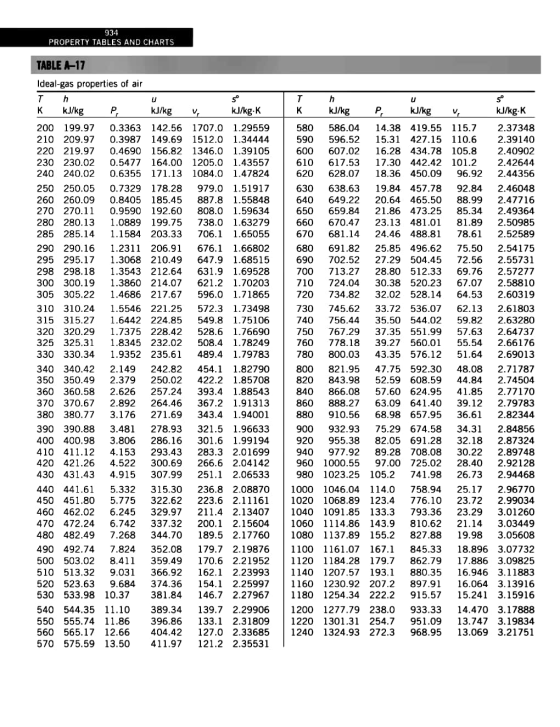

The ideal air passing through an insulated turbine goes from 1000K and 1500kPa to a pressure of 500kPa. What is the minimum temperature the turbine can have at the exit [K]? Do NOT assume constant specific heat.
Homework Answers
Add Answer to:
The ideal air passing through an insulated turbine goes from
1000K and 1500kPa to a pressure...
A Brayton cycle operates in air with a pressure ratio of 10. All components are ideal....
A Brayton cycle operates in air with a pressure ratio of 10. All components are ideal. The temperature at the inlet to the compressor is 400 K and the temperature at the inlet to the turbine is 2000 K. The kinetic energy at the inlet and exit of all components can be neglected. Assume that the working fluid has a constant cp=1000 J/kgK, and a specific ration of gamma=4. What is the compression work per unit mass? What is the...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature...
An adiabatic turbine operates at steady state. Air enters the turbine at a pressure and temperature of 800 kPa and 1100 K, respectively, and exits at 100 kPa. A temperature sensor at the turbine exit indicates that the exit air temperature is 700 K. Kinetic and potential energy effects are negligible, and the air can be treated as an ideal gas. Determine if the exit temperature reading can be correct. If yes, determine the turbine isentropic efficiency.
A jet engine propels an aircraft at 254 m/s through air at 39 kPa and 273 K. The compressor pressure ratio is 9 and the temperature at the turbine inlet is 873 K. b) Taking the pressure in the combust...
A jet engine propels an aircraft at 254 m/s through air at 39 kPa and 273 K. The compressor pressure ratio is 9 and the temperature at the turbine inlet is 873 K. b) Taking the pressure in the combustion chamber as 843.5 kPa and the temperature at the turbine exit to be 518 K, determine the velocity of the exhaust gases. Give your answer in m/s to 2 decimal places. Assume ideal operation for all components and constant specific...
High pressure air at 1300 K flows into an aircraft turbine and undergoes a steady-flow, steady-state...
High pressure air at 1300 K flows into an aircraft turbine and undergoes a steady-flow, steady-state adiabatic expansion. Using the average constant-pressure specific heat value of 1.138, determine the exit temperature [K] if the turbine is instead losing heat at a rate of 25 kJ/kg. For you analysis assume the work output is 728.3 kJ/kg.
Air, modeled as an ideal gas, enters a turbine operating at steady state at 450 kPa,...
Air, modeled as an ideal gas, enters a turbine operating at steady state at 450 kPa, 800 K and exits at 100 kPa. The temperature of the exiting air is 420 K. a) If the turbine is well insulated and you can ignore kinetic and potential energy effects, determine if the exit temperature can be correct. b) What if the exit temperature is 550 K? Explain you’re your reasoning. Hint: Find the entropy generation rate first.
A jet engine propels an aircraft at 254 m/s through air at 39 kPa and 273 K. The compressor pressure ratio is 9 and the temperature at the turbine inlet is 873 K. a) Determine the temperature of the a...
A jet engine propels an aircraft at 254 m/s through air at 39 kPa and 273 K. The compressor pressure ratio is 9 and the temperature at the turbine inlet is 873 K. a) Determine the temperature of the air as it enters the exit nozzle. Give your answer in Kelvin to 2 decimal places Assume ideal operation for all components and constant specific heats at room temperature. Take the properties of air at room temperature to be R =...
An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio of 10.9....
An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio of 10.9. Heat is added to the cycle at a rate of 748 kW; air passes through the engine at a rate of 2 kg/s; and the air at the beginning of the compression is at 70 kPa and 321 K. Determine assuming constant specific heats at room temperature. (1) The gas temperature at the exit of the compressor (2) The gas temperature at the entrance...
J. An adiabatie gas turbine espands air at 1300 kPa and 500P C to 100 kPa and 127"C Au ers turbine through a 02-...
J. An adiabatie gas turbine espands air at 1300 kPa and 500P C to 100 kPa and 127"C Au ers turbine through a 02-m opening with an average velocity of 40 m/s, and exhausts through a 1-m opening Detormine (a) the mass fnow rate of air through the turbine and (b) the power produced by the turbine For air, take the ideal gas constant and specific heat value at constant pressure as o Yue Determine (a) the mass flow rate...
Question B (15 marks) You are to analyze a combined cycle that consists of a gas (air) turbine cy...
Energy Convertion
hello, please help me quickly please please
thank you
Question B (15 marks) You are to analyze a combined cycle that consists of a gas (air) turbine cycle (top) ttom). The gas cycle has the following operating conditions: inlet pressure to compressor one bar inlet temperature-300 K operating pressure ratio-12 Maxmum allowable temperature 1150 °C adiabatic efficiency for compressor 0.83 adiabatic efficiency for turbine-0.87 - - The exhaust leaves stack at 120 °C after vaporizing water in the...
Air initially at 120 psia and 500*F is expanded by an adiabatic turbine to 15 psia...
Air initially at 120 psia and 500*F is expanded by an adiabatic turbine to 15 psia and 200* F. Assuming air can be treated as an ideal gas and has variable specific heat. a) Determine the specific work output of the actual turbine (Btu/lbm). b) Determine the amount of specific entropy generation during the irreversible process (Btu/lbm R). c) Determine the isentropic efficiency of this turbine (%). d) Suppose the turbine now operates as an ideal compressor (reversible and adiabatic)...
J. An adiabatie gas turbine espands air at 1300 kPa and 500P C to 100 kPa and 127"C Au ers turbine through a 02-m opening with an average velocity of 40 m/s, and exhausts through a 1-m opening Detormine (a) the mass fnow rate of air through the turbine and (b) the power produced by the turbine For air, take the ideal gas constant and specific heat value at constant pressure as o Yue Determine (a) the mass flow rate...
Energy Convertion
hello, please help me quickly please please
thank you
Question B (15 marks) You are to analyze a combined cycle that consists of a gas (air) turbine cycle (top) ttom). The gas cycle has the following operating conditions: inlet pressure to compressor one bar inlet temperature-300 K operating pressure ratio-12 Maxmum allowable temperature 1150 °C adiabatic efficiency for compressor 0.83 adiabatic efficiency for turbine-0.87 - - The exhaust leaves stack at 120 °C after vaporizing water in the...
