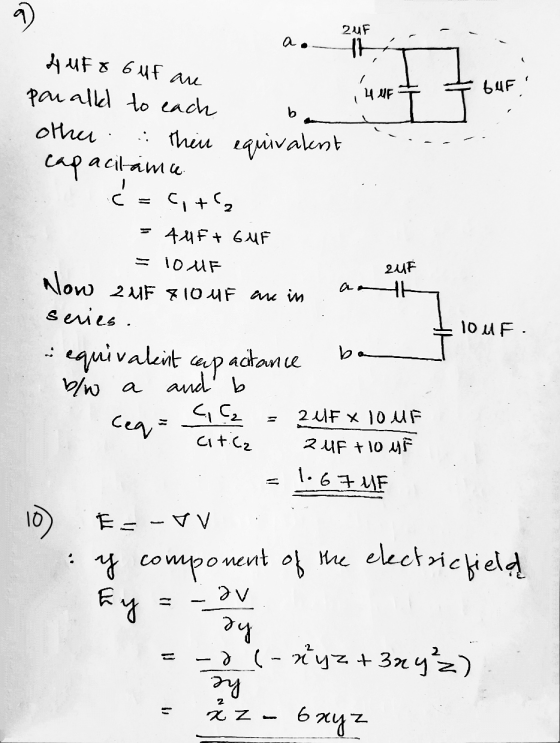

QUESTION Three capacitors are connected as shown in the figure. What is the equivalent capacitance in...
2 pts Question 5 Three capacitors are connected as shown in the figure. What is the...
2 pts Question 5 Three capacitors are connected as shown in the figure. What is the equivalent capacitance between points a and b? 2.0F 4.0 MF 6.0 F be O 7.1 uF O 4.0uF 12 JF O 1.7 uF O 8.0 pF
Six identical capacitors with capacitance C are connected as shown in the figure (Figure 1) ....
Six identical capacitors with capacitance
C
are connected as shown in the figure
(Figure 1)
.
1)What
is the potential difference between points a and b?
2)
What is the equivalent capacitance of these six
capacitors?
Six identical capacitors with capacitance C are connected as shown in the figure (Figure 1) What is the potential difference between points a and b? What is the equivalent capacitance of these six capacitors?
QUESTION 12 Four capacitors are connected as shown in the figure below. Find the equivalent capacitance...
QUESTION 12 Four capacitors are connected as shown in the figure below. Find the equivalent capacitance between the points a and b. 2.5 F 6.0 uF (3.5 -44 415 7.5 F Con = 1.0 PF Ceq = 11 pF Ceq = 20 pF Coq = 1.8 PF
Three capacitors are connected as shown. (a) If the capacitors all have an equal capacitance of...
Three capacitors are connected as shown. (a) If the capacitors all have an equal capacitance of 10uF, what is the equivalent capacitance of the circuit? Ci C2 (b) If the capacitors are charged with a 10 V battery, how much energy will the circuit store, in joules?
9. What is the equivalent capacitance of the combination of the capacitors as shown in figure?...
9. What is the equivalent capacitance of the combination of the capacitors as shown in figure? 313 o 2.5 H 3.33 4.4 3.1+10-13.13pF 0.30 μF 10. What is the equivalent capacitance of the combination of the capacitors as shown in figure? 0 2.5 uF .1: 343+2S: 5.43p 10 μF 3.33 +
Capacitors of capacitance 7.00 microfarads and 13.0 microfarads are connected in parallel to each other and...
Capacitors of capacitance 7.00 microfarads and 13.0 microfarads are connected in parallel to each other and parallel to a 12.0 V battery. (a) What is their equivalent capacitance? (b) What is the charge on the 7.00 microfarad capacitor? (c) What is the potential difference across the 13.0 microfarad capacitor?
CAPACITANCE In the circuit shown in Figure 1 below the capacitors are connected with an applied...
CAPACITANCE In the circuit shown in Figure 1 below the capacitors are connected with an applied de potential difference across terminals a-b of V.- 200.0V. The capacitors have values C - 3.0 F, C = 3.0 uF, C, -6.0 pF, and C -6.0 F. Figure 1 Calculate the equivalent capacitance of the circuit. 1(a) ANSWER 1(b) Calculate the potential difference between locations c and don the circuit. ANSWER
Problem 5 i) Determine the equivalent capacitance for the system of capacitors shown in figure (18.45),...
Problem 5 i) Determine the equivalent capacitance for the system of capacitors shown in figure (18.45), if C1 2HF, 2 4F and C3 3pF. ii) Determine the charge on the capacitors C1, C2 and C3, that are closest to the points A and B, when the potential difference between points A and B, VA VB 200V. ii) Determine the potential difference between point C and D, Vc - VD Problem 6 uF is connectedy a 20V battery. After Me A...
What is the equivalent capacitance of the three capacitors in the figure below? What is the...
What is the equivalent capacitance of the three capacitors in the figure below? What is the equivalent capacitance of the three capacitors in the figure below? What are the charge on and the potential difference across each capacitor the figure below?
What is the equivalent capacitance of the three capacitors in Figure P23.36? 36. Il What is...
What is the equivalent capacitance of the three capacitors in
Figure P23.36?
36. Il What is the equivalent capacitance of the three capacitors in Figure P23.36? 20 μF FIGURE P23.36 FIGURE P23.37
2 pts Question 5 Three capacitors are connected as shown in the figure. What is the equivalent capacitance between points a and b? 2.0F 4.0 MF 6.0 F be O 7.1 uF O 4.0uF 12 JF O 1.7 uF O 8.0 pF
Six identical capacitors with capacitance
C
are connected as shown in the figure
(Figure 1)
.
1)What
is the potential difference between points a and b?
2)
What is the equivalent capacitance of these six
capacitors?
Six identical capacitors with capacitance C are connected as shown in the figure (Figure 1) What is the potential difference between points a and b? What is the equivalent capacitance of these six capacitors?
QUESTION 12 Four capacitors are connected as shown in the figure below. Find the equivalent capacitance between the points a and b. 2.5 F 6.0 uF (3.5 -44 415 7.5 F Con = 1.0 PF Ceq = 11 pF Ceq = 20 pF Coq = 1.8 PF
Three capacitors are connected as shown. (a) If the capacitors all have an equal capacitance of 10uF, what is the equivalent capacitance of the circuit? Ci C2 (b) If the capacitors are charged with a 10 V battery, how much energy will the circuit store, in joules?
9. What is the equivalent capacitance of the combination of the capacitors as shown in figure? 313 o 2.5 H 3.33 4.4 3.1+10-13.13pF 0.30 μF 10. What is the equivalent capacitance of the combination of the capacitors as shown in figure? 0 2.5 uF .1: 343+2S: 5.43p 10 μF 3.33 +
CAPACITANCE In the circuit shown in Figure 1 below the capacitors are connected with an applied de potential difference across terminals a-b of V.- 200.0V. The capacitors have values C - 3.0 F, C = 3.0 uF, C, -6.0 pF, and C -6.0 F. Figure 1 Calculate the equivalent capacitance of the circuit. 1(a) ANSWER 1(b) Calculate the potential difference between locations c and don the circuit. ANSWER
Problem 5 i) Determine the equivalent capacitance for the system of capacitors shown in figure (18.45), if C1 2HF, 2 4F and C3 3pF. ii) Determine the charge on the capacitors C1, C2 and C3, that are closest to the points A and B, when the potential difference between points A and B, VA VB 200V. ii) Determine the potential difference between point C and D, Vc - VD Problem 6 uF is connectedy a 20V battery. After Me A...
What is the equivalent capacitance of the three capacitors in the figure below? What is the equivalent capacitance of the three capacitors in the figure below? What are the charge on and the potential difference across each capacitor the figure below?
What is the equivalent capacitance of the three capacitors in
Figure P23.36?
36. Il What is the equivalent capacitance of the three capacitors in Figure P23.36? 20 μF FIGURE P23.36 FIGURE P23.37
