3. Using the project information below, draw the AON diagram, complete forward and backward pass, and identify the critical p
business   Operations-Management
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

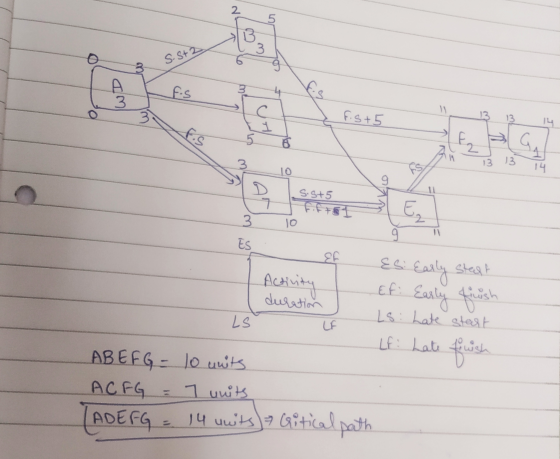

The AON diagram is provided in the attached picture. Each box represents an activity with its name and duration written within the box and all four corners, i.e, Top left, top right, bottom left and bottom right have the information about Early start, Easrly Finish, Laste start and Late finish respectively. Same symbolic representatin is described in the picture too.

All the forward and backward calculations are mentioned as described above on each activity box.

The Critical path has double arrows. ABEFG is the critical path. Critical path is the longest duration path amongst all the available paths. On critical path, Early start of Each node is equal to Late start and Early finish of each node is equal to Late finish.
