Add Answer to:

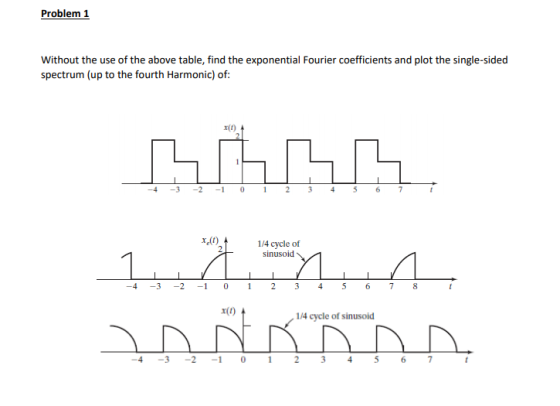

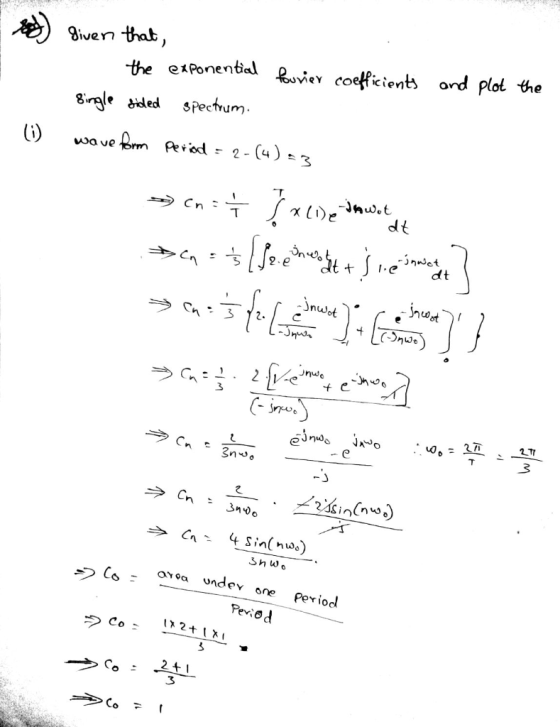

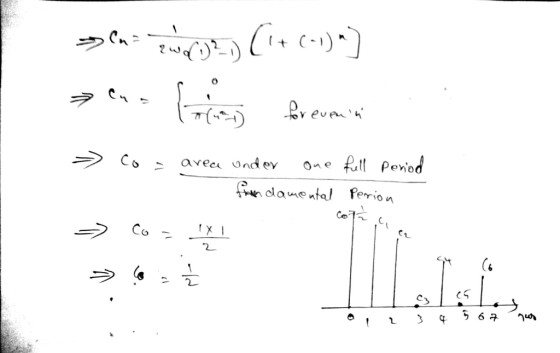

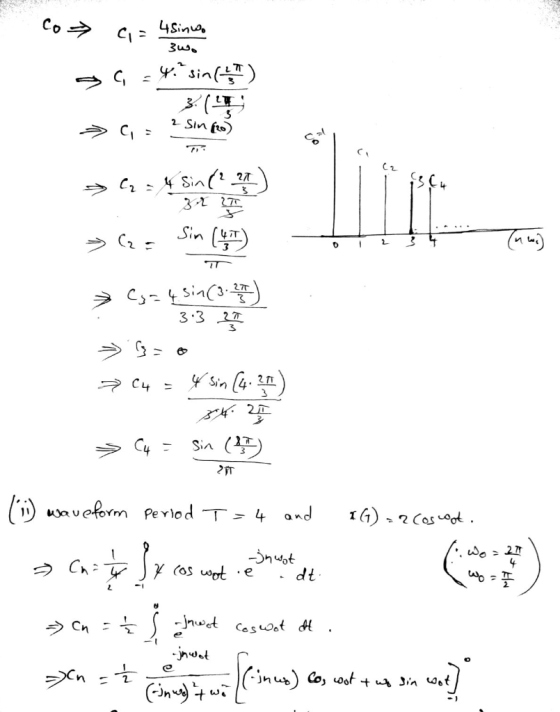

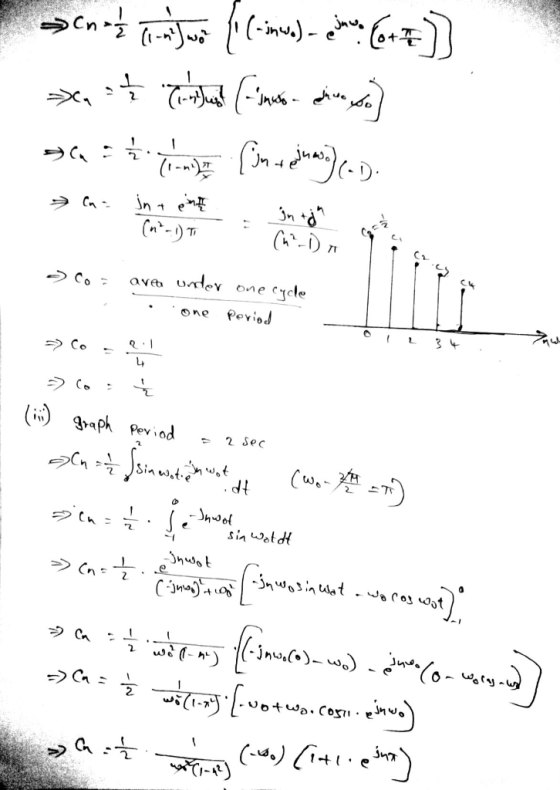

Problem 1 Without the use of the above table, find the exponential Fourier coefficients and plot...
2.10-3 Using direct integration, numerically derive and plot the exponential Fourier series coefficients of the followi...
2.10-3 Using direct integration, numerically derive and plot the exponential Fourier series coefficients of the following periodic signals: (a) The signal waveform of Figure P2.1-5 (b) The signal waveform of Figure P2.1-10(a) (c) The signal waveform of Figure P2.1-10(f) 2.10-4 Using the FFT method, repeat Problem 2.10-3. e P2.1-5 g (t) -6 4 -8
2.10-3 Using direct integration, numerically derive and plot the exponential Fourier series coefficients of the following periodic signals: (a) The signal waveform of Figure P2.1-5 (b)...
Part 1: Exponential Fourier series The following MATLAB code calculates the exponential Fourier series coefficient for...
Part 1: Exponential Fourier series The following MATLAB code calculates the exponential Fourier series coefficient for the signal x(t) shown in the figure below, plots it's double sided amplitude spectrum IDn l, double sided phase spectrem LDn, and the resulting signal xn(t). 4r 4a Periodic signal x(t) 1.1 Show that the complex Fourier Series Coefficients written as: D 1.2 Use the following Matlab to general the two sided spectral line. 1.3 Execute the Matlab code with To = 2π and...
The complex exponential Fourier series of a real even signal has non-zero coefficients for non- negative...
The complex exponential Fourier series of a real even signal has non-zero coefficients for non- negative k given by k a_k 0 2 1 3 2 -1 3 0.5 4 1 5 -2 a. What are the values for negative k? b. What is the energy in the fundamental frequency? What is the energy in the third and fourth harmonics? d. What is the Fourier series in terms of sines and cosine if 0, = 3? C.
8. The complex exponential Fourier series of a real even signal has non-zero coefficients for non-negative...
8. The complex exponential Fourier series of a real even signal
has non-zero coefficients for non-negative k given by
a. What are the values for negative k?
b. What is the energy in the fundamental frequency?
c. What is the energy in the third and fourth harmonics?
d. What is the Fourier series in terms of sines and cosine
if ?
a_k 2 0 1 3 2 -1 3 0.5 4 1 5 -2 We were unable to transcribe this image
f) Calculate the coefficients of the trigonometric form of the Fourier series numerically in MATLAB and...
f) Calculate the coefficients of the trigonometric form of the Fourier series
numerically in MATLAB and graphically represent the one-sided spectrum
(width and phase) frequency for n up to 10 compared to the analytics results.
g) From the coefficients of the trigonometric form of the Fourier series ,
calculate the coefficients of the exposure series and present the two-sided spectrum (width and phase) frequency.
h) Find the average and active value of the signal from the Fourier expansion.
i) Check...
Problem 2: For the signal g(t) t, a) (25 points) Find the exponential Fourier series to...
Problem 2: For the signal g(t) t, a) (25 points) Find the exponential Fourier series to represent g(t) over the interval (-π, π). Sketch the spectra (amplitude and phase of Fourier series coefficients). b) (25 points) Find the average power of g(t) within interval (- ,r). Using this result and given that Σ00.-6, verify the Parseval's theorem
1. Periodic signals with period To can be presented by Fourier Series in Complex Exponential or...
1. Periodic signals with period To can be presented by Fourier Series in Complex Exponential or Trigonometric form. i.e. X(t) = a ewa, H or where Mx = 2|az|; 0x = Zat Find the Fourier series coefficients at, as well as My and et, for the following signals. . (a). Sinusoidal: X(t) = sin 277. A (b). Square: -A TO Procedures: Use the Signal Generator to generate the above signals according to the setting listed in Table I and measure...
The Fourier transform of (t) is plotted below. In the following two graphs, plot the Fourier...
The Fourier transform of (t) is plotted below. In the following two graphs, plot the Fourier transforms of xf21) and xt/2). Fourier (1) MM Fourier (21) 3 L 2 4 5 6 Fourier (12)
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential Fourier coefficients...
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential Fourier coefficients for k+oo a ()-ΣGeko, k-oo where c is given by T/2 1 (t)ek dt J-T/2 Ck= T (b) r(t) is applied as an input to an LTI system whose frequency response is H(ju)=2 sin(w Determine the corresponding output y(t) (e) Sketch y(t). Be sure to mark the axes properly -JT
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential...
(20 points) 1. (8 points) Suppose that f(t) is a periodic signal with exponential Fourier series ...
(20 points) 1. (8 points) Suppose that f(t) is a periodic signal with exponential Fourier series coefficients Dn. Show that the power P of f(t) is This is Parseval's theorem for the exponential Fourier series. 2. (12 points) If f(t) is real-valued, Parseval's theorem can be as a) (3 points) Find the power of the PWM signal shown in figure 1. Hint: for this part don't use Parseval's theorem b) (9 points) Use Parseval's theorem for a real-valued signal to...
2.10-3 Using direct integration, numerically derive and plot the exponential Fourier series coefficients of the following periodic signals: (a) The signal waveform of Figure P2.1-5 (b) The signal waveform of Figure P2.1-10(a) (c) The signal waveform of Figure P2.1-10(f) 2.10-4 Using the FFT method, repeat Problem 2.10-3. e P2.1-5 g (t) -6 4 -8
2.10-3 Using direct integration, numerically derive and plot the exponential Fourier series coefficients of the following periodic signals: (a) The signal waveform of Figure P2.1-5 (b)...
Part 1: Exponential Fourier series The following MATLAB code calculates the exponential Fourier series coefficient for the signal x(t) shown in the figure below, plots it's double sided amplitude spectrum IDn l, double sided phase spectrem LDn, and the resulting signal xn(t). 4r 4a Periodic signal x(t) 1.1 Show that the complex Fourier Series Coefficients written as: D 1.2 Use the following Matlab to general the two sided spectral line. 1.3 Execute the Matlab code with To = 2π and...
The complex exponential Fourier series of a real even signal has non-zero coefficients for non- negative k given by k a_k 0 2 1 3 2 -1 3 0.5 4 1 5 -2 a. What are the values for negative k? b. What is the energy in the fundamental frequency? What is the energy in the third and fourth harmonics? d. What is the Fourier series in terms of sines and cosine if 0, = 3? C.
8. The complex exponential Fourier series of a real even signal
has non-zero coefficients for non-negative k given by
a. What are the values for negative k?
b. What is the energy in the fundamental frequency?
c. What is the energy in the third and fourth harmonics?
d. What is the Fourier series in terms of sines and cosine
if ?
a_k 2 0 1 3 2 -1 3 0.5 4 1 5 -2 We were unable to transcribe this image
f) Calculate the coefficients of the trigonometric form of the Fourier series
numerically in MATLAB and graphically represent the one-sided spectrum
(width and phase) frequency for n up to 10 compared to the analytics results.
g) From the coefficients of the trigonometric form of the Fourier series ,
calculate the coefficients of the exposure series and present the two-sided spectrum (width and phase) frequency.
h) Find the average and active value of the signal from the Fourier expansion.
i) Check...
Problem 2: For the signal g(t) t, a) (25 points) Find the exponential Fourier series to represent g(t) over the interval (-π, π). Sketch the spectra (amplitude and phase of Fourier series coefficients). b) (25 points) Find the average power of g(t) within interval (- ,r). Using this result and given that Σ00.-6, verify the Parseval's theorem
1. Periodic signals with period To can be presented by Fourier Series in Complex Exponential or Trigonometric form. i.e. X(t) = a ewa, H or where Mx = 2|az|; 0x = Zat Find the Fourier series coefficients at, as well as My and et, for the following signals. . (a). Sinusoidal: X(t) = sin 277. A (b). Square: -A TO Procedures: Use the Signal Generator to generate the above signals according to the setting listed in Table I and measure...
The Fourier transform of (t) is plotted below. In the following two graphs, plot the Fourier transforms of xf21) and xt/2). Fourier (1) MM Fourier (21) 3 L 2 4 5 6 Fourier (12)
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential Fourier coefficients for k+oo a ()-ΣGeko, k-oo where c is given by T/2 1 (t)ek dt J-T/2 Ck= T (b) r(t) is applied as an input to an LTI system whose frequency response is H(ju)=2 sin(w Determine the corresponding output y(t) (e) Sketch y(t). Be sure to mark the axes properly -JT
6- A contiuous-time periodic signal x(t) is given graphically below. (a) Determine the exponential...
(20 points) 1. (8 points) Suppose that f(t) is a periodic signal with exponential Fourier series coefficients Dn. Show that the power P of f(t) is This is Parseval's theorem for the exponential Fourier series. 2. (12 points) If f(t) is real-valued, Parseval's theorem can be as a) (3 points) Find the power of the PWM signal shown in figure 1. Hint: for this part don't use Parseval's theorem b) (9 points) Use Parseval's theorem for a real-valued signal to...
