Question

Consider the circuit shown in (Figure 1). Suppose that va = 5 V, vb = 8...

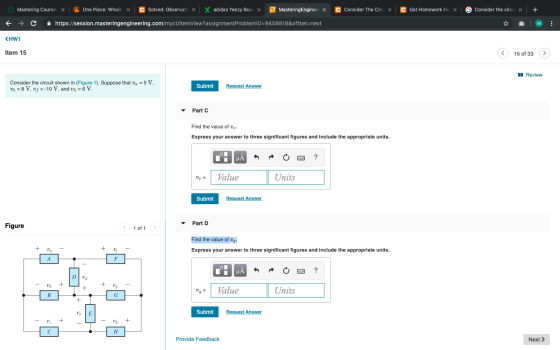

Consider the circuit shown in (Figure 1). Suppose that va = 5 V, vb = 8 V, vf = -10 V, and vh = 6 V.

Find the value of vc.

Find the value of vd.

Find the value of ve.

Find the value of vg.

0 0
Add a comment Improve this question Transcribed image text
Answer #1

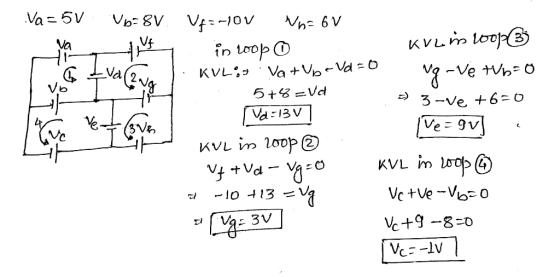

Va=5V Lleve VpE8V. VF-100 Vps 6V fut in coop Krain loop 6 1: KUL;) Va+Upevd=0 ve ng - Ve tub=0 - 5+8=Vd >> 3-ve +6=0 Vd=13V v

Add a comment
