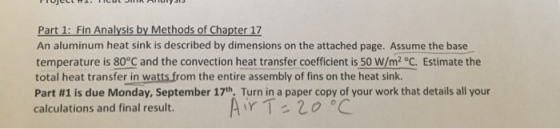

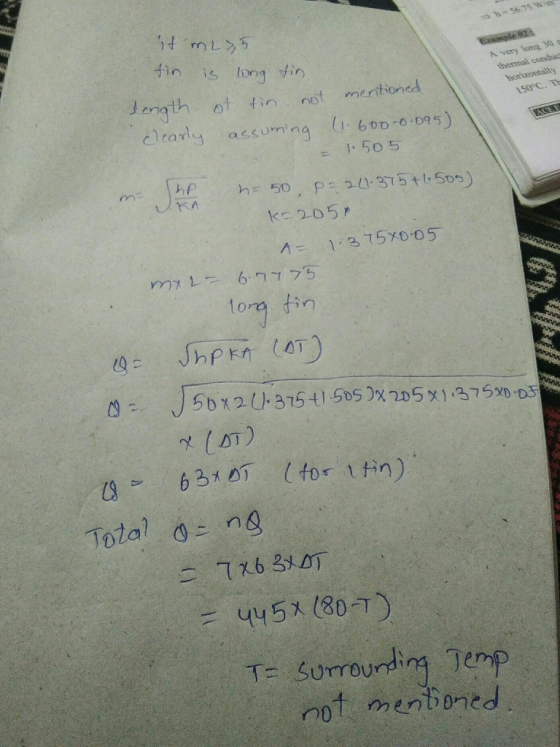

Part 1: Fin Analysis by Methods of Chapter 17 An aluminum heat sink is described by...
Consider a very long aluminum fin (k = 237W/m-K) fin
Consider a very long aluminum fin (k = 237W/m-K) fin, with the temperature at the end of the fin essentially that of the surrounding air. This fin has a diameter of lcm, and is attached to a surface at 80°C. The surface is exposed to ambient air at 22°C with a heat transfer coefficient of 15W/m2-K. Estimate: a) The fin temperature at a distance of 5cm from the base; b) The rate of heat loss from the entire fin; c) The effectiveness of...
1) An aluminum fin is attached to a warm surface at a steady temperature Tb. The...

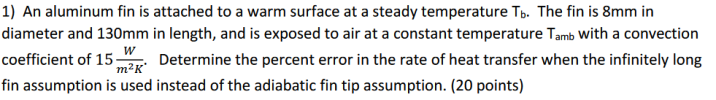

1) An aluminum fin is attached to a warm surface at a steady temperature Tb. The fin is 8mm in diameter and 130mm in length, and is exposed to air at a constant temperature Tamb with a convection coefficient of 15 Determine the percent error in the rate of heat transfer when the infinitely long fin assumption is used instead of the adiabatic fin tip assumption. (20 points)
It's a heat transfer question. The chip is square with dimensions 15mm by 15mm and 5mm...
It's a heat transfer question. The chip is square with dimensions 15mm by 15mm and 5mm thickness with constant temperature Tc = 87 degrees C. At the top surface, 20 pin fins with convective ends are attached to the chip. The diameter of each fin, Dp = 1.5 mm, the length of each fin, Lp = 15 mm, and the thermal conductivity Kp = 400W/mK (For chip and fins). The convection coefficient, h = 50 W/(m2·K), and fluid temperature of...
It's a heat transfer question. Please do not copy from others, thank you. The chip is...
It's a heat transfer question. Please do not copy from others, thank you. The chip is square with dimensions 15mm by 15mm and 5mm thickness with constant temperature Tc = 87 degrees C at the bottom of the chip. At the top surface, 20 pin fins with convective ends are attached to the chip. Above the chip, we have the 20 fins plus we also have the exposed board area, which is total area of the chip minus the base...
Use k=320 W/mK for your calculation Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins...
Use k=320 W/mK for your calculation Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 370 .p=2800 900 ke), shown in the accompanying figure, are used to remove heat from a surface whose temperature is T, = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190 Determine the temperature distribution along a fin. 20 mm 150°C
1. A fin with a diameter of 5 mm, a length of 100 mm, and a...
1. A fin with a diameter of 5 mm, a length of 100 mm, and a thermal conductivity of 133 w/m"C is attached to a base plate, which is at 200 oC. The fin is surrounded by a fluid at 20 ° C, and has a convection heat transfer coefficient of 30 W/(m2. c). 1.1 compute the temperature of the rod at 20 mm, 60 mm, and 100 mm points from the base 1.2 compute the total heat transfer rate...
W kg m-K m3 Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle...
W kg m-K m3 Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 290 p = 2800 ,C= 900 shown in the accompanying figure, are used to remove heat from a surface kg-K whose temperature is T, = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190, Determine the temperature distribution along a fin. w m-K Air To, h 20...
It's a heat transfer question. The chip is square with dimensions 15mm by 15mm and 5mm...
It's a heat transfer question. The chip is square with dimensions 15mm by 15mm and 5mm thickness with constant temperature Tc = 87 degrees C at the bottom of the chip. At the top surface, 20 pin fins with convective ends are attached to the chip. Above the chip, we have the 20 fins plus we also have the exposed board area, which is total area of the chip minus the base area of the 20 fins. The diameter of...
1) 2) 3) PROJECT #1 (2.5 Marks): The heat that is conducted through a body must...
1)
2)
3)
PROJECT #1 (2.5 Marks): The heat that is conducted through a body must frequently be removed by other heat transter processes. For example, the heat generated in an electronic device must be dissipated to the surroundings through convection by means of fins. Consider the one-dimensional aluminum fin (thickness t 3.0 mm, width Z 20 cm, length L) shown in Figure 1, that is exposed to a surrounding fluid at a temperature 1. The conductivity of the aluminum...
1) An aluminum fin is attached to a warm surface at a steady temperature Tb. The fin is 8mm in diameter and 130mm in length, and is exposed to air at a constant temperature Tamb with a convection coefficient of 15 Determine the percent error in the rate of heat transfer when the infinitely long fin assumption is used instead of the adiabatic fin tip assumption. (20 points)
Use k=320 W/mK for your calculation Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 370 .p=2800 900 ke), shown in the accompanying figure, are used to remove heat from a surface whose temperature is T, = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190 Determine the temperature distribution along a fin. 20 mm 150°C
1. A fin with a diameter of 5 mm, a length of 100 mm, and a thermal conductivity of 133 w/m"C is attached to a base plate, which is at 200 oC. The fin is surrounded by a fluid at 20 ° C, and has a convection heat transfer coefficient of 30 W/(m2. c). 1.1 compute the temperature of the rod at 20 mm, 60 mm, and 100 mm points from the base 1.2 compute the total heat transfer rate...
W kg m-K m3 Two-Dimensional Steady and transient Conduction - Heat Sink Aluminum fins with triangle profiles (k = 290 p = 2800 ,C= 900 shown in the accompanying figure, are used to remove heat from a surface kg-K whose temperature is T, = 150°C. The temperature of the surrounding air is 20°C. The natural heat transfer coefficient associated with the surrounding air is h = 190, Determine the temperature distribution along a fin. w m-K Air To, h 20...
1)
2)
3)
PROJECT #1 (2.5 Marks): The heat that is conducted through a body must frequently be removed by other heat transter processes. For example, the heat generated in an electronic device must be dissipated to the surroundings through convection by means of fins. Consider the one-dimensional aluminum fin (thickness t 3.0 mm, width Z 20 cm, length L) shown in Figure 1, that is exposed to a surrounding fluid at a temperature 1. The conductivity of the aluminum...
