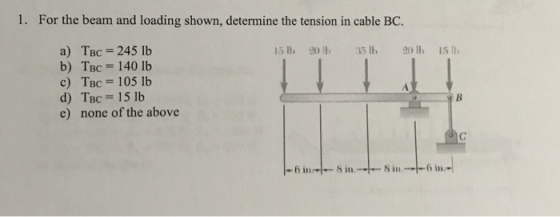

1. For the beam and loading shown, determine the tension in cable BC. a) TBc 245...
d loading shown below, we assume the structure is in eav rmine Q4: For the beam...

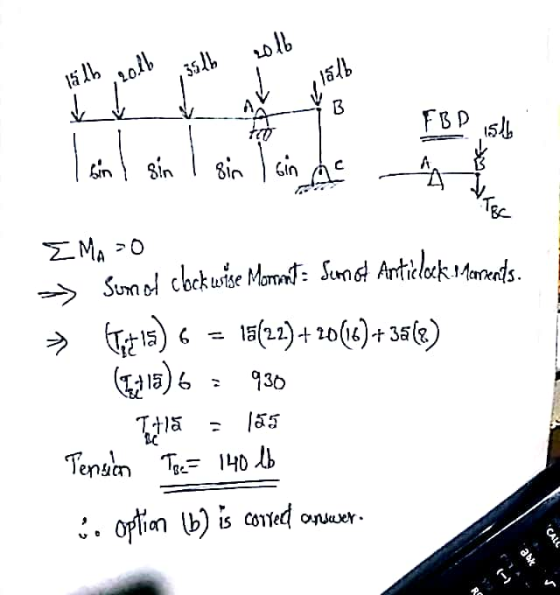

d loading shown below, we assume the structure is in eav rmine Q4: For the beam and (a) the reaction at A, (b) the tension force in cable BC ading shown below, we assume the structure is in equilibrium, dete 15 lb 20 lb 35 lb 20 lb 15 lb hat
Can you please solve this question it is statics 1. The cable AB is attached to the beam BC as shown in the figure....
Can
you please solve this question it is statics
1. The cable AB is attached to the beam BC as shown in the figure. If the cable AB can sustain tension up to 600 N, determine the maximum (w) 30\ В 15 m 15 m
Determine the tension in cables AB, BC, and CD necessary to support the 11-kg and 17-kg...
Determine the tension in cables AB, BC, and CD necessary to support the 11-kg and 17-kg traffic lights at B and C, respectively. Also, find the angle θ. 15°) в OP OP OP Q Tap image to zoom Part A Determine the tension in cable AB. Part A Determine the tension in cable AB Express your answer to three significant figures and include the appropriate units. TAB= 417N Correct Part B Determine the tension in cable BC Express your answer...
7.5 For the structure loaded as shown below, calculate the tension in cable AB and the...
7.5 For the structure loaded as shown below, calculate the tension in cable AB and the reaction forces at pin C for the case where L = 8 ft. (Ans. TAB-6,212.90 lb, Cx 5,840.13 lb, Cy 875.0 lb) 20° 2L 2,500 lb 500 lb 7.6 Calculate the reaction forces at point A and the tension in cable BC for the given structure. (Ans. T-2, 121.32 N, Ax = 1,500 N, A,-3,500 N) 1.5 m B 2,000 N : 2 m...
Determine the required tension in cable BC if the resultant of the three forces exerted at...
Determine the required tension in cable BC if the
resultant of the three forces exerted at Point B is to be
vertical.
The required tension in cable BC is _____N
Determine the corresponding magnitude of the resultant.
The corresponding magnitude of the resultant is _____N
Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N
The beam has a rectangular cross section and is subjected to the loading shown. Determine the...
The beam has a rectangular cross section and is subjected to the loading shown. Determine the state of stress at point B. Take F1 420 lb, F2 530 lb (Figure 1) Part A Find ? Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive in case of tension ?,-1 Value Units Submit Request Answer Figure < 1of1 ? Part B Find ? Express your answer to three...
For the cantilever beam and loading shown, determine the slope and deflection at point B. Use...
For the cantilever beam and loading shown, determine the slope and deflection at point B. Use E = 32 x 106 psi. 125 lb 15 lb/in 1.75 in B 30 in 10 in. The slope at end Bis x 107 rad. The deflection at end B is in.
For the cantilever beam and loading shown, determine the slope and deflection at end C. Use...
For the cantilever beam and loading shown, determine the slope and deflection at end C. Use E= 28 × 106 psi. 125 lb 15 lb/in. 1.75 in. |A 30 in. 10 in. x 10-3 The slope at end Cis rad. * in. Į The deflection at end Cis
Determine the reactions at A and D. Determine the tension in the cable. D 4 ft...
Determine the reactions at A and D. Determine the tension in the cable. D 4 ft 20 lb/ft 25 lb-ft 3ft E A 4 ft 10 ft 2 ft B
2. The box beam is subjected to the loading shown. Determine the principal stresses in the...
2. The box beam is subjected to the loading shown. Determine the principal stresses in the beam at point A, marked in red. 800 lb 1200 lb 5 in. . A 5 in.I A18 in. 8 in. 63 -3 ft- -5 ft 42.5 4-1-2.5 t-
d loading shown below, we assume the structure is in eav rmine Q4: For the beam and (a) the reaction at A, (b) the tension force in cable BC ading shown below, we assume the structure is in equilibrium, dete 15 lb 20 lb 35 lb 20 lb 15 lb hat
Can
you please solve this question it is statics
1. The cable AB is attached to the beam BC as shown in the figure. If the cable AB can sustain tension up to 600 N, determine the maximum (w) 30\ В 15 m 15 m
Determine the tension in cables AB, BC, and CD necessary to support the 11-kg and 17-kg traffic lights at B and C, respectively. Also, find the angle θ. 15°) в OP OP OP Q Tap image to zoom Part A Determine the tension in cable AB. Part A Determine the tension in cable AB Express your answer to three significant figures and include the appropriate units. TAB= 417N Correct Part B Determine the tension in cable BC Express your answer...
7.5 For the structure loaded as shown below, calculate the tension in cable AB and the reaction forces at pin C for the case where L = 8 ft. (Ans. TAB-6,212.90 lb, Cx 5,840.13 lb, Cy 875.0 lb) 20° 2L 2,500 lb 500 lb 7.6 Calculate the reaction forces at point A and the tension in cable BC for the given structure. (Ans. T-2, 121.32 N, Ax = 1,500 N, A,-3,500 N) 1.5 m B 2,000 N : 2 m...
Determine the required tension in cable BC if the
resultant of the three forces exerted at Point B is to be
vertical.
The required tension in cable BC is _____N
Determine the corresponding magnitude of the resultant.
The corresponding magnitude of the resultant is _____N
Consider the force system shown in the figure below where P = 530 N. - 840 mm - L= 1160 mm 800 mm B 780 N
The beam has a rectangular cross section and is subjected to the loading shown. Determine the state of stress at point B. Take F1 420 lb, F2 530 lb (Figure 1) Part A Find ? Express your answer to three significant figures and include the appropriate units. Enter negative value in the case of compression and positive in case of tension ?,-1 Value Units Submit Request Answer Figure < 1of1 ? Part B Find ? Express your answer to three...
For the cantilever beam and loading shown, determine the slope and deflection at point B. Use E = 32 x 106 psi. 125 lb 15 lb/in 1.75 in B 30 in 10 in. The slope at end Bis x 107 rad. The deflection at end B is in.
For the cantilever beam and loading shown, determine the slope and deflection at end C. Use E= 28 × 106 psi. 125 lb 15 lb/in. 1.75 in. |A 30 in. 10 in. x 10-3 The slope at end Cis rad. * in. Į The deflection at end Cis
Determine the reactions at A and D. Determine the tension in the cable. D 4 ft 20 lb/ft 25 lb-ft 3ft E A 4 ft 10 ft 2 ft B
2. The box beam is subjected to the loading shown. Determine the principal stresses in the beam at point A, marked in red. 800 lb 1200 lb 5 in. . A 5 in.I A18 in. 8 in. 63 -3 ft- -5 ft 42.5 4-1-2.5 t-
