Oil at 500K is to be cooled at a rate of 5000 kg/hr in a counter-current...

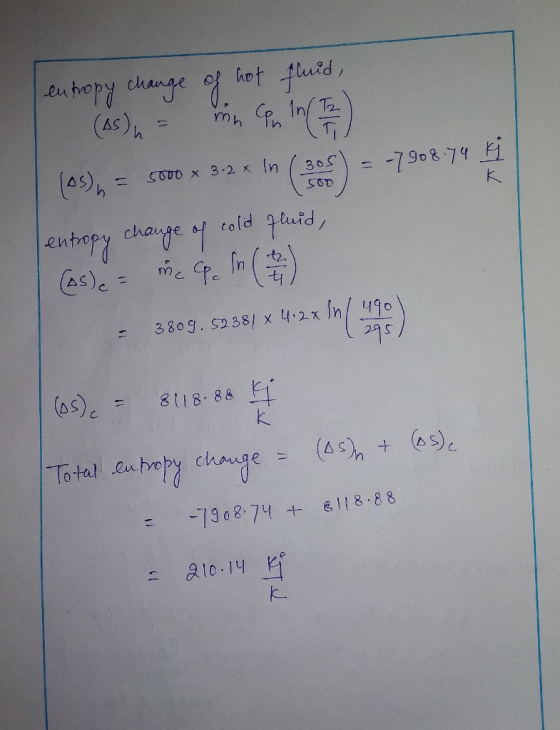

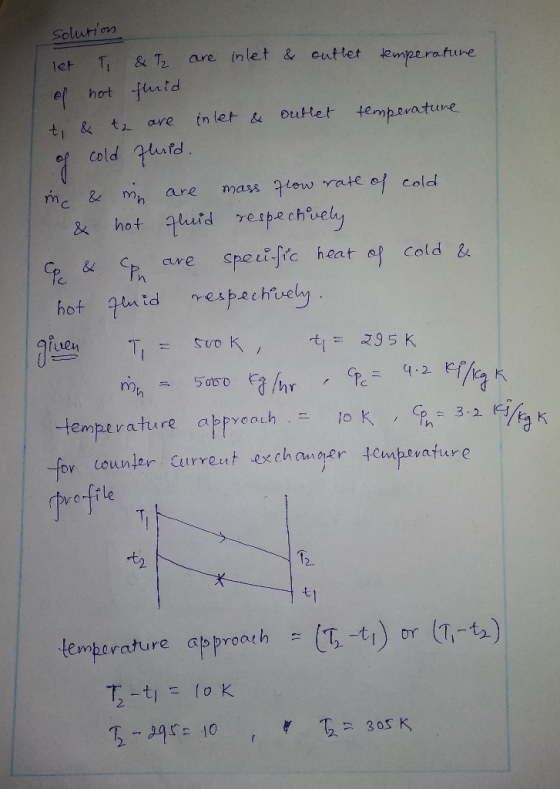

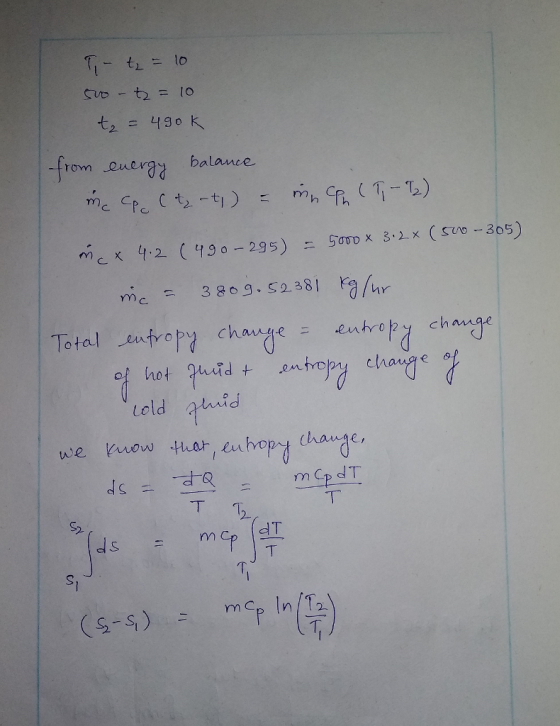

Oil at 500K is to be cooled at a rate of 5000 kg/hr in a counter-current exchanger using cold water available at 295K. A temperature approach of 10K is to be maintained at both ends of the exchanger. The specific heats of oil and water are respectively 3.2 and 4.2 KJ/Kg K. Determine the total entropy change of the process.
Homework Answers
