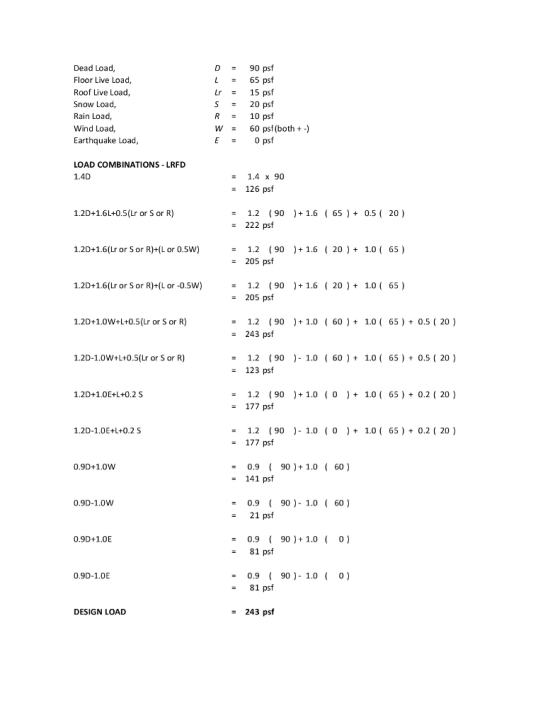

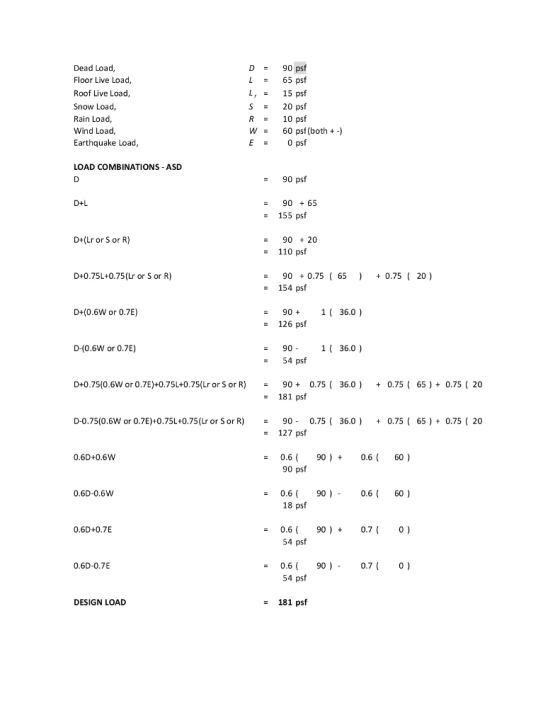

Determine the maximum combined loads using the recommended AISC expressions for LRFD and ASD D = 90 psf, L = 65 psf, R = 10 psf, Lr = 15 psf, S = 20 psf and W = +/- 60 psf
Homework Answers
Add Answer to:
Determine the maximum combined loads using the recommended AISC
expressions for LRFD and ASD D =...
