Homework Answers
Add Answer to:

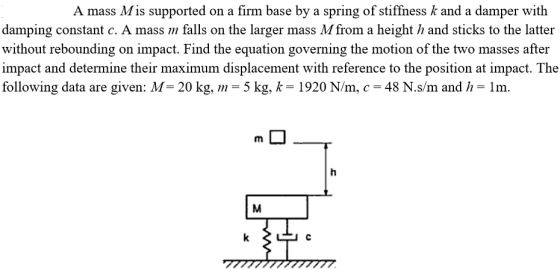

A mass Mis supported on a firm base by a spring of stiffness k and a...
2 with spring stiffness k 1000 N/m, Consider a mass-spring-damper system shown in Figure mass m...
2 with spring stiffness k 1000 N/m, Consider a mass-spring-damper system shown in Figure mass m = 10 kg, and damping constant c-150 N-s/m. If the initial displacement is xo-o and the initial velocity is 10 m/s (1) Find the damping ratio. (2) Is the system underdamped or overdamped? Why? (3) Calculate the damped natural frequency (4) Determine the free vibration response of the system.
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at the other end. A mass m is attached 1/3 of the length from the hinge and a dashpot having a hinge. Ignore the ma...
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at the other end. A mass m is attached 1/3 of the length from the hinge and a dashpot having a hinge. Ignore the mass of the rod, spring and damper (a) Derive the equation of motion for the system (101
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at...
Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed...
Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed by the equation of motion where m is the mass, c is the damping coefficient of the damper, k is the stiffness of the spring, F is the net force applied on the mass, and x is the displacement of the mass from its equilibrium point. In this problem, we focus on a mass-damper-spring system with m = 1 kg, c-4 kg/s, k-3 N/m,...
A 1-kg mass is attached to a spring with stiffness 10 N/m. The damping constant for...
A 1-kg mass is attached to a spring with stiffness 10 N/m. The damping constant for the system is 7 N-sec/m. If the mass is pulled^ m to the left of equilibrium and given an initial rightward velocity of 4 m/sec a) Find and solve the equation of motion governing the system b) State the type of motion for the system? c) When will the mass first return to its equilibrium position?
A į kg mass is attached to a spring with stiffness 4N/m and a damping constant...
A į kg mass is attached to a spring with stiffness 4N/m and a damping constant 1 N sec/m. The mass is displaced im to the left and given a velocity of 1m/sec to the left. (i) Find the equation of motion of the mass. (ii) What kind of motion do you get? Underdamped, overdamped or critically damped? (iii) What is the maximum displacement that the mass will attain?
Design a PD controller for mass-spring systems by the Root-Locus Method Mass 2.6Kg Spring stiffness 200N/m Zero Damp...
Design a PD controller for mass-spring systems by the Root-Locus Method Mass 2.6Kg Spring stiffness 200N/m Zero Damper Input: force Output: mass displacement, y Design a PD controller, Kp+ Kd*s, for vibration reduction by root-locus method so that the damping ratio of the closed-loop systems is 0.5 and natural frequency is 3 rad/s Transfer Function of closed-loop system Draw root locus plot Design gains ww
Design a PD controller for mass-spring systems by the Root-Locus Method Mass 2.6Kg Spring stiffness...
A--Kg mass is attached to a spring with a stiffness k = 16-. The mass is displaced 0.5m to 2-. Ne...
A--Kg mass is attached to a spring with a stiffness k = 16-. The mass is displaced 0.5m to 2-. Neg the right of the equilibrium point and given an outward velocity of V 2_. Neglecting any damping or external forces that may be present, determine the equation of motion of the mass along with its amplitude, period and natural frequency. How long after release does the mass pass through the equilibrium point? sec
A--Kg mass is attached to a...
Problem 1: For the system in figure (1-a), the spring attachment point B is given a horizontal motion Xp-b cos cut from the equilibrium position. The two springs have the same stiffness k 10 N/m and...
Problem 1: For the system in figure (1-a), the spring attachment point B is given a horizontal motion Xp-b cos cut from the equilibrium position. The two springs have the same stiffness k 10 N/m and the damper has a damping coefficient c. Neglect the friction and mass associated with the pulleys. a) Determine the critical driving frequency for which the oscillations of the mass m tend to become excessively large. b) For a critically damped system, determine damping coefficient...
1) A railroad car of mass 2,000 kg traveling at a velocity v = 10 m/s...
1) A railroad car of mass 2,000 kg traveling at a velocity v = 10 m/s is stopped at the end of the tracks by a spring-damper system, as shown below. If the stiffness of the spring is k= 40 N/mm and the damping constant c 20 N-s/mm, determine (a) the maximum displacement of the car after engaging the springs and damper, (b) the time taken to reach maximum displacement k2 P 0000 k/2
1) A railroad car of mass...
L. 2 uestion 3 (20 marks) A rotating bar of length L and mass m stiffness k and a damper with dam...
L. 2 uestion 3 (20 marks) A rotating bar of length L and mass m stiffness k and a damper with damping constant gy 2 connected (1) Find the total kinetic energy and total pot of the ystem,e total kinetic edamping constonnected with a spring with system. (2) Derive the equation of motion using e (3) Determine the undamped natural fir 4) Calculate the damping ratio of the sy nergy metho frequency of the system. Gven
L. 2 uestion 3...
2 with spring stiffness k 1000 N/m, Consider a mass-spring-damper system shown in Figure mass m = 10 kg, and damping constant c-150 N-s/m. If the initial displacement is xo-o and the initial velocity is 10 m/s (1) Find the damping ratio. (2) Is the system underdamped or overdamped? Why? (3) Calculate the damped natural frequency (4) Determine the free vibration response of the system.
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at the other end. A mass m is attached 1/3 of the length from the hinge and a dashpot having a hinge. Ignore the mass of the rod, spring and damper (a) Derive the equation of motion for the system (101
1. A rod of length 3a is hinged at one end and supported by a spring of stiffness k at...
Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed by the equation of motion where m is the mass, c is the damping coefficient of the damper, k is the stiffness of the spring, F is the net force applied on the mass, and x is the displacement of the mass from its equilibrium point. In this problem, we focus on a mass-damper-spring system with m = 1 kg, c-4 kg/s, k-3 N/m,...
A 1-kg mass is attached to a spring with stiffness 10 N/m. The damping constant for the system is 7 N-sec/m. If the mass is pulled^ m to the left of equilibrium and given an initial rightward velocity of 4 m/sec a) Find and solve the equation of motion governing the system b) State the type of motion for the system? c) When will the mass first return to its equilibrium position?
A į kg mass is attached to a spring with stiffness 4N/m and a damping constant 1 N sec/m. The mass is displaced im to the left and given a velocity of 1m/sec to the left. (i) Find the equation of motion of the mass. (ii) What kind of motion do you get? Underdamped, overdamped or critically damped? (iii) What is the maximum displacement that the mass will attain?
Design a PD controller for mass-spring systems by the Root-Locus Method Mass 2.6Kg Spring stiffness 200N/m Zero Damper Input: force Output: mass displacement, y Design a PD controller, Kp+ Kd*s, for vibration reduction by root-locus method so that the damping ratio of the closed-loop systems is 0.5 and natural frequency is 3 rad/s Transfer Function of closed-loop system Draw root locus plot Design gains ww
Design a PD controller for mass-spring systems by the Root-Locus Method Mass 2.6Kg Spring stiffness...
A--Kg mass is attached to a spring with a stiffness k = 16-. The mass is displaced 0.5m to 2-. Neg the right of the equilibrium point and given an outward velocity of V 2_. Neglecting any damping or external forces that may be present, determine the equation of motion of the mass along with its amplitude, period and natural frequency. How long after release does the mass pass through the equilibrium point? sec
A--Kg mass is attached to a...
Problem 1: For the system in figure (1-a), the spring attachment point B is given a horizontal motion Xp-b cos cut from the equilibrium position. The two springs have the same stiffness k 10 N/m and the damper has a damping coefficient c. Neglect the friction and mass associated with the pulleys. a) Determine the critical driving frequency for which the oscillations of the mass m tend to become excessively large. b) For a critically damped system, determine damping coefficient...
1) A railroad car of mass 2,000 kg traveling at a velocity v = 10 m/s is stopped at the end of the tracks by a spring-damper system, as shown below. If the stiffness of the spring is k= 40 N/mm and the damping constant c 20 N-s/mm, determine (a) the maximum displacement of the car after engaging the springs and damper, (b) the time taken to reach maximum displacement k2 P 0000 k/2
1) A railroad car of mass...
L. 2 uestion 3 (20 marks) A rotating bar of length L and mass m stiffness k and a damper with damping constant gy 2 connected (1) Find the total kinetic energy and total pot of the ystem,e total kinetic edamping constonnected with a spring with system. (2) Derive the equation of motion using e (3) Determine the undamped natural fir 4) Calculate the damping ratio of the sy nergy metho frequency of the system. Gven
L. 2 uestion 3...
