Find the magnitude of the electric field in the

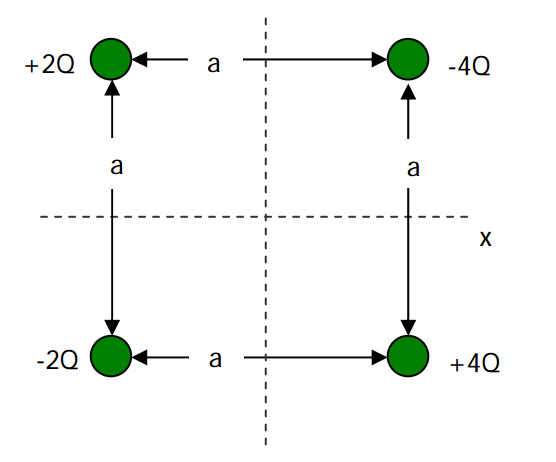

Find the magnitude of the electric field in the center of the square. a = 1cm, Q = 1 microC

science physics

Answer 1

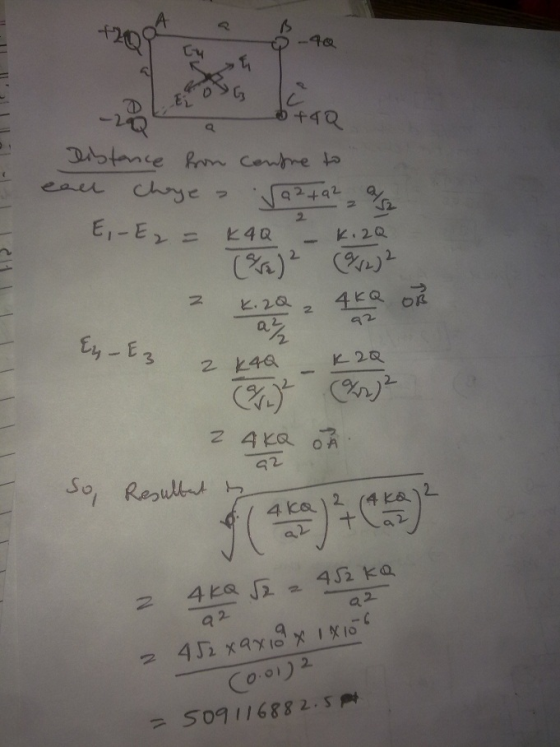

Answer #1

media%2Fd15%2Fd15c835c-2332-4f3e-8e53-6a

Answer 2

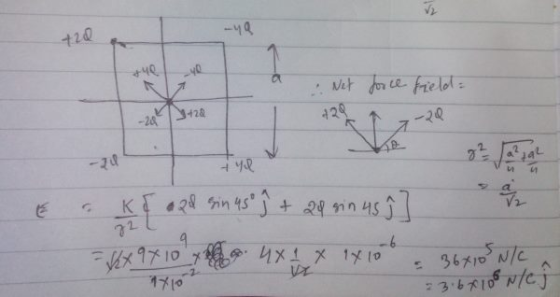

Answer #2

media%2Fa3c%2Fa3c83238-7c43-449c-8c6b-5c

Answer 3

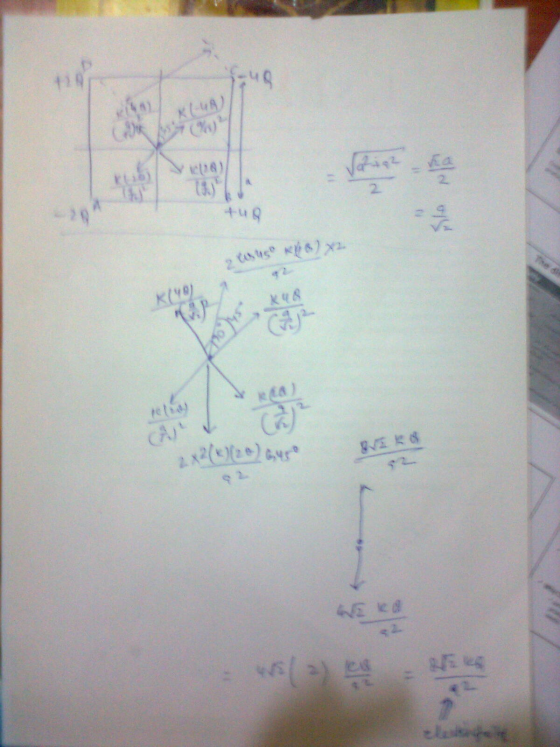

Answer #3

media%2F930%2F930cf53d-992c-4936-8604-0d

Answer 4

Similar Homework Help Questions

Calculate the magnitude of the electric field at the center of a square 42.5cm on a...

Calculate the magnitude of the electric field at the center of a square 42.5cm on a side if one corner is occupied by a −38.9μC charge and the other three are occupied by −26.5μC charges. Choose the correct direction of the electric field at the center of the square.
Calculate the magnitude of the electric field at the center of a square 42.5cm on a...

Calculate the magnitude of the electric field at the center of a square 42.5cm on a side if one corner is occupied by a −38.1μC charge and the other three are occupied by −27.1μC charges. Choose the correct direction of the electric field at the center of the square.
1. Calculate the magnitude of the electric field at the center of a square 42.5cm on...

1. Calculate the magnitude of the electric field at the center of a square 42.5cm on a side if one corner is occupied by a −38.9μC charge and the other three are occupied by −26.5μC charges. Choose the correct direction of the electric field at the center of the square. 2. Choose the correct direction of the electric field at the center of the square. A. toward to −38.9μC charge B. perpendicular to the diagonal passing through −38.9μC C. charge...

Please help!! Field at the Center of a Square Calculate the magnitude of the electric field...

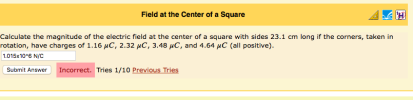

Please help!! Field at the Center of a Square Calculate the magnitude of the electric field at the center of a square with sides 23.1 cm long if the corners, taken in rotation, have charges of 1.16 μC, 2.32 μC, 3.48 and 4.64 μC (all positive). 1.015x10 6 N/C Submit Answer Incorrect. Tries 1/10 Previous Tries
