A 0.2 F capacitor has been charged to 10 V. At t = 0, it is...

A 0.2 F capacitor has been charged to 10 V. At t = 0, it is connected to a resistor R and it begins to discharge. At t = 10 seconds, the charge on the capacitor is 1 Coulomb. What is the charge on the capacitor at t = 30 seconds?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

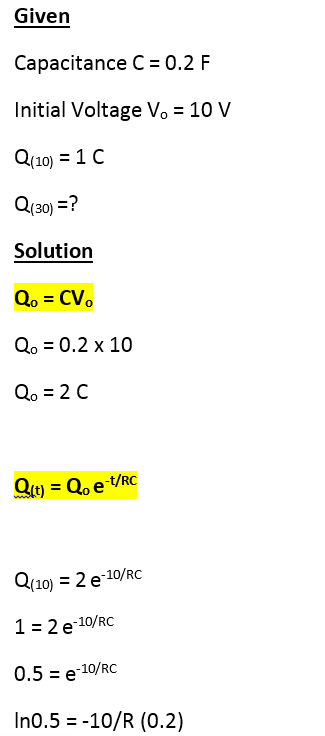

Given Capacitance C=0.2 F Initial Voltage Vo 10 V (10) Solution Qo 0.2 x 10 (t) = Qo e-t/RC Quo) 2e-10/RC 1 2 e 10/RO 0.5e-10

R 72.1 ohm Q(30) 2 x e-3/72.1x0.2 Q30)0.25 C

0 0
