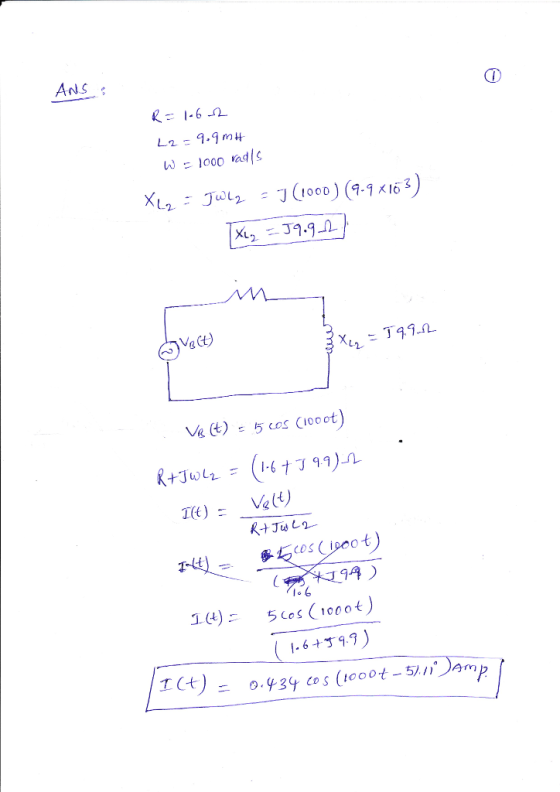

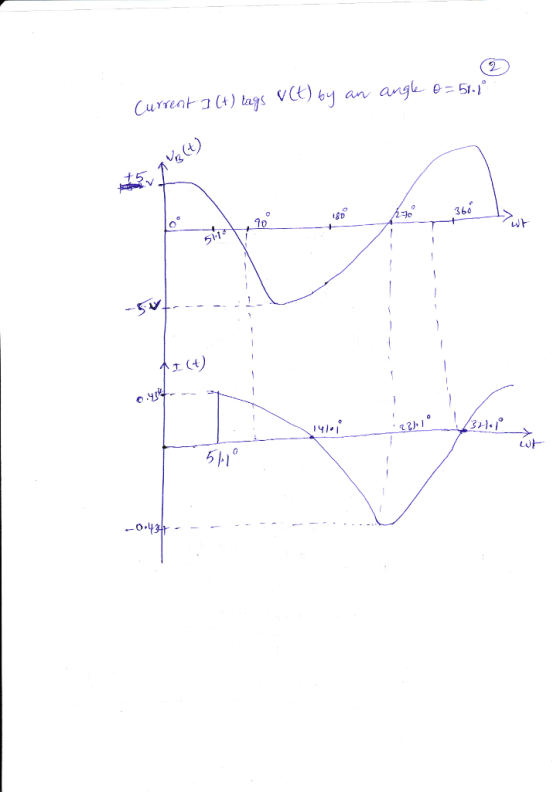

In the following circuit, L2= 9.9 mH, R= 1.6 Ohm, angular frequency w= 1000 rad/s, VB(t)= 5 cos(1000t). What is the circuit current waveform i(t)= ____cos(___ t + ___)?
i(t)= _____*cos(_____*t+_____).
Homework Answers
Add Answer to:
In the following circuit, L2= 9.9 mH, R= 1.6 Ohm, angular
frequency w= 1000 rad/s, VB(t)=...
Problem #17 In the following circuit,L2-5.6 mH, R-5 Ohm, C-8.6uF, angular frequency w 10000 rad/s. The...
Problem #17 In the following circuit,L2-5.6 mH, R-5 Ohm, C-8.6uF, angular frequency w 10000 rad/s. The amplitude of the current through the resistor Ris 8.7 A. What is the amplitude of the current through C? [ 12 Submit Answer Tries 0/5 Problem #18 In the following circuit, 12- 8.7 mH, R-6.6 Ohm, angular frequency w 1000 rad/s, VB(t)- 2.8 cos(1000t). What is the circuit current waveform (t) _ cos_ t+ )? R ve ZL2 cos
Problem #6 m Di ZR S T In the following circuit, L1= 5 mH, L2= 2...
Problem #6 m Di ZR S T In the following circuit, L1= 5 mH, L2= 2 mH, R= 9.9 Ohm, C= 10 uF. Find the average power delivered by the ideal current source if ig=50cos(10000t) mA. (Unit: W) Submit Answer Tries 0/3
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s...
1. Compute the impedance of a series R-L-C circuit at angular frequencies of ω1= 1000 rad/s , ω2= 710 rad/s and ω3= 455 rad/s . Take R = 170 Ω , L = 0.935 H and C = 2.40 μF . What is the phase angle of the source voltage with respect to the current when ω = 1000 rad/s? 2. A series R–L–C circuit of R = 150 Ω , L = 0.915 H and C = 2.05 μF...
In the series RC circuit below, with R -6.1 k ohms& C 72.5 nF, at what angular frequency [rad/s] ...
In the series RC circuit below, with R -6.1 k ohms& C 72.5 nF, at what angular frequency [rad/s] does the capacitor AC voltage reduce to its DC value (accurate to 1%)? C output Answer: In the series RC circuit below, with R-1.2 k ohms & C 92.8 nF, calculate the magnitude of the voltage 'gain' of the circuit (Vout/ Vsl), for a driving frequency of 0.1 kHz, to 1% accuracy. Coutput Answer For a series RLC circuit as shown...
Which is the correct expression for i(t) assuming Z = 5+j5 and w = 1000 rad/s?...
Which is the correct expression for i(t) assuming Z = 5+j5 and w = 1000 rad/s? V = 1020° Z o i(t) = 1.41cos(10001 - 45deg) A O ilt) = 2cos(1000t + 45deg) A iſt) - 1.41cos(1000t + 45deg) A Oilt) = 2cos(1000t - 45deg) A Previous
In an oscillating RLC circuit, R = 3.9 Ω, L = 6.0 mH, and C = 600 µF. What is the angular frequency of the oscillations...
In an oscillating RLC circuit, R = 3.9 Ω, L = 6.0 mH, and C = 600 µF. What is the angular frequency of the oscillations (in rad/s)? ___________________________ rad/s
R i(t) i2() 1100) L2 In the above circuit, 11-10mH, L2-5 mH, R = 2kQ, and...
R i(t) i2() 1100) L2 In the above circuit, 11-10mH, L2-5 mH, R = 2kQ, and v(t) = 61(t) V, where (10 pts) A. DERIVE an expression for i1 (t) in terms of L1, L2 and i(t). SHOW YOUR WORK. {1, t > 0 u(t) = t0, t < 0. 0, t<0
Consider the RLC circuit below, with R= 20 12, L = 10 mH, and C =...
Consider the RLC circuit below, with R= 20 12, L = 10 mH, and C = 5 mF. The voltage source has a voltage amplitude of 26.0 V and an angular frequency of w = 500 rad/s. a) What is the total impedance of the circuit? b) Find the amplitude of the current, and the phase angle, d. c) Draw a phasor diagram of the impedances. Be sure to clearly label Z, R, XL, Xc, and 0. R C E
7.45 At what angular frequency w is the current i(t) in the circuit of Fig. P7.45 in-phase with t...
Please explain key steps to solve without using Laplace
Transformations.
7.45 At what angular frequency w is the current i(t) in the circuit of Fig. P7.45 in-phase with the source voltage us(t)? i(I) 108.33 F 50Ω 0.2 H 0.2 m 0.2 mF Figure P7.45: Circuit for Problem 7.45.
7.45 At what angular frequency w is the current i(t) in the circuit of Fig. P7.45 in-phase with the source voltage us(t)? i(I) 108.33 F 50Ω 0.2 H 0.2 m 0.2 mF...
Problem 1. Determine vc(t) and iL(t) for the following circuit if is1 = 0.04 cos(1000t) and...
Problem 1. Determine vc(t) and iL(t) for the following circuit
if is1 = 0.04 cos(1000t) and is2 = 0.02 cos(1000t − 90o )
Assessment Problem 1. Determine v.() and i.(t) for the following circuit if i 0.04 cos(10001) and i, -0.02 cos(1000t -909) 100mH 200Ω 2002 200Ω HI Assessment Problem 2. Determine the Thevenin equivalent cireuit for the tollowing as ming that w 100 rad/ec 4Ω 112. 10mE 20mH
Problem #17 In the following circuit,L2-5.6 mH, R-5 Ohm, C-8.6uF, angular frequency w 10000 rad/s. The amplitude of the current through the resistor Ris 8.7 A. What is the amplitude of the current through C? [ 12 Submit Answer Tries 0/5 Problem #18 In the following circuit, 12- 8.7 mH, R-6.6 Ohm, angular frequency w 1000 rad/s, VB(t)- 2.8 cos(1000t). What is the circuit current waveform (t) _ cos_ t+ )? R ve ZL2 cos
Problem #6 m Di ZR S T In the following circuit, L1= 5 mH, L2= 2 mH, R= 9.9 Ohm, C= 10 uF. Find the average power delivered by the ideal current source if ig=50cos(10000t) mA. (Unit: W) Submit Answer Tries 0/3
In the series RC circuit below, with R -6.1 k ohms& C 72.5 nF, at what angular frequency [rad/s] does the capacitor AC voltage reduce to its DC value (accurate to 1%)? C output Answer: In the series RC circuit below, with R-1.2 k ohms & C 92.8 nF, calculate the magnitude of the voltage 'gain' of the circuit (Vout/ Vsl), for a driving frequency of 0.1 kHz, to 1% accuracy. Coutput Answer For a series RLC circuit as shown...
Which is the correct expression for i(t) assuming Z = 5+j5 and w = 1000 rad/s? V = 1020° Z o i(t) = 1.41cos(10001 - 45deg) A O ilt) = 2cos(1000t + 45deg) A iſt) - 1.41cos(1000t + 45deg) A Oilt) = 2cos(1000t - 45deg) A Previous
R i(t) i2() 1100) L2 In the above circuit, 11-10mH, L2-5 mH, R = 2kQ, and v(t) = 61(t) V, where (10 pts) A. DERIVE an expression for i1 (t) in terms of L1, L2 and i(t). SHOW YOUR WORK. {1, t > 0 u(t) = t0, t < 0. 0, t<0
Consider the RLC circuit below, with R= 20 12, L = 10 mH, and C = 5 mF. The voltage source has a voltage amplitude of 26.0 V and an angular frequency of w = 500 rad/s. a) What is the total impedance of the circuit? b) Find the amplitude of the current, and the phase angle, d. c) Draw a phasor diagram of the impedances. Be sure to clearly label Z, R, XL, Xc, and 0. R C E
Please explain key steps to solve without using Laplace
Transformations.
7.45 At what angular frequency w is the current i(t) in the circuit of Fig. P7.45 in-phase with the source voltage us(t)? i(I) 108.33 F 50Ω 0.2 H 0.2 m 0.2 mF Figure P7.45: Circuit for Problem 7.45.
7.45 At what angular frequency w is the current i(t) in the circuit of Fig. P7.45 in-phase with the source voltage us(t)? i(I) 108.33 F 50Ω 0.2 H 0.2 m 0.2 mF...
Problem 1. Determine vc(t) and iL(t) for the following circuit
if is1 = 0.04 cos(1000t) and is2 = 0.02 cos(1000t − 90o )
Assessment Problem 1. Determine v.() and i.(t) for the following circuit if i 0.04 cos(10001) and i, -0.02 cos(1000t -909) 100mH 200Ω 2002 200Ω HI Assessment Problem 2. Determine the Thevenin equivalent cireuit for the tollowing as ming that w 100 rad/ec 4Ω 112. 10mE 20mH
