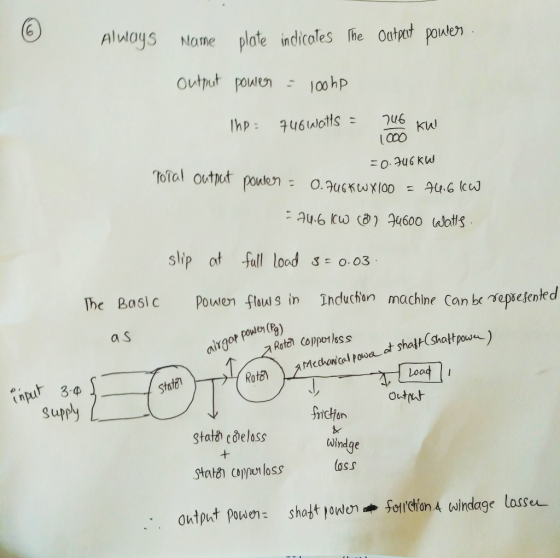

(6') A 100-hp, 60-Hz, three-phase induction machine has a slip of 0.03 at full load. Compute...
[1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction...

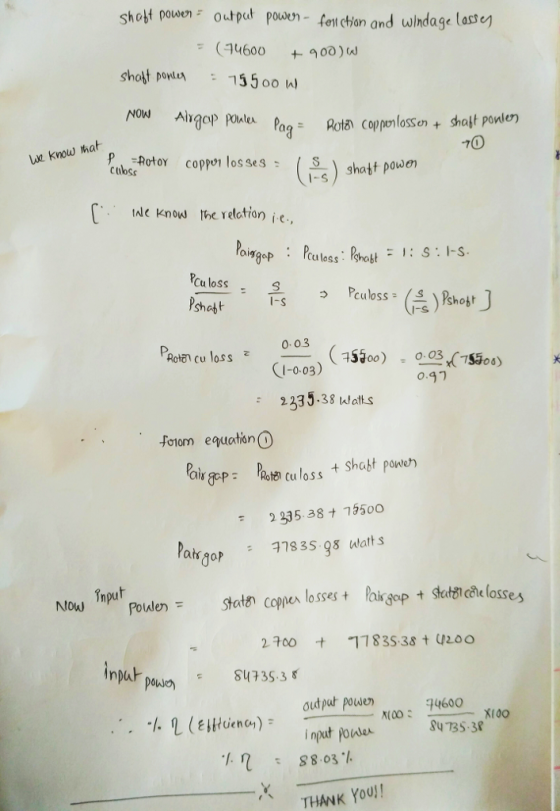

[1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction and windage losses are 900 W, the stator core loss is 4200 W, and the stator copper loss is 2700 W. If the slip is 3.75%, what is the efficiency of the motor.
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected induction motor draws 25...
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a...
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a load at 1710 rpm. The induction motor has the following impedances referred to the stator in /phase: R,=0.1512, X,=0.7512; R2=1.222,X=0.7522; X=25 12 . The core loss is 450 W and friction and windage loss is 250 W. Calculate the following 1. line current and power factor 2. Real and reactive input power 3. Air-gap power 4. Mechanical power and torque developed 5. shaft horse...
A 220-W, 2 pole, 155-V 60-Hz single phase induction motor delivers rated output at a slip...
A 220-W, 2 pole, 155-V 60-Hz single phase induction motor delivers rated output at a slip 10%. The total copper loss at full load is 25 Watts. Calculate the full load efficiency and the rotor copper loss caused by the backward field. Rotational losses maybe assumed to be 25 watts. Neglect stator copper loss.
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has t...
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has the following parameters per phase refereed to the stator. RI : 0.29 Ω , R2 0. 14 Ω , Xi-0.50 Ω , X2-0.20 Ω , Xm-1 0.53 Ω The total windage and core losses can be assumed to be a constant 350 W. If the machine is operating at rated voltage and frequency with a 5.5% slip, find the steady-state: (a) 10pts. Mechanical...
6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of...
6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of 224 A and a total power of 777 kW when operating at full load. The full-load speed is 245 rpm. The stator is wye connected and has an effective resistance per phase of 0.125 Ω. The stator iron (core) loss is 8.88 kW; friction and windage losses are 4.54 kW. Calculate at full-load conditions: b. power supplied to the rotor, a. the power factor;...
1. A 20 hp, 230 V, 60 Hz, four-pole, three-phase induction motor operating at rated load...
1. A 20 hp, 230 V, 60 Hz, four-pole, three-phase induction motor operating at rated load has rotor copper loss of 331 W, and a combined friction, windage, and stray power loss of 249 W. Determine, (a) Mechanical power developed; (b) Air-gap power; (c) Shaft speed; (d) Shaft torque (10 pts.)
1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when...
1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when it operates at rated load. Calculate the following 1. Number of poles of the machine. 2. slip at full load. 3. Rotor frequency. 4. speed of rotor field with respect to the stator. 5. speed of the rotor magnetic field with respect to the stator magnetic rotating field.
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and...
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
[1. The shaft output of a three-phase, 60 Hz induction motor is 100 HP. The friction and windage losses are 900 W, the stator core loss is 4200 W, and the stator copper loss is 2700 W. If the slip is 3.75%, what is the efficiency of the motor.
A 4 phase, 460 V, 60 Hz, 26.8 hp, 4 pole, Y-connected
induction motor draws 25 A at a power factor of 0.9 lagging. Core
loss is 900 W, stator copper loss is 1100W, friction and winding
losses are 300 W, and stray loss is neglected. The machine shaft
rotates at 1738 rpm. Calculate the air gap power and output load
torque
- [Induction Motor - 15 points) A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor...
6. [Induction Motor - 15 points] A three-phase, 460 V, 60 Hz, 26.8 hp, 4-pole, Y-connected induction motor draws 25 A at a power factor of 0.9 lagging. The core loss is 900 W, stator copper loss is 1100 W, friction and windage loss is 300 W, and stray loss is neglected. The machine shaft rotates at a speed of 1738 rpm. Calculate the air gap power and output load torque.
A three phase, 60 Hz induction motor rated at 440 V and 40 hp drives a load at 1710 rpm. The induction motor has the following impedances referred to the stator in /phase: R,=0.1512, X,=0.7512; R2=1.222,X=0.7522; X=25 12 . The core loss is 450 W and friction and windage loss is 250 W. Calculate the following 1. line current and power factor 2. Real and reactive input power 3. Air-gap power 4. Mechanical power and torque developed 5. shaft horse...
A three-phase 4 pole wye connected 220 V, 15 Hp, 50 Hz induction machine (rated conditions) has the following parameters per phase refereed to the stator. RI : 0.29 Ω , R2 0. 14 Ω , Xi-0.50 Ω , X2-0.20 Ω , Xm-1 0.53 Ω The total windage and core losses can be assumed to be a constant 350 W. If the machine is operating at rated voltage and frequency with a 5.5% slip, find the steady-state: (a) 10pts. Mechanical...
6. A 3-phase 2.2 kV 25 Hz squirrel cage induction motor draws a line current of 224 A and a total power of 777 kW when operating at full load. The full-load speed is 245 rpm. The stator is wye connected and has an effective resistance per phase of 0.125 Ω. The stator iron (core) loss is 8.88 kW; friction and windage losses are 4.54 kW. Calculate at full-load conditions: b. power supplied to the rotor, a. the power factor;...
1. A 20 hp, 230 V, 60 Hz, four-pole, three-phase induction motor operating at rated load has rotor copper loss of 331 W, and a combined friction, windage, and stray power loss of 249 W. Determine, (a) Mechanical power developed; (b) Air-gap power; (c) Shaft speed; (d) Shaft torque (10 pts.)
1. A three phase, 60 Hz, 100-hp, 440V, Y-connected induction motor runs at 864 rpm when it operates at rated load. Calculate the following 1. Number of poles of the machine. 2. slip at full load. 3. Rotor frequency. 4. speed of rotor field with respect to the stator. 5. speed of the rotor magnetic field with respect to the stator magnetic rotating field.
Name: 23. A 3-phase, 5000 hp, 6000 v,60 Hz, 12-pole wound-rotor induction motor has the 1, resistance between stator terminals-o12 Ω 2. resistance between rotor slip-rings-0.0073 Ω 3. windage and friction losses-51 kW following characteristics 4. iron losses in the stator-39 kW 5. locked rotor current at 6000 V-1800 A 6. active power to the stator with rotor locked 2207 kw Calculate under full-load voltage locked-rotor conditions a. Reactive power absorbed by the motor b. FR losses in the stator...
