Question

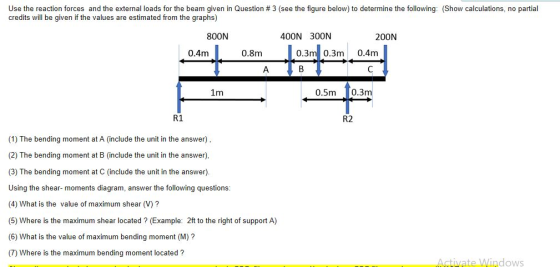

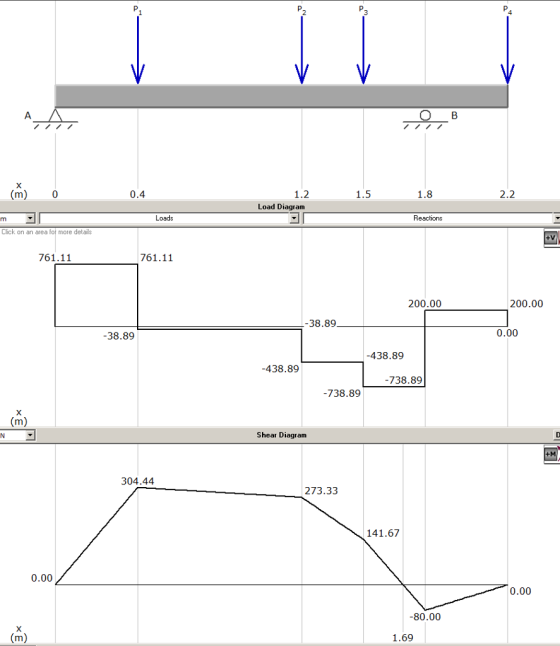

Use the reaction forces and the external loads for the beam given in Question # 3 (see the figure below) to determine the following: (Show calculations, no partial credits will be given if the values are estimated from the graphs) 800N 400N 300N 200N 0.4m 0.8m 0.3m 0.3m 0.4m 1m 0.5m 0.3m R1 R2 (1) The bending moment at A (include the unit in the answer), (2) The bending moment at B (include the unit in the answer) (3) The bending moment at C (include the unit in the answer) Using the shear- moments diagram, answer the following questions (4) What is the value of maximum shear (V)? (5) Where is the maximum shear located ? (Example: 2ft to the right of support A) (6) What is the value of maximum bending moment (M)? (7) Where is the maximum bending moment located? dows

0 0
Add a comment Improve this question Transcribed image text
Answer #1

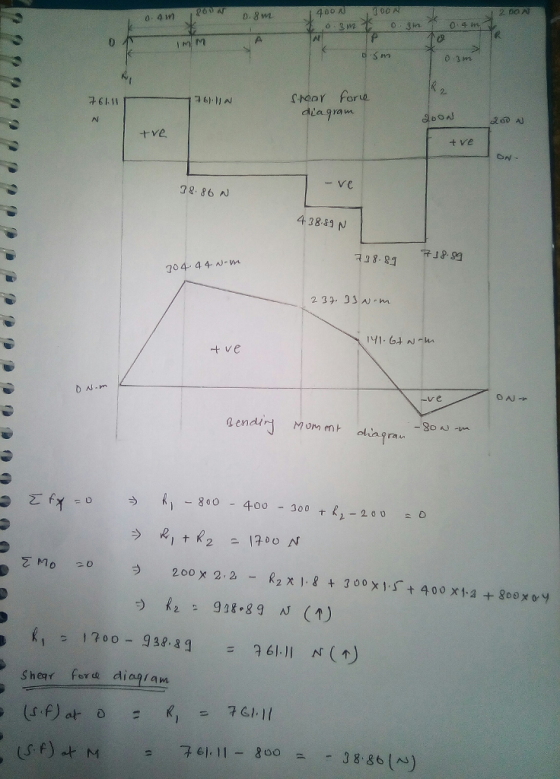

100 시 0-4เท o 3m Shao r for L dia gra 귀 61.11 2sD Ni +ve t ve - Ve 7 8 86 N 43889 N 刊8-84 9 8 204 44 t ve -ve 00-300 te,-200-(S.CLrAJ :孙11-800-400--438.pg (s,f) or f 76). Il-800-400-300 -718. gg = 141.17 N·m 一go.oo Nem 2 2 9, 44.3Maximum Bending Momen chay s sear forca cha ge ja Sighn nd a m 304.44心rm locahou

Add a comment
Know the answer?
Add Answer to:
Use the reaction forces and the external loads for the beam given in Question # 3...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
