Two glass plates are separated by fine wires with diameters d1 = 0.0500 mm and d2...

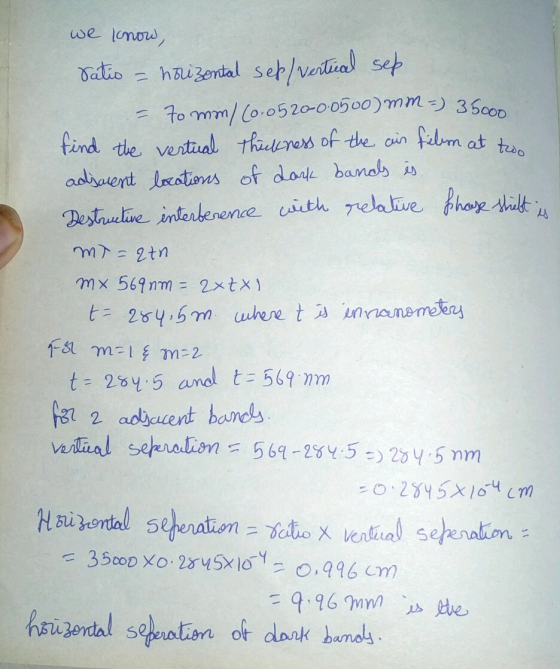

Two glass plates are separated by fine wires with diameters d1 = 0.0500 mm and d2 = 0.0520 mm, as indicated in the figure(Figure 1) . The wires are parallel and separated by a distance of 7.00 cm.
If monochromatic light with λ = 569 nm is incident from above, what is the distance (in cm) between adjacent dark bands in the reflected light? (Consider interference only between light reflected from the bottom surface of the upper plate and light reflected from the upper surface of the lower plate.)
Homework Answers
Add Answer to:
Two glass plates are separated by fine wires with diameters
d1 = 0.0500 mm and d2...
Thin film examples Suppose the two glass plates in the figure are two microscope slides 10...
Thin film examples Suppose the two glass plates in the figure are two microscope slides 10 cm long. They are in contact at one end and are separated by a piece of paper 0.020 mm thick at the other end. What is the spacing of the interference fringes seen by reflection? Is the fringe at the line of contact bright or dark? Assume monochromatic light with λ-500 nm. λο 500 nm h - 0.020 mm 1 10.0 cm
6. [15 ptsJTwo glass plates are 15.0 cm long. At one end they are in contact, at the other end they are separated by 0.03 mm. Assume normal incidence with a monochromatic light (wavelength in air...
6. [15 ptsJTwo glass plates are 15.0 cm long. At one end they are in contact, at the other end they are separated by 0.03 mm. Assume normal incidence with a monochromatic light (wavelength in air is 50nm) a) Is the fringe at the line of contact bright or dark? Explain your answer. What is the spacing of the bright b) If the glass plates have n 1.6 and space between plates contains water (n 1.33). Is the fringe at...
A pair of narrow, parallel slits separated by 0.220 mm isilluminated by green light (λ...
A pair of narrow, parallel slits separated by 0.220 mm is illuminated by green light (λ = 546.1 nm). The interference pattern is observed on a screen 1.50 m away from the plane of the parallel slits.(a) Calculate the distance from the central maximum to the first bright region on either side of the central maximum. ____mm(b) Calculate the distance between the first and second dark bands in the interference pattern. ____mm
Two slits separated by a distance of d = 0.175 mm are located at a distance...
Two slits separated by a distance of d = 0.175 mm are located at a distance of D = 2.01 m from a screen. The screen is oriented parallel to the plane of the slits. The slits are illuminated by a monochromatic and coherent light source with a wavelength of λ = 604 nm. A wave from each slit propagates to the screen. The interference pattern shows a peak at the center of the screen (m=0) and then alternating minima...
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes...
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes an interference pattern on a screen 536 cm away. The light has a wavelength of 656.3 nm (a) What is the fraction of the maximum intensity at a distance of 0.600 cm from the central maximum of the interference pattern? (b) What If? What is the minimum distance (absolute value, in mm) from the central maximum where you would find the intensity to be...
A very fine wire 7.65×10?3 mm in diameter is placed between two flat glass plates. Light...
A very fine wire 7.65×10?3 mm in diameter is placed between two flat glass plates. Light whose wavelength in air is 660 nm falls (and is viewed) perpendicular to the plates and a series of bright and dark bands is seen. Part A How far apart are the dark fringes if the glass plates are each 21.5 cm long? Express your answer to three significant figures and include the appropriate units. ?x =____ (units?)
Two slits are separated by 0.20 mm and tare illuminated with a monochromatic coherent light source...
Two slits are separated by 0.20 mm and tare illuminated with a monochromatic coherent light source whose wavelength is 615 nm. Adjacent fringes on a screen are separated by 1.4 cm. What is the distance between the screen and the slits?
Two flat panes of glass (80 cm long, 15 cm wide, 4 mm thick) are on...
Two flat panes of glass (80 cm long, 15 cm wide, 4 mm thick) are on your lab table directly under a nearly monochromatic (wavelength 650 nm) light source. At one end one pane is resting on the other; at their other ends they are separated by a single thickness of paper. You notice that the light is strongly reflected only in multiple bands occurring one every 2.5 cm. How thick. is the paper?
Question 5: How would dust and oil on the glass plates affect the results? EXPERIMENT 10 THIN FILM I...
Question 5:
How would dust and oil on the glass plates affect the
results?
EXPERIMENT 10 THIN FILM INTERFERENCE Light from a monochromatic source is shined downward on two glass plates that are separated at one end by a hair. Light that is reflected from the top and bottom surfaces of the wedge-shaped thin film of air undergoes interference, and a series of dark and light lines are seen. By counting the number of dark or light lines over a...
Two long straight parallel wires, separated by d1 = 0.775 cm, are perpendicular to the plane...
Two long straight parallel wires, separated by
d1 = 0.775 cm, are perpendicular to the plane
of the page as shown in Fig. 30-40. Wire 1 carries a current of
5.70 A into the page. What must be the current (magnitude and
direction) in wire 2 for the resultant magnetic field at point
P to be zero? Point P is d2 =
1.85 cm from wire 2.
HRW7 TP 29-9Two long straight parallel wires, separated by dy = 0.775 cm,...
Thin film examples Suppose the two glass plates in the figure are two microscope slides 10 cm long. They are in contact at one end and are separated by a piece of paper 0.020 mm thick at the other end. What is the spacing of the interference fringes seen by reflection? Is the fringe at the line of contact bright or dark? Assume monochromatic light with λ-500 nm. λο 500 nm h - 0.020 mm 1 10.0 cm
6. [15 ptsJTwo glass plates are 15.0 cm long. At one end they are in contact, at the other end they are separated by 0.03 mm. Assume normal incidence with a monochromatic light (wavelength in air is 50nm) a) Is the fringe at the line of contact bright or dark? Explain your answer. What is the spacing of the bright b) If the glass plates have n 1.6 and space between plates contains water (n 1.33). Is the fringe at...
Monochromatic light is incident on (and perpendicular to) two slits separated by 0.175 mm, which causes an interference pattern on a screen 536 cm away. The light has a wavelength of 656.3 nm (a) What is the fraction of the maximum intensity at a distance of 0.600 cm from the central maximum of the interference pattern? (b) What If? What is the minimum distance (absolute value, in mm) from the central maximum where you would find the intensity to be...
Two flat panes of glass (80 cm long, 15 cm wide, 4 mm thick) are on your lab table directly under a nearly monochromatic (wavelength 650 nm) light source. At one end one pane is resting on the other; at their other ends they are separated by a single thickness of paper. You notice that the light is strongly reflected only in multiple bands occurring one every 2.5 cm. How thick. is the paper?
Question 5:
How would dust and oil on the glass plates affect the
results?
EXPERIMENT 10 THIN FILM INTERFERENCE Light from a monochromatic source is shined downward on two glass plates that are separated at one end by a hair. Light that is reflected from the top and bottom surfaces of the wedge-shaped thin film of air undergoes interference, and a series of dark and light lines are seen. By counting the number of dark or light lines over a...
Two long straight parallel wires, separated by
d1 = 0.775 cm, are perpendicular to the plane
of the page as shown in Fig. 30-40. Wire 1 carries a current of
5.70 A into the page. What must be the current (magnitude and
direction) in wire 2 for the resultant magnetic field at point
P to be zero? Point P is d2 =
1.85 cm from wire 2.
HRW7 TP 29-9Two long straight parallel wires, separated by dy = 0.775 cm,...
