Question

Please show steps and answer.

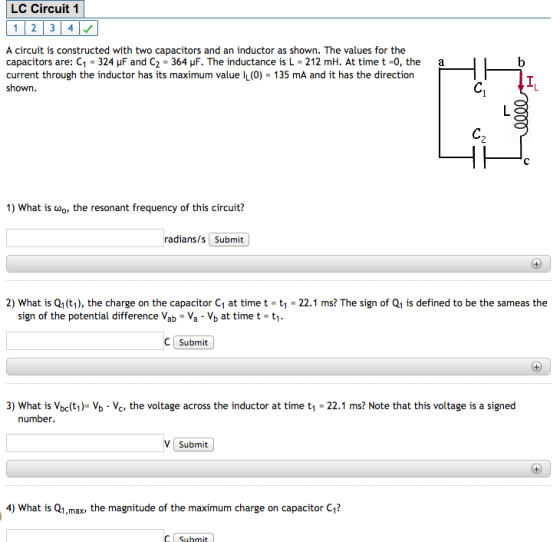

Image for A circuit is constructed with two capacitors and an inductor as shown. The values for the capacitors are: C1 =

0 0
Add a comment Improve this question Transcribed image text
Answer #1

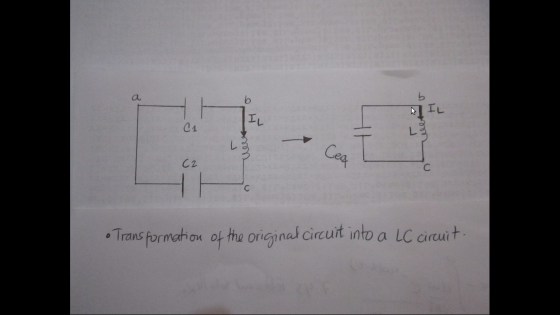

We transformed the original ciruit combining the capacitors to obtain a LC circuit with

one capacitor as shown on the below image:

Where \frac{1}{C_{eq}} = \frac{1}{C_1} + \frac{1}{C_2} \rightarrow C_{eq} = \frac{C_1 * C_2}{C_1 + C_2} = 171,42 \mu F

Applying Kirchoff's loop rule to the circuit we obtain

-\frac{q}{C_{eq}} - L \frac{d i}{d t} = 0 , but i = \frac{d q}{d t} therefore \frac{d^2 q}{d t^2} = - \frac{1}{L C_{eq}} q

The solution of the diferential equation is an armonic function

q(t) = Q_{max} cos(\omega t + \phi), where \omega = \sqrt{\frac{1}{LC_{eq}}} .

SInce i = \frac{d q}{d t} , then i (t) = - I_{max} sin(\omega t + \phi) , where I_{max} = \omega Q_{max} .

The circuit resonant frecquency is \omega = \sqrt{\frac{1}{L C_{eq}}} = 165.88 \frac{1}{s} .

Applying this initial condition t = 0 s, \, q(0) = 0, I (0) = I_L(0) to

q(t) \, and \, I(t) we obtain \phi = \frac{3 \pi}{2}, \, and \, Q_{max} = \frac{I_{max}}{\omega}

The charge in the capacitor C_{eq} in t = 22.1 ms is

q(22.1 ms) = \frac{135*10^{-3} A}{165.88 s^{-1}} cos[(165.88 s^{-1}*22.1*10^{-3}) + \frac{3 \pi}{2}]

q(22.1 ms) = - 4.07*10^{-4} \, C

Since C_1 \, and \, C_2 are in parallel Q_1 = Q_2 = q(22.1 ms) = -4.07*10^{-4} C.

The potential difference between b and c is V_b - V_c = \frac{q}{C_{eq}} = -\frac{ 4.07*10^{-4} \, C}{171,42*10^{-6} F} = - 2.37 V

To find the capacitor C_1 maximum charge we consider that:

Q_{eq \, max} = Q_{1 \, max} = Q_{2 \, max} = \frac{I_{max}}{\omega} = \frac{135 *10^{-3} A}{165.88 s^{-1}} = 8.14*10^{-4} C

Add a comment
Know the answer?
Add Answer to:
Please show steps and answer. A circuit is constructed with two capacitors and an inductor as...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
