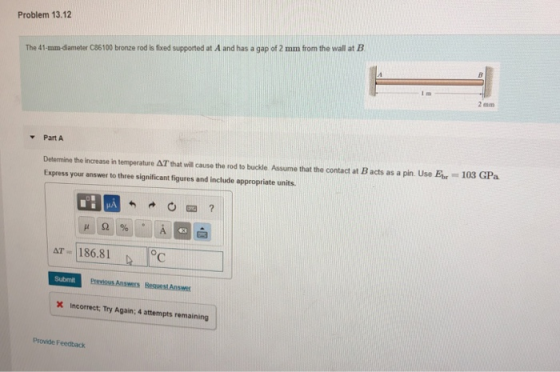

Problem 13.12 The 41-mm-diameter C86100 bronze rod is fixed supported at A and has a gap...
Review The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD,...
Review The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD, a 15-mm diameter 304 stainless steel rod EF, and a rig d bar G. The modulus of elasticity for red brass C83400 is 101 GPa, for 304 stainless steel 193 GPa. (Figure 1) Part A If the horizontal displacement of end F of rod EF is 0.46 mm, determine the magnitude of P. Express your answer to three significant figures and include the appropriate...
The beam is fixed supported to the wall at A and pin connected to a ½-in. diameter rod BC. E= 29(103) ksi for both members
The beam is fixed supported to the wall at A and pin connected to a ½-in. diameter rod BC. E= 29(103) ksi for both members, determine the force developed in the rod due to the loading The moment of inertia of the beam about its neutral axis is I = 475 in4
Rigid bar ABC is supported by a pin at bracket A and by tie rod (1). Tie rod (1) has a diameter of 9 mm, and it is supported by double-shear pin connections at B and D. The pin at bracket A is a single-shear connection. The pin at B is 7 mm in diameter. A
Rigid bar \(A B C\) is supported by a pin at bracket \(A\) and by tie rod (1) . Tie rod (1) has a diameter of \(9 \mathrm{~mm}\), and it is supported by double-shear pin connections at \(B\) and \(D .\) The pin at bracket \(A\) is a single-shear connection. The pin at \(B\) is \(7 \mathrm{~mm}\) in diameter. Assume \(a=520 \mathrm{~mm}, b=260 \mathrm{~mm}, h=390 \mathrm{~mm},\) and \(\theta=50^{\circ} .\) If the normal stress in tie rod (1) cannot exceed 200...
The two shafts are made of A-36 steel. Each has a diameter of 23 mm and...
The two shafts are made of A-36 steel. Each has a diameter of 23 mm and they are connected using the gears fixed to their ends. Their other ends are attached to fixed supports at A and B. They are also supported by journal bearings at C and D, which allow free rotation of the shafts along their axes. A torque of 500 N·m is applied to the gear at E as shown in the figure below. The shear modulus...
The two shafts are made of A-36 steel. Each has a diameter of 23 mm and...
The two shafts are made of A-36 steel. Each has a diameter of 23 mm and they are connected using the gears fixed to their ends. Their other ends are attached to fixed supports at A and B. They are also supported by journal bearings at C and D, which allow free rotation of the shafts along their axes. A torque of 500 N·m is applied to the gear at E as shown in the figure below. The shear modulus...
Problem 1.44 Review Part A All pins are in double shear, each has a diameter of...
Problem 1.44 Review Part A All pins are in double shear, each has a diameter of 13 mm, and the average shear stress in each pin is not to exceed 95 MPa. (Figure 1) Determine the maximum magnitude P of the loads that the beam can support Express your answer to three significant figures and include appropriate units P 2810 kN Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Figure 1 of 1 < Return to...
A 100-mm long rod has a diameter of 15 mm, Part A If an axial tensile...
A 100-mm long rod has a diameter of 15 mm, Part A If an axial tensile load of 195 kN s applied, determine its change in length. Assume linear-elastic behavior with E = 200 GPa. Express your ahswer to three significant figures and include the appropriate units. ? Suomi Request Answer Provide Feedback
Fundamental Problem 5.10 The shaft has a diameter of 41 for which G- 75 GPa. mm...
Fundamental Problem 5.10 The shaft has a diameter of 41 for which G- 75 GPa. mm and is made of steel Part A Figure 1) Determine the angle of twist of wheel B with respect to wheel A. Express your answer to three significant figures and include the appropriate units. BIA Submit Reques Provide Feedback Figure 〈 1011 〉 150 mm 450 mm 100 mm 150 mm 150 mm KN 10 kN 2 kN
pleas show work The rod is supported by smooth journal bearings at A and B that...
pleas show work
The rod is supported by smooth journal bearings at A and B that only exert vertical reactions on the shaft. Part A Determine its smallest diameter d if the allowable bending stress is ơallow-180 MPa. (Figure 1) Express your answer with the appropriate units d 0.186 SubmitP Figure 1 of 1 Incorrect, Try Again; 4 attempts remaining Provide Feedback Ne 12 kN/m 3 m 1.5 m
A rod is made from two segments: AB is steel and BC is brass. It is...
A rod is made from two segments: AB is steel and BC is brass. It is fixed at its ends and subjected to a torque of T = 615 Nm. The steel portion has a diameter of 30 mm c B 1.60 m A 0.75 m G t = 75GPa, Gb = 39 GPa Part A Determine the required diameter of the brass portion so the reactions at the walls will be the same. Express your answer to three significant...
Review The assembly consists of two 10-mm diameter red brass C83400 copper rods AB and CD, a 15-mm diameter 304 stainless steel rod EF, and a rig d bar G. The modulus of elasticity for red brass C83400 is 101 GPa, for 304 stainless steel 193 GPa. (Figure 1) Part A If the horizontal displacement of end F of rod EF is 0.46 mm, determine the magnitude of P. Express your answer to three significant figures and include the appropriate...
The two shafts are made of A-36 steel. Each has a diameter of 23 mm and they are connected using the gears fixed to their ends. Their other ends are attached to fixed supports at A and B. They are also supported by journal bearings at C and D, which allow free rotation of the shafts along their axes. A torque of 500 N·m is applied to the gear at E as shown in the figure below. The shear modulus...
The two shafts are made of A-36 steel. Each has a diameter of 23 mm and they are connected using the gears fixed to their ends. Their other ends are attached to fixed supports at A and B. They are also supported by journal bearings at C and D, which allow free rotation of the shafts along their axes. A torque of 500 N·m is applied to the gear at E as shown in the figure below. The shear modulus...
Problem 1.44 Review Part A All pins are in double shear, each has a diameter of 13 mm, and the average shear stress in each pin is not to exceed 95 MPa. (Figure 1) Determine the maximum magnitude P of the loads that the beam can support Express your answer to three significant figures and include appropriate units P 2810 kN Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining Figure 1 of 1 < Return to...
A 100-mm long rod has a diameter of 15 mm, Part A If an axial tensile load of 195 kN s applied, determine its change in length. Assume linear-elastic behavior with E = 200 GPa. Express your ahswer to three significant figures and include the appropriate units. ? Suomi Request Answer Provide Feedback
Fundamental Problem 5.10 The shaft has a diameter of 41 for which G- 75 GPa. mm and is made of steel Part A Figure 1) Determine the angle of twist of wheel B with respect to wheel A. Express your answer to three significant figures and include the appropriate units. BIA Submit Reques Provide Feedback Figure 〈 1011 〉 150 mm 450 mm 100 mm 150 mm 150 mm KN 10 kN 2 kN
pleas show work
The rod is supported by smooth journal bearings at A and B that only exert vertical reactions on the shaft. Part A Determine its smallest diameter d if the allowable bending stress is ơallow-180 MPa. (Figure 1) Express your answer with the appropriate units d 0.186 SubmitP Figure 1 of 1 Incorrect, Try Again; 4 attempts remaining Provide Feedback Ne 12 kN/m 3 m 1.5 m
A rod is made from two segments: AB is steel and BC is brass. It is fixed at its ends and subjected to a torque of T = 615 Nm. The steel portion has a diameter of 30 mm c B 1.60 m A 0.75 m G t = 75GPa, Gb = 39 GPa Part A Determine the required diameter of the brass portion so the reactions at the walls will be the same. Express your answer to three significant...
