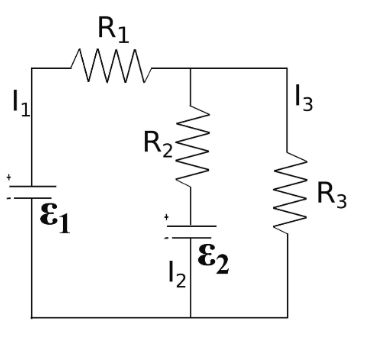

Consider the circuit diagram to the right, where ε1 = 14V, ε2 = 6V, R1 = 10 Ω, R2 = 18 Ω, and R3 = 16Ω. Make sure to draw the circuit on your work including the direction of the currents chosen.
a) Work out the equations using the junction rule for the circuit.
b) Work out the equations using the loop rule for the circuit.
c) work out the three currents for the circuit
d) what is the power delivered to each of the three resistors in the circuit.

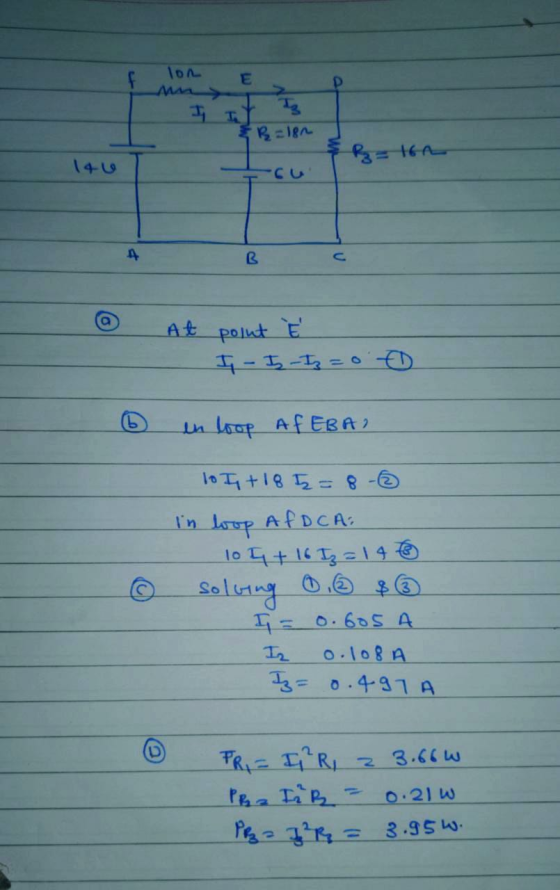

Homework Answers
Add Answer to:
Consider the circuit diagram to the right, where
ε1 = 14V,
ε2 = 6V, R1 =...
Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω.
Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω. Determine the magnitudes of the currents in each resistor shown in the figure. Ignore internal resistance of the batteries. Determine the directions of the currents in each resistor. Ignore internal resistance of the batteries.
A circuit that consists of 3 emf’s and 3 resistors as shown below. ε1=9 V, ε2=12...
A circuit that consists of 3 emf’s and 3 resistors as shown
below. ε1=9 V, ε2=12 V, ε3=25 V and R1=5 Ω, R2 = 25 Ω and R3 =40
Ω
What is the value of the current flowing through
R2?
R2 R33 22
Consider the following circuit of three resistors (R1, R2, and R3), with batteries that have emfs ε1 = 11 V and ε2 = 44.5 V, and internal resistances r1 and r2.
Consider the following circuit of three resistors (R1, R2, and R3), with batteries that have emfs ε1 = 11 V and ε2 = 44.5 V, and internal resistances r1 and r2.Part (a) Find the current I1, in amps.Part (b) Find the current I0, in amps.Part (c) Find the current I3 in amps.
Three resistors R1-81.3 Ω, R2-20.5 Ω, R3 = 70.0 Ω, and two batteries ε1-40.0 V, and...
Three resistors R1-81.3 Ω, R2-20.5 Ω, R3 = 70.0 Ω, and two batteries ε1-40.0 V, and ε2-360 v are connected as shown in the diagram below. Ri R2 R3 E2 (a) What current flows through R1, R2, and R3? 11 = (No Response). A 12 (No Response). A I3No Response) A (b) What is the absolute value of the potential difference across R1, R2, and R3? AVRiNo Response) V IAVRzl = (No Response) V AVR3(No Response) V
Find equations using Kirchhoffs laws to solve the currents in each branch of the following circuit....
Find equations using Kirchhoffs laws to solve the currents in
each branch of the following circuit. Show all the important steps
required in finding the equations. Solve the equations to calculate
the currents.You are allowed to use any valid method to solve the
equations.Consider ε1 = 20 V,
ε2 = 10.0 V, ε3 = 20 V,
R1 = 4.0 Ω, R2 = 10.0 Ω, R3 = 10.0
Ω, R4 = 4.0 Ω.
R4 ww R2 E & E2 w w...
Consider the electric circuit in the figure below with the following parameters: ε1= 24.00 V, ε2=...
Consider the electric circuit in the figure below with the
following parameters: ε1= 24.00 V, ε2= 12.00 V, R1= 700 Ω, R3= 200
Ω.
What is the potential at point A?
Calculate the current i1.
Calculate the current i3.
in t 13 in
In the figure ε1 = 5.14 V, ε2 = 12.7 V, R1 = 94.2 Ω, R2...
In the figure ε1 = 5.14 V, ε2 = 12.7 V,
R1 = 94.2 Ω, R2 = 185 Ω,
and R3 = 288 Ω. One point of the circuit is
grounded (V = 0). What are the (a) size
and (b) direction (up or down) of the current
through resistance 1, the (c) size and
(d) direction (left or right) of the current
through resistance 2, and the (e) size and
(f) direction of the current through resistance 3?
(g)...
Three resistors (R1 = 6 Ω, R2 = 20 Ω and R3 = 8 Ω) are...
Three resistors (R1 = 6 Ω, R2 = 20 Ω and
R3 = 8 Ω) are connected in a circuit as shown in the
figure. What is the magnitude of the current in the
R3 in the middle branch of the circuit
if ε1 = 8 V and ε2 = 20 V?
Hint: Use Kirchhoff's rules.
R & R3 E2 R2
A. Write Kirchhoff's loop rule (clockwise) for the circuit shown in (Figure 1). B. Determine the...
A. Write Kirchhoff's loop rule (clockwise) for the circuit shown
in (Figure 1).
B. Determine the current in the circuit for the case in which ε1
= 20.0 V, ε2 = 8.0 V, R1 = 30.0 Ω, R2 = 20.0 Ω, and R3 = 10.0
Ω.
C. Using this value of current, start at position A and move
clockwise around the circuit, calculating the electric potential
change across each element in the circuit (be sure to indicate the
sign of...
Ev Notes Timer Home Work #6 » Current through R1 Course Contents ... What is the magnitude of the current through R1? D...
Ev Notes Timer Home Work #6 » Current through R1 Course Contents ... What is the magnitude of the current through R1? DATA: R1 = R2 = R3= 24.0 2. Vi = 12.0 Volts. V2 = 2V1. V, R3 R2 >R1 2.00 A There are three unknown currents, therefore you need 3 equations. Use the loop rule twice, and also the junction rule for currents. Incorrect. Tries 2/10 Previous Tries Submit Answer
Ev Notes Timer Home Work #6 » Current...
A circuit that consists of 3 emf’s and 3 resistors as shown
below. ε1=9 V, ε2=12 V, ε3=25 V and R1=5 Ω, R2 = 25 Ω and R3 =40
Ω
What is the value of the current flowing through
R2?
R2 R33 22
Three resistors R1-81.3 Ω, R2-20.5 Ω, R3 = 70.0 Ω, and two batteries ε1-40.0 V, and ε2-360 v are connected as shown in the diagram below. Ri R2 R3 E2 (a) What current flows through R1, R2, and R3? 11 = (No Response). A 12 (No Response). A I3No Response) A (b) What is the absolute value of the potential difference across R1, R2, and R3? AVRiNo Response) V IAVRzl = (No Response) V AVR3(No Response) V
Find equations using Kirchhoffs laws to solve the currents in
each branch of the following circuit. Show all the important steps
required in finding the equations. Solve the equations to calculate
the currents.You are allowed to use any valid method to solve the
equations.Consider ε1 = 20 V,
ε2 = 10.0 V, ε3 = 20 V,
R1 = 4.0 Ω, R2 = 10.0 Ω, R3 = 10.0
Ω, R4 = 4.0 Ω.
R4 ww R2 E & E2 w w...
Consider the electric circuit in the figure below with the
following parameters: ε1= 24.00 V, ε2= 12.00 V, R1= 700 Ω, R3= 200
Ω.
What is the potential at point A?
Calculate the current i1.
Calculate the current i3.
in t 13 in
In the figure ε1 = 5.14 V, ε2 = 12.7 V,
R1 = 94.2 Ω, R2 = 185 Ω,
and R3 = 288 Ω. One point of the circuit is
grounded (V = 0). What are the (a) size
and (b) direction (up or down) of the current
through resistance 1, the (c) size and
(d) direction (left or right) of the current
through resistance 2, and the (e) size and
(f) direction of the current through resistance 3?
(g)...
Three resistors (R1 = 6 Ω, R2 = 20 Ω and
R3 = 8 Ω) are connected in a circuit as shown in the
figure. What is the magnitude of the current in the
R3 in the middle branch of the circuit
if ε1 = 8 V and ε2 = 20 V?
Hint: Use Kirchhoff's rules.
R & R3 E2 R2
A. Write Kirchhoff's loop rule (clockwise) for the circuit shown
in (Figure 1).
B. Determine the current in the circuit for the case in which ε1
= 20.0 V, ε2 = 8.0 V, R1 = 30.0 Ω, R2 = 20.0 Ω, and R3 = 10.0
Ω.
C. Using this value of current, start at position A and move
clockwise around the circuit, calculating the electric potential
change across each element in the circuit (be sure to indicate the
sign of...
Ev Notes Timer Home Work #6 » Current through R1 Course Contents ... What is the magnitude of the current through R1? DATA: R1 = R2 = R3= 24.0 2. Vi = 12.0 Volts. V2 = 2V1. V, R3 R2 >R1 2.00 A There are three unknown currents, therefore you need 3 equations. Use the loop rule twice, and also the junction rule for currents. Incorrect. Tries 2/10 Previous Tries Submit Answer
Ev Notes Timer Home Work #6 » Current...
