Consider the electric circuit in the figure below with the following parameters: ε1= 24.00 V, ε2=...

Question

Question

Consider the electric circuit in the figure below with the following parameters: ε1= 24.00 V, ε2= 12.00 V, R1= 700 Ω, R3= 200 Ω. in t 13 in

What is the potential at point A?

Calculate the current i₁.

Calculate the current i₃.

science physics

Answer 1

Answer #1

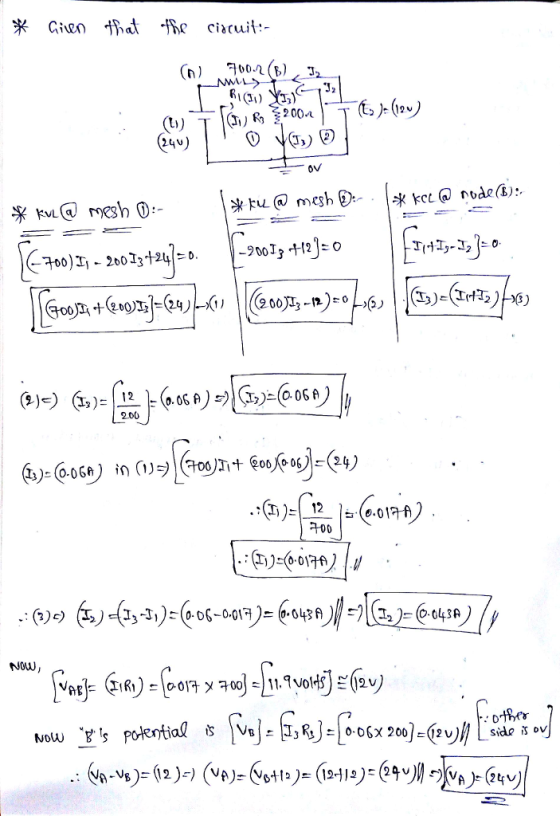

米トu @ mcshD. | * kce@ nao(s).. 200 ):@ose) in (リヲGghtfoo@osjęり 100 .:(n)s@om) ไป NOW

Answer 2

Similar Homework Help Questions

In the figure ε1 = 5.14 V, ε2 = 12.7 V, R1 = 94.2 Ω, R2...

In the figure ε1 = 5.14 V, ε2 = 12.7 V, R1 = 94.2 Ω, R2 = 185 Ω, and R3 = 288 Ω. One point of the circuit is grounded (V = 0). What are the (a) size and (b) direction (up or down) of the current through resistance 1, the (c) size and (d) direction (left or right) of the current through resistance 2, and the (e) size and (f) direction of the current through resistance 3? (g)...
Consider the following circuit of three resistors (R1, R2, and R3), with batteries that have emfs ε1 = 11 V and ε2 = 44.5 V, and internal resistances r1 and r2.

Consider the following circuit of three resistors (R1, R2, and R3), with batteries that have emfs ε1 = 11 V and ε2 = 44.5 V, and internal resistances r1 and r2.Part (a) Find the current I1, in amps.Part (b) Find the current I0, in amps.Part (c) Find the current I3 in amps.
A circuit that consists of 3 emf’s and 3 resistors as shown below. ε1=9 V, ε2=12...

A circuit that consists of 3 emf’s and 3 resistors as shown below. ε1=9 V, ε2=12 V, ε3=25 V and R1=5 Ω, R2 = 25 Ω and R3 =40 Ω What is the value of the current flowing through R2? R2 R33 22

In the figure ε1 = 2.73 V, ε2 = 1.22 V, R1 = 7.36 Ω, R2...

In the figure ε1 = 2.73 V, ε2 = 1.22 V, R1 = 7.36 Ω, R2 = 2.67 Ω, R3 = 5.83 Ω, and both batteries are ideal. What is the rate at which energy is dissipated in (a) R1, (b) R2, and (c) R3? What is the power of (d) battery 1 and (e) battery 2? R2
For the multi-loop circuit shown, which of the following equations correctly describes the circuit? (Give ALL...

For the multi-loop circuit shown, which of the following equations correctly describes the circuit? (Give ALL CORRECT answers, eg. B, AC, BCD ...) A) i1 = i3 + i2 B) i1 + i3 = i2 C) ε2 - ε3 = i2 R2 + i3 R3 D) ε3 - ε1 = i3 R3 - i1 R1 E) ε1 + ε2 = i1 R1 - i2 R2 F) ε1 + ε2 = i1 R1 + i2 R2 G) ε2 + ε3 =...
In the figure ε1 = 4.04 V, ε2 = 1.50 V, R1 = 4.38 Ω, R2...

In the figure ε1 = 4.04 V, ε2 = 1.50 V, R1 = 4.38 Ω, R2 = 2.36 Ω, R3 = 3.24 Ω, and both batteries are ideal. What is the rate at which energy is dissipated in (a) R1, (b) R2, and (c) R3? What is the power of (d) battery 1 and (e) battery 2? RL RY १४. Rs 81

Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω.

Consider the circuit shown in (Figure 1). The batteries have emfs of ε1 = 9.0 V and ε2 = 12.0 V and the resistors have values of R1 = 27Ω, R2 = 60 Ω, and R3 = 33 Ω. Determine the magnitudes of the currents in each resistor shown in the figure. Ignore internal resistance of the batteries. Determine the directions of the currents in each resistor. Ignore internal resistance of the batteries.
A. Write Kirchhoff's loop rule (clockwise) for the circuit shown in (Figure 1). B. Determine the...

A. Write Kirchhoff's loop rule (clockwise) for the circuit shown in (Figure 1). B. Determine the current in the circuit for the case in which ε1 = 20.0 V, ε2 = 8.0 V, R1 = 30.0 Ω, R2 = 20.0 Ω, and R3 = 10.0 Ω. C. Using this value of current, start at position A and move clockwise around the circuit, calculating the electric potential change across each element in the circuit (be sure to indicate the sign of...
In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50...

In the figure the ideal batteries have emfs ε1 = 150 V and ε2 = 50 V and the resistances are R1 = 3.0 Ω and R2 = 2.0 Ω. If the potential at P is defined to be 140 V, what is the potential at Q? R 181= 8,12 R2 P
