Question

Two-point charges are held at the corners of a rectangle as shown in the figure

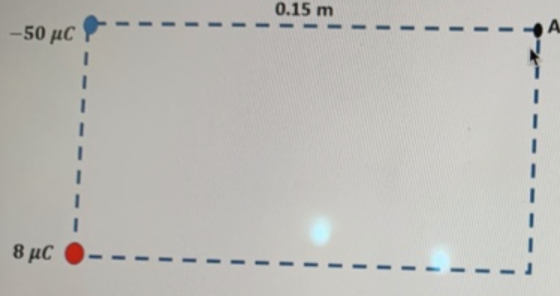

Two-point charges are held at the corners of a rectangle as shown in the figure. The lengths of sides of the rectangle are 0.05 m and 0.15 m. Determine the electric potential at the corner (A). Write your answer as 0.00E0.


science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

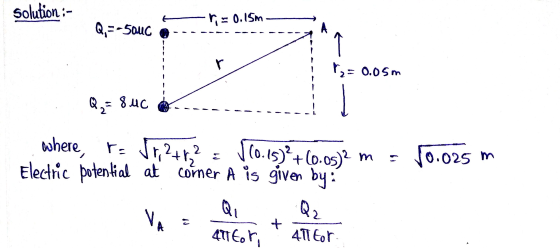

Answer #1

​​​​​​

1 0
Add a comment
Know the answer?
Add Answer to:
Two-point charges are held at the corners of a rectangle as shown in the figure
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • sensitive). 10 pts Question 19 Two-point charges are held at the corners of a rectangle as...

    sensitive). 10 pts Question 19 Two-point charges are held at the corners of a rectangle as shown in the figure. The lengths of sides of the rectangle are 0.050 m and 0.150 m. Assume that the electric potential is defined to be zero at infinity. What is the potential difference, Vp - Va, between corners A and B? 9.0r109 Nm? Equation: V = her where k = -5.0 LIC FIA - - BL - +2.0 LC 8.4 105 -8.4 x...

  • Two point charges are located at the top left and bottom right corners of a rectangle....

    Two point charges are located at the top left and bottom right corners of a rectangle. The rectangle is 0.05 m tall and 0.15 long such that the longer length of the rectangle lies along the x-axis. Assume that the electric potential is defined to be zero at infinity. Determine the electric potential at a point A located at the top right corner of the rectangle.

  • Three point-like charges are placed at the corners of a rectangle as shown in the figure,...

    Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 66.0 cm. Find the electric potential at the empty corner. Let q11 = +1.90 µC, q22 = +2.70 µC, q33 = −4.60 µC. 420-------------Qq 9,0 -----

  • 1. Three point-like charges are placed at the corners of a rectangle as shown in the...

    1. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 20.0 cm and b = 52.0 cm. Find the magnitude of the electric force exerted on the charge q33. Let q11 = +1.30 µC, q22 = +4.10 µC, q33 = −3.70 µC. 2. Two point-like charges are placed at the corners of a square as shown in the figure, a = 48.0 cm. Find the magnitude of the electric field at...

  • Three point-like charges are placed at the corners of a rectangle as shown in the figure,...

    Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 68.0 cm. Find the magnitude of the electric field at the empty corner. Let q 1 = +24.0 µC, q 2 = ?31.0 µC, q 3 = +35.0 µC. 5. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 680 cm. Find the...

  • Three point charges are placed at three of the corners of a rectangle as shown (...

    Three point charges are placed at three of the corners of a rectangle as shown ( the length is 0.9m and width is 0.4m). The charges are q1=-3μC, q2=4μC, and q3=2μC. a)How much work must you do to assemble this collection of charges? b) What is the electric potential at the fourth corner of the rectangle? c) How much work would we have to do to place a -11μC charge at the fourth corner of the rectangle?

  • Three point-like charges are placed at the corners of a rectangle as shown in the figure,...

    Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 38.0 cm and b = 56.0 cm. What is the electric potential at the center of the rectangle? Let q1 = q3 = +24.0 µC and q2 = −42.0 µC.

  • Three point-like charges are placed at the corners of a rectangle as shown in the figure,...

    Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 28.0 cm and b = 50.0 cm. What is the electric potential at the center of the rectangle? Let q1 = q3 = +31.0 µC and q2 = −30.0 µC. 93 q1

  • Three point-like charges are placed at the corners of a rectangle as shown in the figure,...

    Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 20.0 cm and b = 56.0 cm. Find the magnitude of the electric force exerted on the charge q 1 . Let q 1 = −1.20 µC, q 2 = −4.20 µC, q 3 = −5.20 µC. q1 is in top left corner q2 top right corner and q3 is bottom right corner

  • We study the three point charges shown in the figure. They are held at the corners...

    We study the three point charges shown in the figure. They are held at the corners of an equilateral triangle with ℓ = 0.8 m. What is the electric potential energy (in J) of the system of three point charges? Use for the three charges q1 = +2Q, q2 = −3Q, and q3 = +Q, where Q = 107 nC. 13 41
