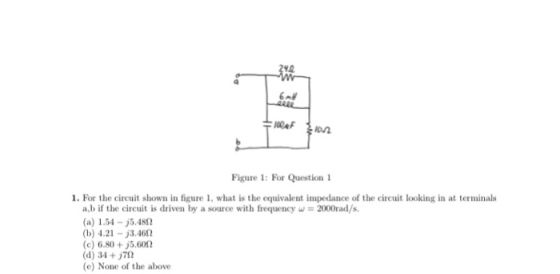

Figure 1: For Question 1 1. For the circuit shown in figure 1, what is the...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

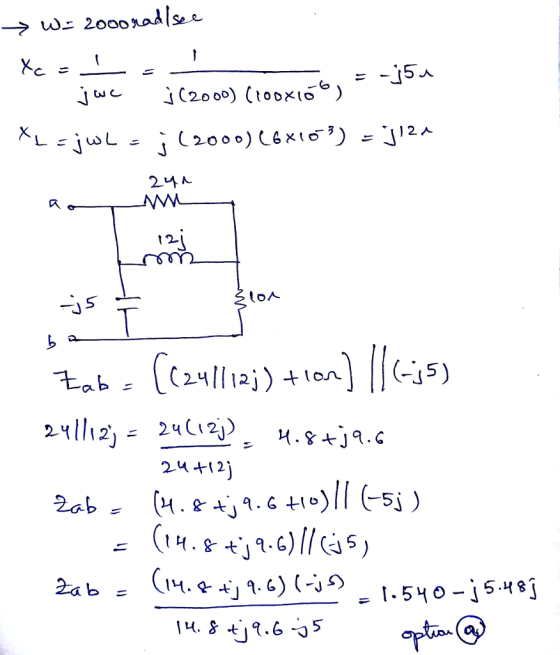

? u): 2000 24? 22) 4+ ton. = 1.5-10-1546

Answer 2

Similar Homework Help Questions

Question 1 For the circuit shown in figure 1; i. Find the transfer impedance function, H(s)...

Question 1 For the circuit shown in figure 1; i. Find the transfer impedance function, H(s) = Vds(s) Find the poles and zeros for this transfer function and plot them on the s - Find the magnitude of the transfer function in decibels. [10] s-plane [8] ii [3] 2H 20 20 2 H Figure Question 2 The hybrid parameters (h-parameters) for the two -port network circuit in figure 2 are; 5 h=2 0.05 Find the equivalent impedance parameters (z-parameters) Find...
2- A circuit across the terminals of a sinusoidal voltage source, as shown in Figure 2....

2- A circuit across the terminals of a sinusoidal voltage source, as shown in Figure 2. The steady-state expression for the source voltage is v;=50.cos(1000t+20). (40 points) 12 mH 100 MF 10 Figure 2 a) Construct the frequency-domain equivalent circuit. b) Calculate the steady-state current i by the phasor method.
Question 1. (a) Consider the waveform below that has a period of T of 0.04 seconds....

Question 1. (a) Consider the waveform below that has a period of T of 0.04 seconds. What is the rms voltage of this waveform? V(t) 15 V 0.01 s 0.02 s T=0.04s (b) The figure below shows a network of resistances and reactances having values as shown connected to a voltage source with a voltage of (50+0j) volts rms and an angular frequency of 1000 rad/s. А. 32 3 mH V 52 200 uF 2 mH 1 mH (i) Redraw...

The circuit shown in Figure Q4-1 includes an audio source and the equivalent circuit of a...

The circuit shown in Figure Q4-1 includes an audio source and the equivalent circuit of a loudspeaker that you have been asked to analyse. 4. a) Assuming the speaker is to operate at a single frequency of 200 Hz and is5 driven by a cosinusoidal signal with peak amplitude of 20 V; determine the equivalent impedance of the speaker When connected to the audio source, calculate the current flow i() When testing the loudspeaker detailed in Q4a) i), you can...
Question 35 (6 points) 35. For the circuit in the figure shown, (a) what is the...

Question 35 (6 points) 35. For the circuit in the figure shown, (a) what is the resonance frequency? (b) At resonance, what is the peak current through the circuit? (b) What is the average power delivered to the circuit by AC-source? 10 Ω (10 V)cos ( 21) 1.0 mH Shelll-w 1.Ο μF
Part C - Combine impedances in series and in parallel to simplify a circuit in the...

Part C - Combine impedances in series and in parallel to simplify a circuit in the frequency domain Consider the time-domain circuit shown here, which is a variation of the circuit from Paris A and B. The 100 22 resistor and the capacitance have been switched. Suppose we are able to adjust the frequency of the source by changing w, so the source is described as v(t) = 25 cos(ut - 30°) 2.5 UF 2002 VO 3 1002 350 mH...

1002 Figure 2: For Questions 8, 9, 10 For the circuit shown in Figure 2, Pi...

1002 Figure 2: For Questions 8, 9, 10 For the circuit shown in Figure 2, Pi = 80 W with pf = 0.8 lagging, |S2| = 60 VA with pf = 0.7 leading, S3 = 40 VA with pf = 0.6 leading, I = 0.4237ºArms). Note that subscripts specify the load, so P1 is the real power for Load 1, which has impedance 21. 8. Determine P. (a) 57 W (b) 42 W (c) 36.63 W (d) 84.14 W (e)...
QI. Using Source Conversion, determine I in the circuit shown in figure 1.1. R38 7 E=...

QI. Using Source Conversion, determine I in the circuit shown in figure 1.1. R38 7 E= 32 V A R$249 R 149 1 Figure 1.1 #) Find the equivalent resistance between A and B for the circuit shown in the Figure 1.2. 121 A R2 M 1.750 R5 1.50 w 1000 3.30 $1.50 RB w 7500
Consider the circuit shown in the figure below, where R = 5.60 Ω and ΔV =...

Consider the circuit shown in the figure below, where R = 5.60 Ω and ΔV = 10.0 V. (Due to the nature of this problem, do not use rounded intermediate values in your calculations—including answers submitted in WebAssign.) Consider the circuit shown in the figure below, where R = 5.60 Q and AV = 10.0 V. (Due to the nature of this problem, do not use rounded intermediate values in your calculations-including answers submitted in WebAssign.) 2.400 9.00 12 (a)...

whole question plz. I will give good feedback.:) 5. Shown below is an RC circuit driven...

whole question plz. I will give good feedback.:) 5. Shown below is an RC circuit driven by an AC power source. R Vp (a) Draw a phasor diagram representing this circuit. (b) Determine the magnitude of the impedance, 121. (c) Determine the phase of the impedance, oz. (d) Explain in a single sentence what the phase of the impedance means. (e) Let the resistance be R 1.0k2, the capacitance be C 0.5uF and the voltage source have an RMS voltage,...
