Homework Answers
Add Answer to:

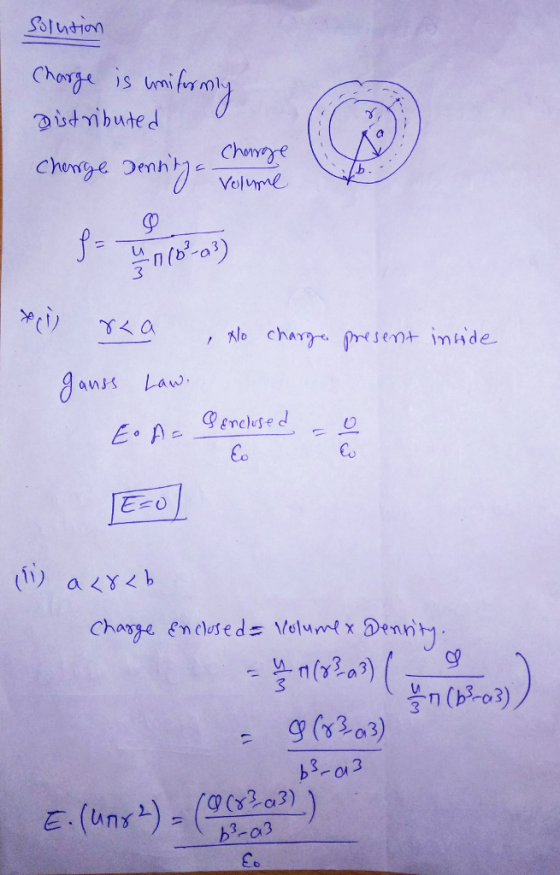

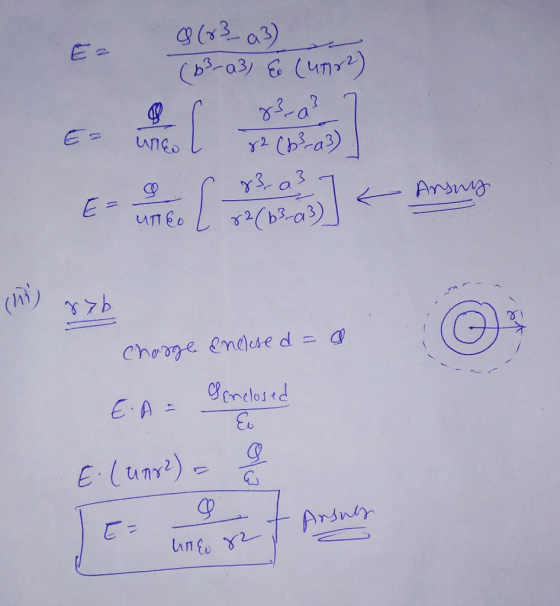

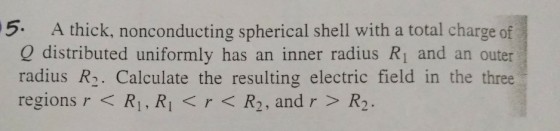

5. A thick, nonconducting spherical shell with a total charge of Q distributed uniformly has an...
this is a transcript of the question A nonconducting sphere of radius r0 is uniformly charged...
this is a transcript of the question A nonconducting sphere of radius r0 is uniformly charged with volume charge density ρE. It is surrounded by a concentric metal (conducting) spherical shell of inner radius r1 and outer radius r2, which carries a net charge+Q. Determine the resulting electric field in the regions r > r2. Express your answer in terms of some or all of the variables ρE, Q, r, r0, r1, r2, and appropriate constants. E(r>r2) =
11. A hollow spherical shell holds a total charge of Q, distributed evenly over the volume...
11. A hollow spherical shell holds a total charge of Q, distributed evenly over the volume of the shell, and has an inner radius of r1, with an outer radius of r2. Use Gauss Law to solve for the electric field. Which of the following expressions for electric field everywhere inside and outside the shell? 0,1 <ri EnQ(r3-r13) a) Ē = {49r2(r23 –r, 3)' 3 f, ra <r <r2 ef,r>r2 1 4tr2€ ( 0,r <ri 0, <r <r2 |_ef,r >...
2. A positive point charge +Q resides at the center of a conducting spherical shell of...
2. A positive point charge +Q resides at the center of a conducting spherical shell of inner radius R1, of outer radius R2, and of total charge -4Q. Use Gauss's law to find the charge on: (a) the inner surface at r=R1 and (b) the outer surface at r=R2. Find the magnitude and direction of the electricfield at a distance r from the point charge: (c) for r<R1,(d) for R1<r<R2, and (e) for r>R2. Draw a diagram showing all charges...
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with...
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with inner radius R2 and outer radius R3 and with the same center point as the central sphere. The central sphere has charge density p yr3, where r is the distance from the common center of the sphere and shell. The conducting shell has charge Q. Find the magnitude of the electric field as a function of r in the following regions: R2 (a)r s...
4) A very LONG hollow cylindrical conducting shell (in electrostatic equilibrium) has an inner radius R1 and an outer radius R2 with a total charge -5Q distributed uniformly on its surfaces. Asume th...
4) A very LONG hollow cylindrical conducting shell (in electrostatic equilibrium) has an inner radius R1 and an outer radius R2 with a total charge -5Q distributed uniformly on its surfaces. Asume the length of the hollow conducting cylinder is "L" and L>R1 and L>> R2 The inside of the hollow cylindrical conducting shell (r < R1) is filled with nonconducting gel with a total charge QGEL distributed as ρ-Po*r' ( where po through out the N'L.Rİ volume a) Find...
A thick-walled spherical shell of charge Q and uniform charge density ρ is bounded by radii...
A thick-walled spherical shell of charge Q and uniform charge density ρ is bounded by radii r1 and r2 > r1. With V = 0 at infinity, find the electric potential V as a function of distance r from the center of the distribution, considering the three regions: (a) r > r2 (b) r2 > r > r1 (c) r < r1 Finally, comment on whether these solutions agree with each other at r = r1 and r = r2.
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with...
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with inner radius Ri 9. 0 cm and outer radius R2 10.0 cm. A point chargeq-b HC is placed at the center of the cavity. The magnitude of the electric field at a point cm f r = c from the center is
A total charge of Q=7.33 μC is evenly distributed throughout a plastic spherical shell with an...
A total charge of Q=7.33 μC is evenly distributed throughout a plastic spherical shell with an inner radius of r1=0.199 m and an outer radius of r2=0.581 m.. The shell is centered at the origin (xc=0, yc=0, zc=0). Calculate the magnitude of the electric field at the location (x=0 m, y=0 m, z=2.57 m). The answer is in N/C.
A spherical shell with a charge of 3.8 µC uniformly distributed throughout the shell has an...
A spherical shell with a charge of 3.8 µC uniformly distributed throughout the shell has an inner surface with radius of 4.0 cm and outer surface with radius of 5.0 cm. Use Gauss’s Law to find the electric field a. 1.0 cm from the inner surface, inside the shell. b. halfway between the two surfaces. c. 5.0 cm from the outer surface, outside the shell.
Which of the following charge distributions can be accurately replaced by a single charge of magnitude...
Which of the following charge distributions can be accurately replaced by a single charge of magnitude Q at the origin (x=0,y=0,z=0) for the purposes of calculating the electric field at the location (x=0m,y=0m,z=2m). a) a small solid sphere of radius r=0.5m and with a uniformly distributed charge of Q b) a large solid sphere of radius r=4m a uniformly distributed charge of Q c) a small spherical shell of inner radius r1=0.3m, outer radius r2=0.5m, and a uniformly distributed charge...
11. A hollow spherical shell holds a total charge of Q, distributed evenly over the volume of the shell, and has an inner radius of r1, with an outer radius of r2. Use Gauss Law to solve for the electric field. Which of the following expressions for electric field everywhere inside and outside the shell? 0,1 <ri EnQ(r3-r13) a) Ē = {49r2(r23 –r, 3)' 3 f, ra <r <r2 ef,r>r2 1 4tr2€ ( 0,r <ri 0, <r <r2 |_ef,r >...
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with inner radius R2 and outer radius R3 and with the same center point as the central sphere. The central sphere has charge density p yr3, where r is the distance from the common center of the sphere and shell. The conducting shell has charge Q. Find the magnitude of the electric field as a function of r in the following regions: R2 (a)r s...
4) A very LONG hollow cylindrical conducting shell (in electrostatic equilibrium) has an inner radius R1 and an outer radius R2 with a total charge -5Q distributed uniformly on its surfaces. Asume the length of the hollow conducting cylinder is "L" and L>R1 and L>> R2 The inside of the hollow cylindrical conducting shell (r < R1) is filled with nonconducting gel with a total charge QGEL distributed as ρ-Po*r' ( where po through out the N'L.Rİ volume a) Find...
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with inner radius Ri 9. 0 cm and outer radius R2 10.0 cm. A point chargeq-b HC is placed at the center of the cavity. The magnitude of the electric field at a point cm f r = c from the center is
