Homework Answers
Add Answer to:

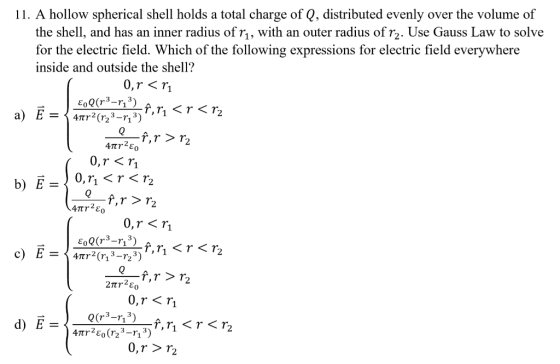

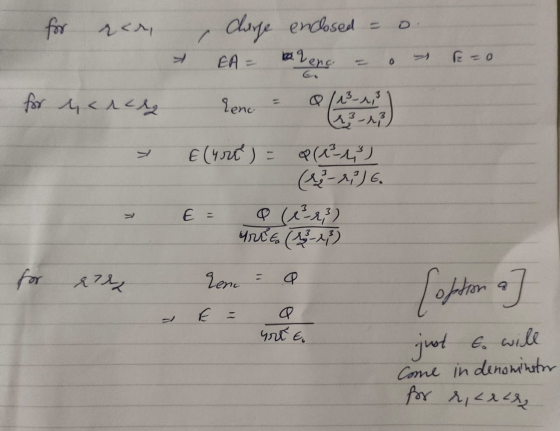

11. A hollow spherical shell holds a total charge of Q, distributed evenly over the volume...
5. A thick, nonconducting spherical shell with a total charge of Q distributed uniformly has an...
5. A thick, nonconducting spherical shell with a total charge of Q distributed uniformly has an inner radius R1 and an outer radius R2. Calculate the resulting electric field in the three regions r<RI, RL<r<R2, and r > R2
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with...
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with inner radius R2 and outer radius R3 and with the same center point as the central sphere. The central sphere has charge density p yr3, where r is the distance from the common center of the sphere and shell. The conducting shell has charge Q. Find the magnitude of the electric field as a function of r in the following regions: R2 (a)r s...
3. (8 points) Consider a conducting sphere with total electric charge +Q with radius Rị centered...
3. (8 points) Consider a conducting sphere with total electric charge +Q with radius Rị centered at p= 0 (spherical coordinates). The surface charge at r = R1 is spread uniformly on this spherical surface. There is also an outer conducting shell of radius r = R2, centered at r = 0 and with total electric charge - Q also spread uniformly on the surface. This arrangement of separated positive and negative charge forms a capacitor. We will assume that...
A total charge of Q=7.33 μC is evenly distributed throughout a plastic spherical shell with an...
A total charge of Q=7.33 μC is evenly distributed throughout a plastic spherical shell with an inner radius of r1=0.199 m and an outer radius of r2=0.581 m.. The shell is centered at the origin (xc=0, yc=0, zc=0). Calculate the magnitude of the electric field at the location (x=0 m, y=0 m, z=2.57 m). The answer is in N/C.
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with...
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with inner radius Ri 9. 0 cm and outer radius R2 10.0 cm. A point chargeq-b HC is placed at the center of the cavity. The magnitude of the electric field at a point cm f r = c from the center is
A hollow non-conducting spherical shell has inner radius R1 = 8 cm and outer radius R2 = 17 cm. A charge Q =-35 nC lies at the center of the shell
Problem 9: A hollow non-conducting spherical shell has inner radius R1 = 8 cm and outer radius R2 = 17 cm. A charge Q =-35 nC lies at the center of the shell. The shell carries a spherically symmetric charge density p = Ar for R1 < r < R2 that increases linearly with radius, where A = 24 uC/m4 .Part(a) Write an equation for the radial electric field in the region r < R1 in terms of Q.r, and Coulomb's...
2. A positive point charge +Q resides at the center of a conducting spherical shell of...
2. A positive point charge +Q resides at the center of a conducting spherical shell of inner radius R1, of outer radius R2, and of total charge -4Q. Use Gauss's law to find the charge on: (a) the inner surface at r=R1 and (b) the outer surface at r=R2. Find the magnitude and direction of the electricfield at a distance r from the point charge: (c) for r<R1,(d) for R1<r<R2, and (e) for r>R2. Draw a diagram showing all charges...
A hollow insulating spherical shell of inner radius R0 and outer radius R1 is positively charged with a charge density of p(r) = p0(1 – (r/R1)3).
A hollow insulating spherical shell of inner radius R0 and outer radius R1 is positively charged with a charge density of p(r) = p0(1 – (r/R1)3). A positive charge +Q is placed in the center of the hollow sphere and a concentric grounded conducting shell with inner radius R2 and outer radius R3 surrounds the hollow sphere. (The conducting shell was neutral before it is grounded.) (a) What is the total charge on the insulating sphere? (b) What charges are on the...
A point charge q is located at the center of a spherical shell of radius a...
A point charge q is located at the center of a spherical shell of radius a that has a charge -q uniformly distributed on its surface. Find the electric field for the following points: (a) for all points outside the spherical shell E = kq/r2 E = kq2/r2 E = q/4pr2 none of these E = 0 (b) for a point inside the shell a distance r from the center E = q/4pr2 E = kq2/r2 E = kq/r2 E...
A point charge q is located at the center of a spherical shell of radius a...
A point charge q is located at the center of a spherical shell of radius a that has a charge −q uniformly distributed on its surface. Find the electric field for the following points: (a) for all points outside the spherical shell E = q/4πr2 E = 0 E = kq2/r2 E = kq/r2 none of these (b) for a point inside the shell a distance r from the center E = kq2/r2 E = kq/r2 E = q/4πr2 none...
5. A thick, nonconducting spherical shell with a total charge of Q distributed uniformly has an inner radius R1 and an outer radius R2. Calculate the resulting electric field in the three regions r<RI, RL<r<R2, and r > R2
3. A solid spherical insulator with radius Ry is surrounded by a conducting spherical shell with inner radius R2 and outer radius R3 and with the same center point as the central sphere. The central sphere has charge density p yr3, where r is the distance from the common center of the sphere and shell. The conducting shell has charge Q. Find the magnitude of the electric field as a function of r in the following regions: R2 (a)r s...
3. (8 points) Consider a conducting sphere with total electric charge +Q with radius Rị centered at p= 0 (spherical coordinates). The surface charge at r = R1 is spread uniformly on this spherical surface. There is also an outer conducting shell of radius r = R2, centered at r = 0 and with total electric charge - Q also spread uniformly on the surface. This arrangement of separated positive and negative charge forms a capacitor. We will assume that...
Q 18.38: A charge Q = a μC is placed on a conducting spherical shell with inner radius Ri 9. 0 cm and outer radius R2 10.0 cm. A point chargeq-b HC is placed at the center of the cavity. The magnitude of the electric field at a point cm f r = c from the center is
