Consider a parallel plate capacitor that stores 100 pC of charge when 29.0 V are applied...

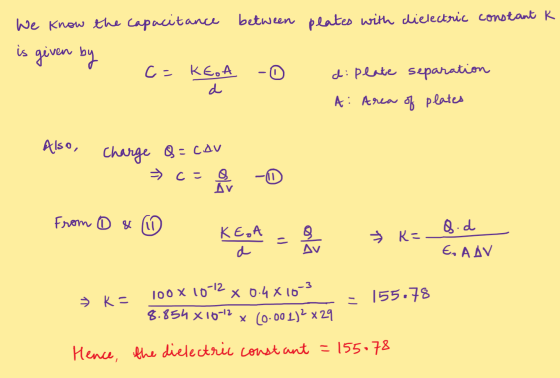

Consider a parallel plate capacitor that stores 100 pC of charge when 29.0 V are applied across it. The dielectric used in this capacitor is called Bakelite which has a range of values for the dielectric constant. If the plates of this capacitor are 1.00 mm squares and they are separated by 0.400 mm , what is the dielectric constant of this Bakelite?
Homework Answers
Please upvote the answer and for any further assistance please comment below, thank you!
