A parallel-plate capacitor has an area of 5.10 cm^2 and the plates are separated by 1.20...

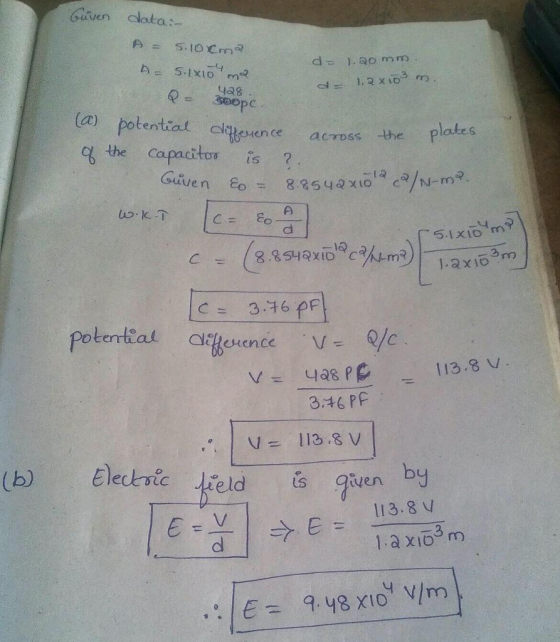

A parallel-plate capacitor has an area of 5.10 cm^2 and the plates are separated by 1.20 mm. The capacitor stores a charge of 428.0 pC.
A.) What is the potential difference across the plates of the capacitor? The permitivity of a vacuum is 8.8542 × 10−12 C 2 /N · m^2 . Answer in units of V.
B.) What is the magnitude of the uniform electric field in the region that is located between the plates? Answer in units of V/m.
Homework Answers
Add Answer to:
A parallel-plate capacitor has an area of 5.10 cm^2 and the
plates are separated by 1.20...
A)A parallel-plate capacitor has an area of 5.40 cm2 and the plates are separated by 0.800...
A)A parallel-plate capacitor has an area of 5.40 cm2 and the plates are separated by 0.800 mm. The capacitor stores a charge of 386.0 pC. What is the potential difference across the plates of the capacitor? The permittivity of a vacuum is 8.8542 × 10−12 C 2/N · m2 Answer in units of V. B) What is the magnitude of the uniform electric field in the region that is located between the plates? Answer in units of V/m.
An air-filled parallel-plate capacitor has plates of area 2.80 cm^2 separated by 2.50 mm. The capacitor...
An air-filled parallel-plate capacitor has plates of area 2.80 cm^2 separated by 2.50 mm. The capacitor is connected to a(n) 17.0 V battery. Find the value of its capacitance. _____ pF What is the charge on the capacitor? ______ pC What is the magnitude of the uniform electric field between the plates ___________ N/C
An air-filled parallel-plate capacitor has plates of area 2.70 cm2 separated by 0.50 mm. The capacitor...
An air-filled parallel-plate capacitor has plates of area 2.70 cm2 separated by 0.50 mm. The capacitor is connected to a 6.0-V battery. (a) Find the value of its capacitance. ________ pF (b) What is the charge on the capacitor? ________ pC (c) What is the magnitude of the uniform electric field between the plates? ________ V/m
An air-filled parallel-plate capacitor has plates of area 2.10 cm2 separated by 1.00 mm. The capacitor...
An air-filled parallel-plate capacitor has plates of area 2.10 cm2 separated by 1.00 mm. The capacitor is connected to a 24.0-V battery. (a) Find the value of its capacitance. pF (b) What is the charge on the capacitor? pC (c) What is the magnitude of the uniform electric field between the plates? V/m
A parallel plate capacitor has metal plates, each of area 1.25 m2, separated by 1.20 mm....
A parallel plate capacitor has metal plates, each of area 1.25 m2, separated by 1.20 mm. What charge (in µC) is stored in this capacitor if a voltage of 2.50 ✕ 103 V is applied to it?
An air-filled parallel-plate capacitor has plates of area 2.50 cm2 separated by 3.00 mm. The capacitor...
An air-filled parallel-plate capacitor has plates of area 2.50 cm2 separated by 3.00 mm. The capacitor is connected to a 21.0-V battery. (a) Find the value of its capacitance. (b) What is the charge on the capacitor? (c) What is the magnitude of the uniform electric field between the plates?
An air-filled capacitor consists of two parallel plates, each with an area of 7.60 cm2, separated...
An air-filled capacitor consists of two parallel plates, each with an area of 7.60 cm2, separated by a distance of 1.80 mm. If a 17.0 V potential difference is applied to these plates, calculate the following. (a) the electric field between the plates _______ kV/m (b) the capacitance _______ pF (c) the charge on each plate _______ pC
An air-filled parallel-plate capacitor has plates of area 2.90 cm2 separated by 2.60 mm. The capacitor...
An air-filled parallel-plate capacitor has plates of area 2.90 cm2 separated by 2.60 mm. The capacitor is connected to a(n) 17.0 V battery. (a) Find the value of its capacitance. _____pF (b) What is the charge on the capacitor? _____pC (c) What is the magnitude of the uniform electric field between the plates? ______N/C
An air-filled capacitor consists of two parallel plates, each with an area of 7.60 cm2, separated...
An air-filled capacitor consists of two parallel plates, each with an area of 7.60 cm2, separated by a distance of 2.20 mm. If a 21.2-V potential difference is applied to these plates, calculate the following. (a) the electric field between the plates magnitude kV/m direction (b) the capacitance pF (c) the charge on each plate pC
An air-filled, parallel plate capacitor has plates of area A = .006 [m^2] and are separated...
An air-filled, parallel plate capacitor has plates of area A = .006 [m^2] and are separated by a distance d = 3.5 [mm]. The plates have equal, but opposite charges of Q = .025 [mu C]. Find: sigma, surface charge density E, electric field V, voltage C, capacitance.
An air-filled parallel-plate capacitor has plates of area 2.80 cm^2 separated by 2.50 mm. The capacitor is connected to a(n) 17.0 V battery. Find the value of its capacitance. _____ pF What is the charge on the capacitor? ______ pC What is the magnitude of the uniform electric field between the plates ___________ N/C
An air-filled, parallel plate capacitor has plates of area A = .006 [m^2] and are separated by a distance d = 3.5 [mm]. The plates have equal, but opposite charges of Q = .025 [mu C]. Find: sigma, surface charge density E, electric field V, voltage C, capacitance.
