An air-filled capacitor consists of two parallel plates, each with an area of 7.60 cm2, separated...

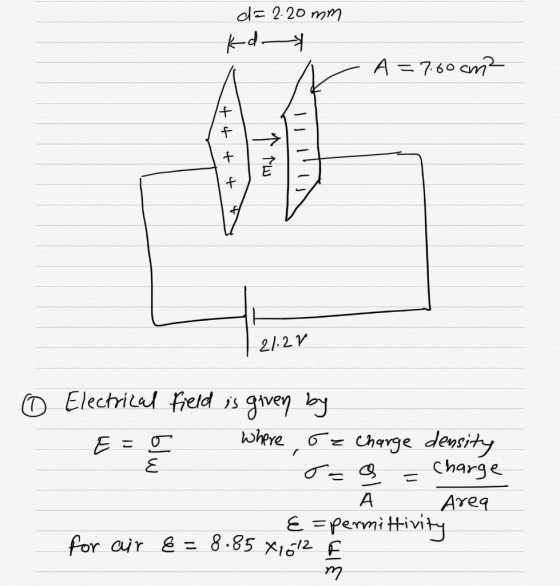

An air-filled capacitor consists of two parallel plates, each with an area of 7.60 cm2, separated by a distance of 2.20 mm. If a 21.2-V potential difference is applied to these plates, calculate the following.

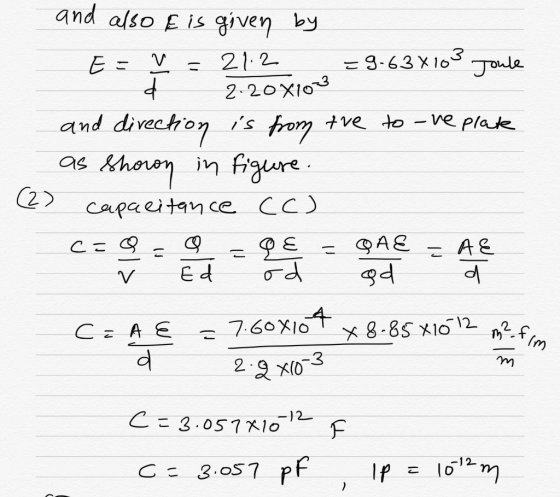

(a) the electric field between the plates magnitude kV/m direction
(b) the capacitance pF

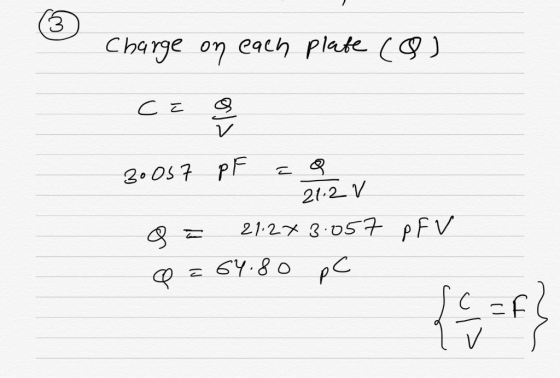

(c) the charge on each plate pC
Homework Answers
