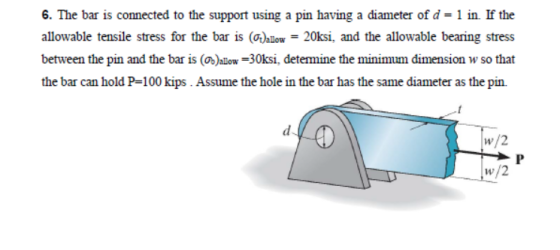

The bar is connected to the support using a pin having a
diameter of d = 1 in. If the allowable tensile stress for the bar
is (σt)allow = 20ksi, and the allowable bearing stress between the
pin and the bar is (σb)allow =30ksi, determine the minimum
dimension w so that the bar can hold P=100 kips . Assume the hole
in the bar has the same diameter as the pin.
pin.
Homework Answers

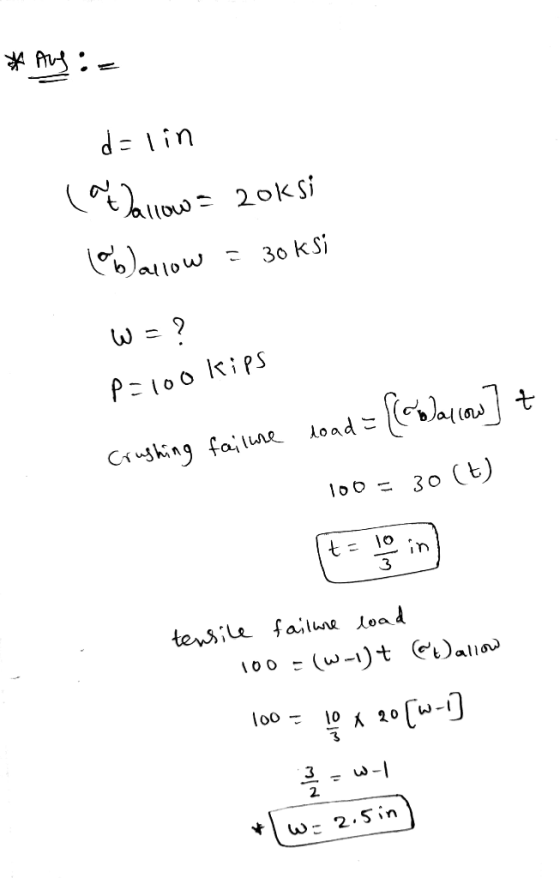

![* Ang := d=lin ( allow = zoksi allow = 30 ksi W=? P=100 kips Crushing failure load = {( allow] = 100 = 30 (6) tensile failure](http://img.homeworklib.com/questions/7d97feb0-44b9-11eb-8969-63521645c456.png?x-oss-process=image/resize,w_560)
